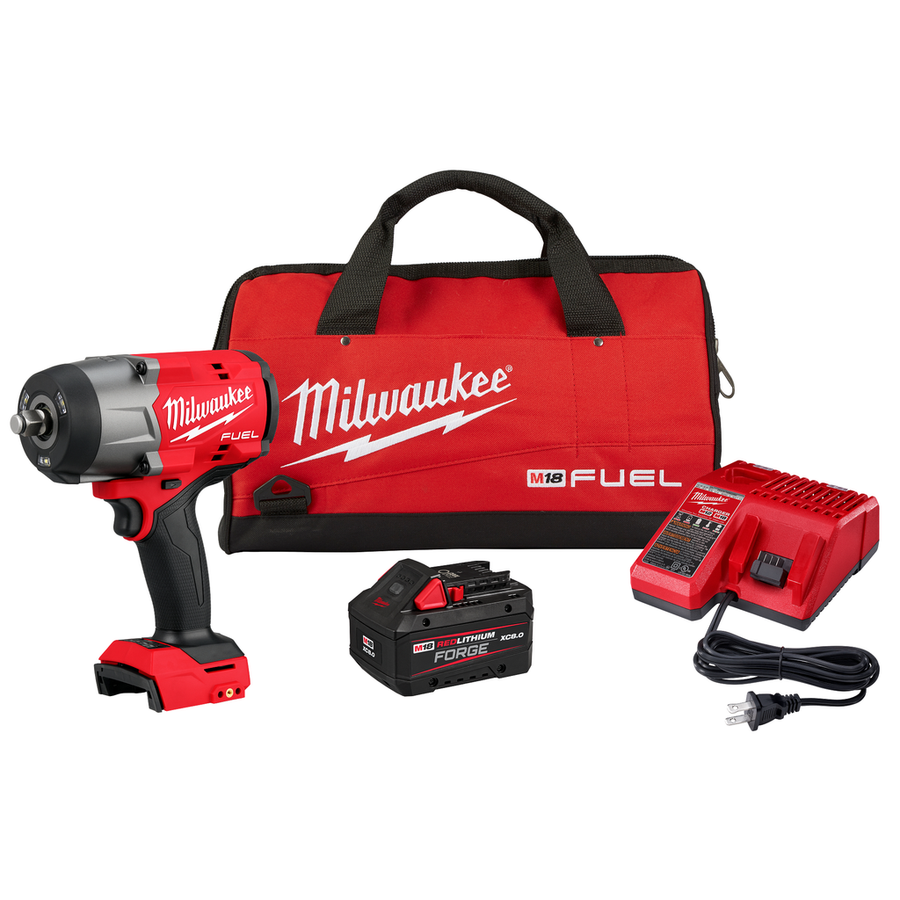

M18 FUEL™ 1/2" High Torque Impact Wrench w/ Friction Ring REDLITHIUM™ FORGE™ Kit

The MILWAUKEE® M18 FUEL™ ½” High Torque Impact Wrench w/ Friction Ring is the most power-dense impact wrench in its class, provides greater access in tight spaces, and maximizes productivity through faster removal speeds. The POWERSTATE™ Brushless Motor delivers up to 1,200 ft-lbs of Fastening Torque and 1,600 ft-lbs of Nut-Busting Torque when paired with the M18™ REDLITHIUM™ FORGE™ Batteries, while the compact size at 7.6" in length gives users greater access in tight spaces. The M18 FUEL™ ½” High Torque Impact Wrench w/ Friction Ring maximizes productivity on the jobsite and in the shop by removing stubborn bolts and fasteners faster than cordless competitors. The patented battery isolation system provides a secure battery connection and controls vibration transmitted to the pack. Tri-LEDs surround the anvil to deliver brighter light with fewer shadows. 4-Mode DRIVE CONTROL™ offers greater precision with a range of pre-set RPM and IPM levels, selectable from a single button on the tool. By selecting Mode 4, AUTO SHUT-OFF™ control applies no more than 50 ft-lbs of torque for hand-tight fastening applications to prevent overtightening. Mode 4 also features Bolt Removal Control that delivers user's full torque output, then decreases RPMs once the bolt is loosened to prevent fastener drops. The included M18™ REDLITHIUM™ FORGE™ XC6.0 Battery Pack delivers you HIGH OUTPUT™ HD12.0 power in a smaller size, 15min supercharge to 80%, and longest life vs. REDLITHIUM™ batteries.

Features

• Tri-LEDs deliver high definition lighting to increase workspace visibility with less shadows
• Up to 2" Shorter Length. 7.6" in length provides most access in tight spaces.
• POWERSTATE™ Brushless Motor delivers up to 1,200 ft-lbs of Fastening Torque & 1,600 ft-lbs of Nut-Busting Torque w/ M18™ REDLITHIUM™ FORGE™ XC8.0 Battery
• Patented battery isolation system ensures a secure battery connection and controls vibration transmitted to the pack
• AUTO-SHUTOFF™ control prevents over tightening and increases productivity by applying no more than 50 ft-lbs of torque
• Most Power Dense - Best Combination of Power and Size.
• Compatible with all M18™ batteries & chargers
• 4-Mode DRIVE CONTROL™ provides greater control over output speed and power. Includes auto shut-off and bolt-removal mode
• REDLINK PLUS™ Intelligence: Ensures maximum performance and protects from overloads, heating, and over-discharge.
• Friction ring (hog ring) ensures quick and easy socket changes
• Bolt removal mode provides maximum nut-busting torque to break fastener free, then slows to 750 RPM for more control when removing fasteners
• Fastest Removal Speeds. Maximize productivity on the jobsite and in the shop.
• Mode 1 IPMs: 0 - 1,300; Mode 2 IPMs: 0 - 2,200; Mode 3 IPMs: 0 - 2,400; Mode 4 IPMs: 0 - 2,400
• M18™ REDLITHIUM™ FORGE™ XC8.0 Battery Pack delivers HIGH OUTPUT™ 12.0 power in a smaller size, high-speed cooling for less downtime in high-demand applications, 35-minute supercharge to 80%, and the longest life vs REDLITHIUM™ batteries.

Specifications

• Depth: 7.6 Inches
• Motor Type: POWERSTATE™ Brushless
• Color Finish: Black;Red
• Wrench Type: High Torque
• DRIVE CONTROL: 4-Mode w/ Auto Shut-Off Mode & Bolt Removal Mode
• Power Tool Branding: FUEL™
• Impacts Per Minute Range (IPM): 0 - 2,400
• Anvil Type: Friction Ring
• Chuck Type: Not Applicable
• Fastening Torque: 1200
• Weight - Battery Installed (lb): 8.3
• Rotations Per Minute Range (RPM): 0 - 2,000
• ONE-KEY Enabled: No
• Country of Origin: Vietnam
• Number of Batteries Required: 1
• Brushless Motor: Yes
• Battery System: M18™
• Battery Amp Hour (Ah): 8
• Weight Excluding Battery (lb): 5.9
• Anvil Size: 1/2 in
• Material: Glass Filled Nylon
• FUEL: Yes
• Chuck Size: Not Applicable in
• Voltage: 18
