M12™ Green 360° 3-Plane Laser Kit

The Milwaukee M12 Green 360° 3-Plane Laser (3632-21) projects three 360° planes — one horizontal and two vertical lines — for alignment, leveling, squaring, and point transfers across large spaces with a single tool. This is the kit configuration, so it ships with an M12 battery and charger. The high-intensity green beam is visible up to 250 ft in diameter for long-range layout, and the tool runs on the M12 REDLITHIUM system for 15+ hours of continuous runtime when paired with an M12 REDLITHIUM 4.0 XC battery.

What it does well

• Three 360° planes (horizontal plus two vertical) for full-room layout, leveling, and plumb transfers from one setup
• Accuracy of ±1/8" @ 33 ft with a 125 ft working range, extending to 165 ft when used with a detector
• Self-leveling within ±4° of tilt, with a micro-control bracket that pivots on the plumb point for fine alignment
• Amplified rare earth magnets hold to steel studs without sliding, plus an integrated hang hole; 1m impact resistance and IP54 water/dust rating

Is this the right laser for you?

Choose this laser if you lay out interiors, drop ceilings, walls, or fixtures and want all three planes at once from a single tool. The green beam reads more easily in bright interior conditions than a comparable red beam, and if you already run M12 tools the battery platform is shared. It is rated for indoor and job-site conditions rather than long-range exterior grading.

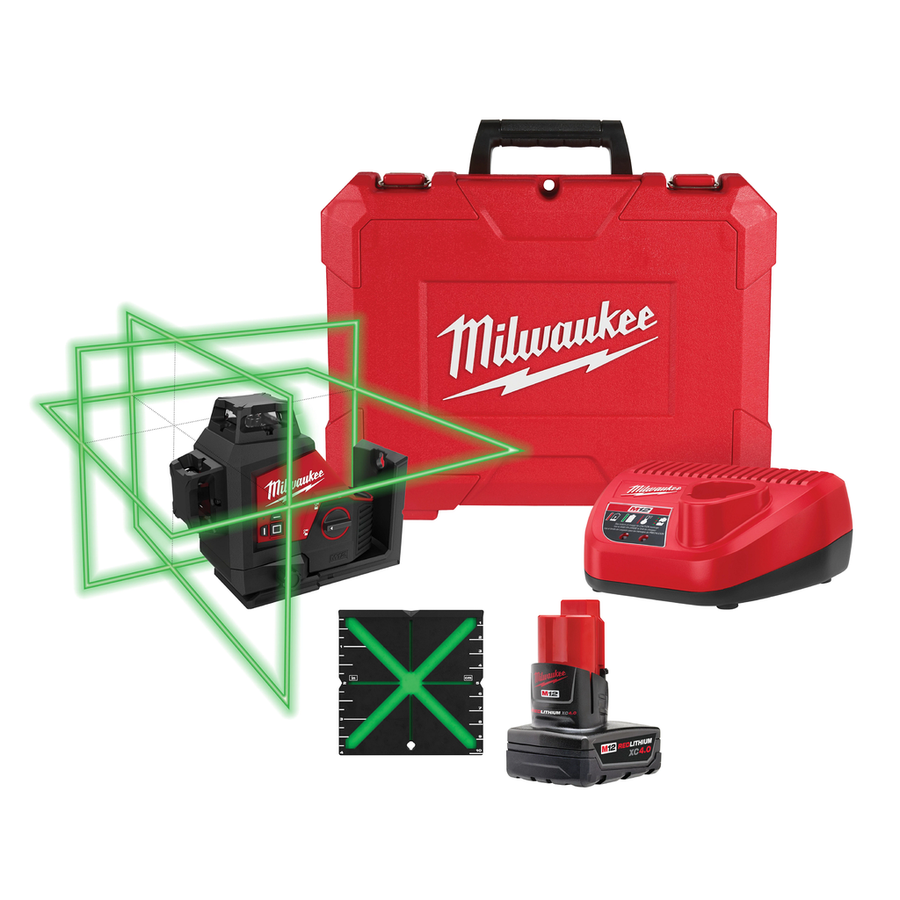

What's in the box

• M12 Green 360° 3-Plane Laser (3632-21)
• M12 battery and charger
• Integrated pivot bracket with micro control and magnets
