Milwaukee 2268-20NST 12:1 Infrared Temp-Gun with NIST Certification
$259.00
Order today
Check today's shelf: (217) 793-2940
Free shipping on orders over $199. Free pickup in Springfield and Jacksonville.
Shipping, pickup & returns
- Free shipping over $199Under that, rates are calculated at checkout.
- Free in-store pickupSpringfield or Jacksonville. In-stock tools are ready as soon as you order, during store hours.
- Full Milwaukee factory warrantyWe are an authorized dealer, so your warranty is valid.
- 30-day returnsUnused and in the original box.
- Questions? Talk to a person217-793-2940 - Mon-Thu 7-4:30, Fri 7-4
Details

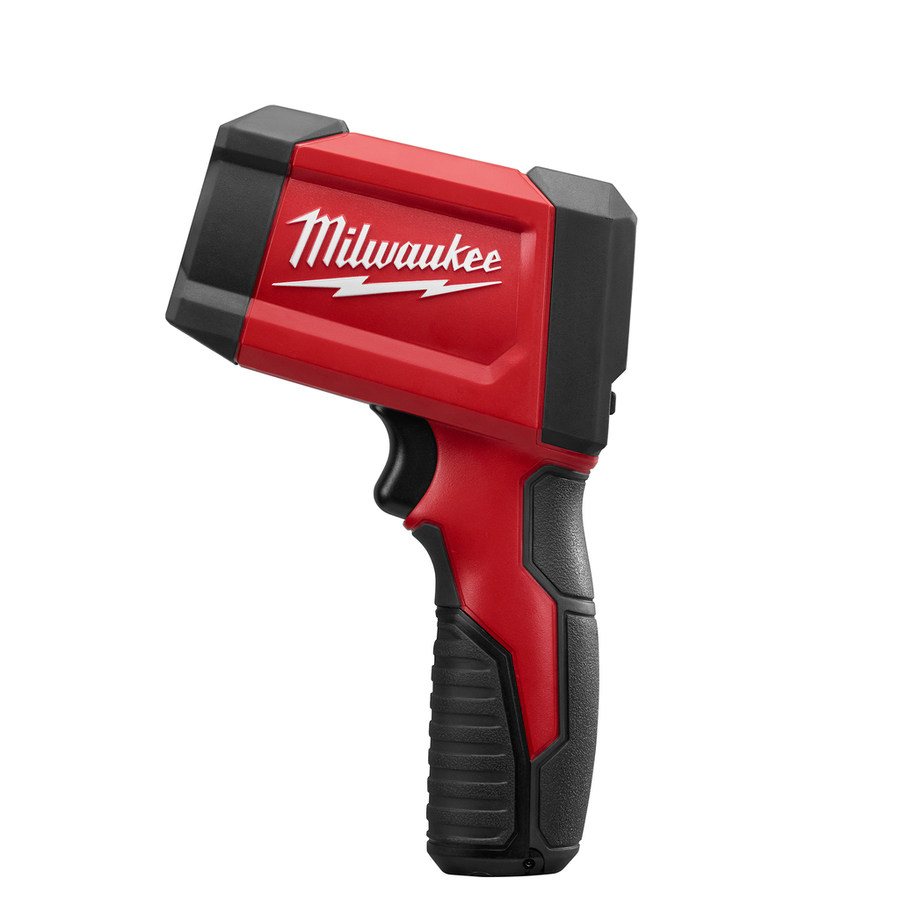

The Milwaukee 2268-20NST is a 12:1 infrared Temp-Gun that comes with NIST certification. It reads surface temperature without contact from -22°F to 1022°F, and its 12:1 distance-to-spot ratio means it measures a 1' spot from 12' away.
What it does
- Five reading modes: Hold, Max, Min, Avg and Diff, for freezing a reading, tracking highs and lows, averaging, and comparing two surfaces.
- High/low alert: you set the temperature limits, and the gun alerts you when a reading falls outside them.
- Clear display: a premium LCD for easy-to-read results, with simple button functions and quick setup.
- Built for drops: a fully bumpered nose and a shielded LCD, rated to survive 6' drops.
- Overmolded grip: easier to hold on to while you work.
Is this the right one for you?
Choose the 2268-20NST when your job, customer or quality program asks for a NIST-certified instrument. Mind your distance: at 12:1 the measured spot grows as you back away (1' across at 12'), so move closer when the target is small. Emissivity is fixed at 0.95 and can't be adjusted, so keep that in mind for the surfaces you measure. The range runs from -22°F to 1022°F; anything outside that span needs a different instrument.
Specifications
| Model | 2268-20NST |
| Type | Infrared Temp-Gun |
| Distance-to-spot ratio | 12:1 |
| Temperature range | -22°F to 1022°F |
| Emissivity | 0.95, fixed |
| Modes | Hold, Max, Min, Avg, Diff |
| Alerts | User-set high/low temperature |
| Display | Premium LCD, shielded |
| Drop rating | 6' |
| Certification | NIST |
| Housing | Plastic |
| Country of origin | China |
