EBOLT SUPPLY

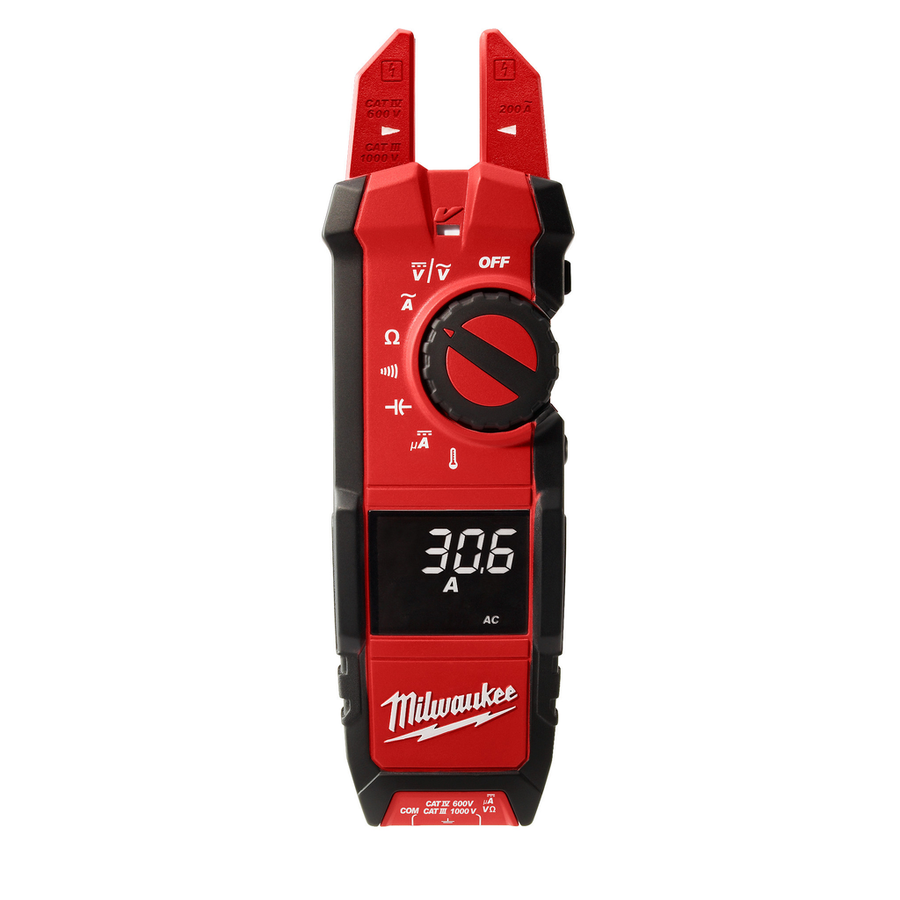

Fork Meter for HVAC/R

Model 2206-20

$189.00

Available to order

Free shipping on orders over $199. Free local delivery in the Springfield area.

  • ✓ Free shipping over $199Under that, rates are calculated at checkout.
  • ✓ Free local deliverySpringfield area, no minimum.
  • ✓ Full Milwaukee factory warrantyWe are an authorized dealer, so your warranty is valid.
  • ✓ 30-day returnsUnused and in the original box.
  • ✓ Questions? Talk to a person(217) 793-2940 - Mon-Thu 7-4:30, Fri 7-4

Details

The Milwaukee fork meter for HVAC/R is a heavy duty True-RMS electrical tester for professional residential, commercial and industrial applications. The 2206-20 is five tools in one providing current measurement, temperature measurement, voltage measurement, voltage detection and task lighting. In addition, the new tool provides a wide 0.63 in. fork opening, high 200 amp current range and a high contrast white-on-black display.

Features

  • True-RMS for accurate measurement in all applications
  • Rugged over-molding increases durability and user grip
  • Wide Voltage range to 1000 volts AC /DC
  • Thermocouple (dual banana) input for contact temperature measurement
  • High Contrast, White on Black Display with Backlight for easy reading
  • Measures up to 200 amps, Wide 0.63” jaw opening
  • 600 uA DC for Flame Rectification
  • Built-In Voltage Detector and LED Work Light

Specifications

  • Voltage: 1000
  • Depth: 7.85 Inches
  • Display Type: Digital
  • Material: Plastic
  • Country of Origin: Taiwan
  • Color Finish: Black;Red
  • Number of Batteries Required: 2
  • Operating Temperature: 14 Degrees to 122 Degrees F
  • Switch Type: Dial Switch

Downloads

    Warranty Document
