Milwaukee M18 FUEL 1/4 inch Lockbolt to Blind Rivet Tool Conversion Kit 49-16-2661R

EBOLT SUPPLY

M18 FUEL™ 1/4" Lockbolt to Blind Rivet Tool Conversion Kit

Model 49-16-2661R

$129.00

Available to order

Free shipping on orders over $199. Free local delivery in the Springfield area.

  • ✓ Free shipping over $199Under that, rates are calculated at checkout.
  • ✓ Free local deliverySpringfield area, no minimum.
  • ✓ Full Milwaukee factory warrantyWe are an authorized dealer, so your warranty is valid.
  • ✓ 30-day returnsUnused and in the original box.
  • ✓ Questions? Talk to a person(217) 793-2940 - Mon-Thu 7-4:30, Fri 7-4

Details

The Milwaukee M18 FUEL 1/4" Lockbolt to Blind Rivet Tool Conversion Kit (49-16-2661R) turns the M18 FUEL 1/4" Lockbolt Tool w/ ONE-KEY into a blind rivet installation tool. Once converted, the tool sets 3/16" (4.8 mm), 7/32" (6.0 mm), 1/4" (6.4 mm), and 9/32" (7.0 mm) aluminum, steel, and stainless steel blind rivets. This is the conversion kit only — the M18 FUEL 1/4" Lockbolt Tool w/ ONE-KEY is sold separately.

What it does well

  • Converts a compatible Lockbolt Tool to install 3/16" (4.8 mm), 7/32" (6.0 mm), 1/4" (6.4 mm), and 9/32" (7.0 mm) aluminum, steel, and stainless steel blind rivets
  • POWERSTATE brushless motor delivers 4,500 lbs. (20 kN) of pulling force for high-strength rivets across materials
  • 1.18 in. stroke length with a mandrel collector for clean, contained work
  • Doubles as organized storage for both the blind rivet and Lockbolt tool parts

Is this the right kit for you?

This kit is for pros who already run the M18 FUEL 1/4" Lockbolt Tool w/ ONE-KEY and want to add blind rivet capability without buying a second dedicated tool. If you don't own that Lockbolt tool yet, you'll need it (sold separately) — confirm you have it before ordering. Converted, the tool weighs only 5.6 lbs. with an M18 REDLITHIUM 2.0Ah battery and measures 12.5 in. long including the mandrel collector.

What's in the box

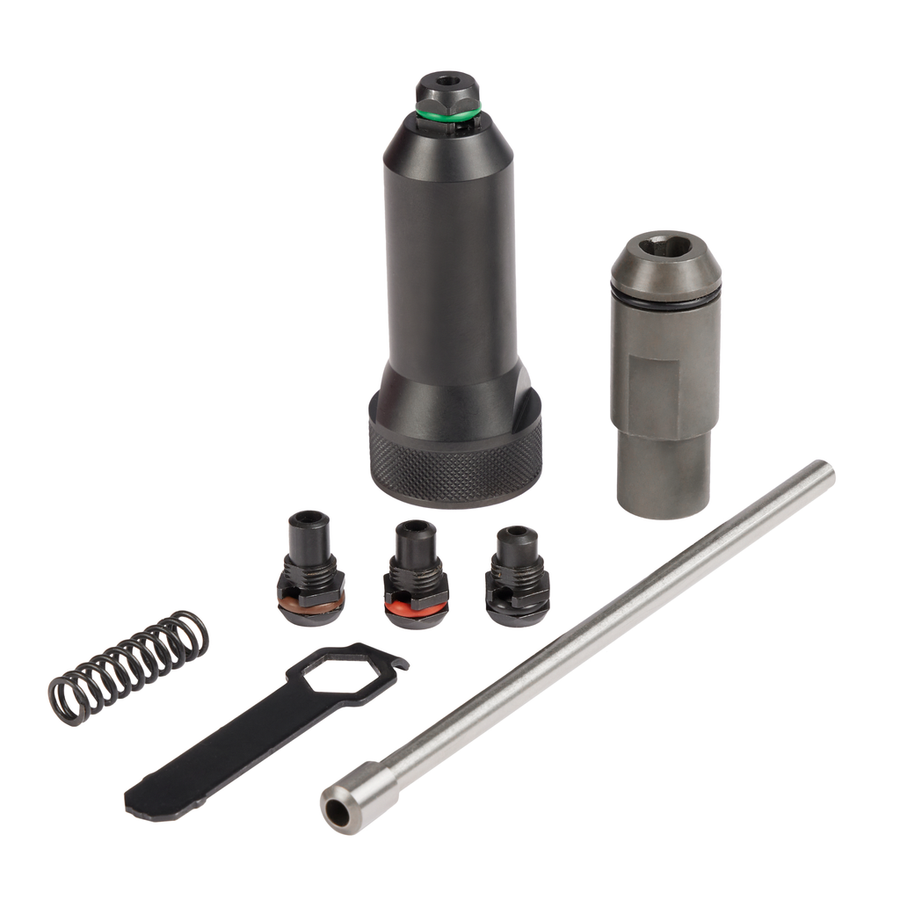

  • Blind rivet conversion components for the M18 FUEL 1/4" Lockbolt Tool
  • Storage solution for blind rivet and Lockbolt tool parts
  • M18 FUEL 1/4" Lockbolt Tool w/ ONE-KEY sold separately
  • M18 battery and charger sold separately

Specifications

Model 49-16-2661R
Rivet capacity 3/16" (4.8 mm), 7/32" (6.0 mm), 1/4" (6.4 mm), 9/32" (7.0 mm)
Rivet materials Aluminum, steel, stainless steel
Pulling force 4,500 lbs. (20 kN)
Stroke length 1.18 in.
Length 12.5 in. (including mandrel collector)
Weight 5.6 lbs. with M18 REDLITHIUM 2.0Ah battery
Depth 7.25 in.
Material Metal
Country of Origin China
