10-28 AWG Multi-Purpose Dipped Grip Wire Stripper & Cutter w/ Reinforced Head

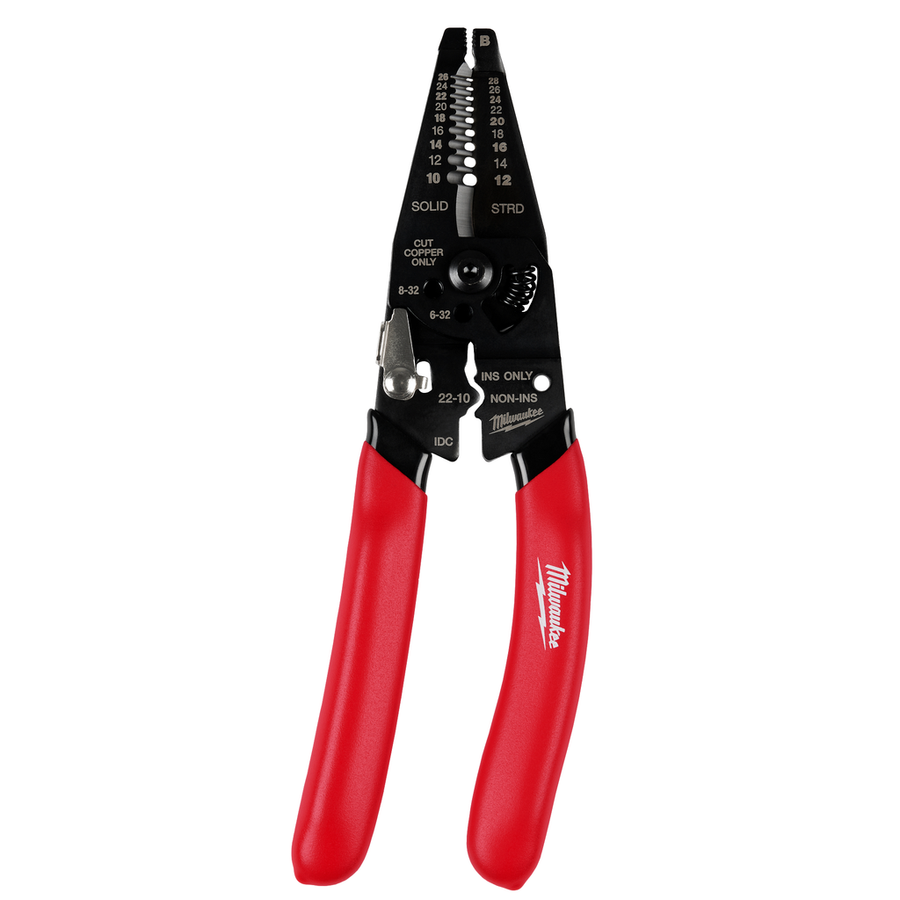

The Milwaukee Multi-Purpose Dipped Grip Wire Stripper and Cutter (48-22-3052) is a spring-loaded hand tool built around a reinforced head for bending and twisting multiple wires. It strips 10–26 AWG solid and 12–28 AWG stranded wire, cuts copper with a curved blade, crimps connectors, and shears 6-32 and 8-32 bolts. This is a hand tool — no battery required.

What it does well

• Strips 10–26 AWG solid and 12–28 AWG stranded wire for precise, clean fit
• Curved cutting edge cuts cleanly through solid and stranded copper wire
• Crimps B, insulated, non-insulated, and IDC connectors
• Reinforced head adds durability when bending and twisting multiple wires; 6-32 and 8-32 threaded bolt shears deburr the bolt as you cut

Is this the right wire stripper for you?

This is a multi-purpose stripper for electricians and pros who want stripping, cutting, crimping, and bolt shearing in a single hand tool. The swing-lock design allows one-handed use and folds closed for storage in a pocket, pouch, or bag, while the spring-open action and high-contrast markings speed repeat cuts. If you only need a fixed-gauge stripper, a dedicated model may suit better; choose this one for versatility across a range of wire tasks.

What's in the box

• Milwaukee 48-22-3052 Multi-Purpose Dipped Grip Wire Stripper and Cutter

Specifications

Downloads

• Warranty Document
