3-9/16" X 22" One Piece SDS Max Core Bit
$214.00
Available to order
Free shipping on orders over $199. Free local delivery in the Springfield area.
- ✓ Free shipping over $199Under that, rates are calculated at checkout.
- ✓ Free local deliverySpringfield area, no minimum.
- ✓ Full Milwaukee factory warrantyWe are an authorized dealer, so your warranty is valid.
- ✓ 30-day returnsUnused and in the original box.
- ✓ Questions? Talk to a person(217) 793-2940 - Mon-Thu 7-4:30, Fri 7-4
Details

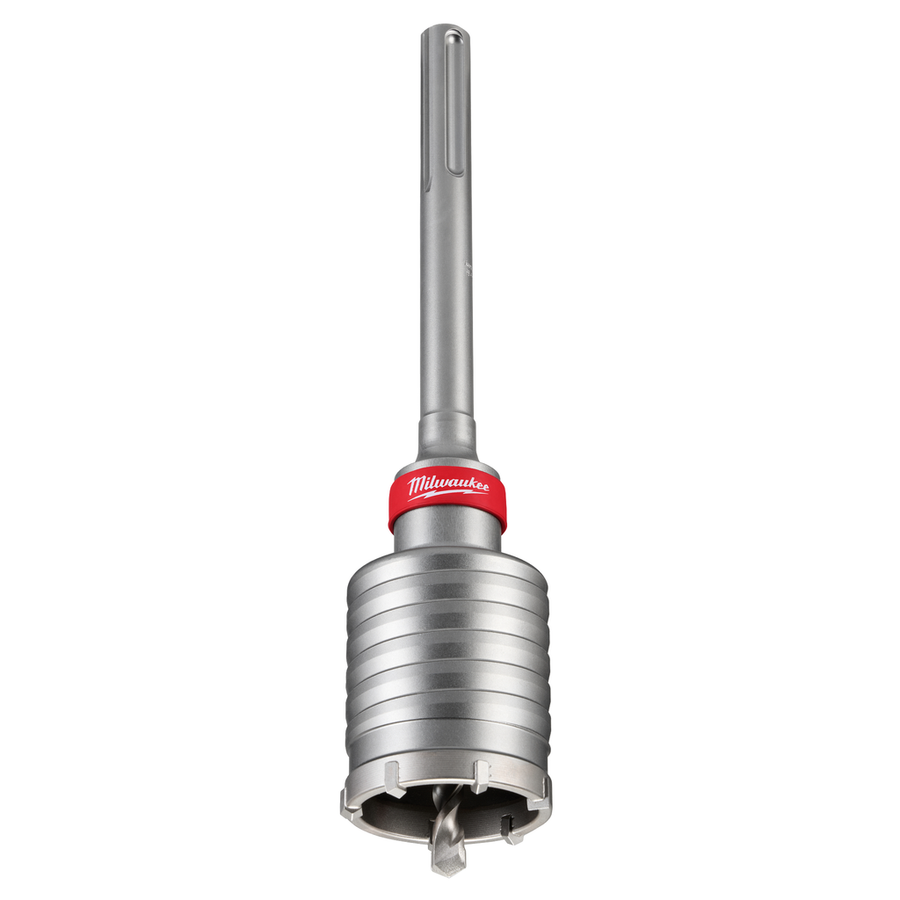

The MILWAUKEE® 1-piece carbide tipped core bits are ideal for drilling large holes with relatively shallow depths. The core bit cuts a kerf only. The operator must remove the inside core before deeper drilling can be accomplished. Use of centering bit 48-20-5495 is recommended (not included). Use drift key 48-20-5497 to remove the centering bit from the one-piece core bit. The one-piece core bits are available in SDS-Max or Spline shanks. They come in a variety of diameters ranging from 1-1/2” to 6” with overall lengths of 11-3/8” or 22” and a drilling depth of 3”. The asymmetric tooth pitch with alternating tooth geometries creates faster material pulverization. The one-piece design maximizes energy transfer, and the thick wall core body is durable even in large hammers. The fluted core exterior minimizes friction loss and removes debris faster.
Features
- Optional: Centering Tip to Reduce Bit Walking and Create Exact Spot Drilling
- Thick-Wall Core Body for Durability Even in Large Hammers
- Remove centering bit with drift key 48-20-5497 (not included)
- Asymmetrical and Alternating Teeth for Faster Material Pulverization
Specifications
- Bit Type: Core
- Shank Diameter: 3/4 in
- Drilling Depth: 3 in
- Material Application: Concrete
- Depth: 3.56 Inches
- Country of Origin: Germany
- Material: Carbide Tipped
