M18™ Compact Brushless 2-Tool Combo Kit
$299.00
Available to order
Free shipping on orders over $199. Free local delivery in the Springfield area.
- ✓ Free shipping over $199Under that, rates are calculated at checkout.
- ✓ Free local deliverySpringfield area, no minimum.
- ✓ Full Milwaukee factory warrantyWe are an authorized dealer, so your warranty is valid.
- ✓ 30-day returnsUnused and in the original box.
- ✓ Questions? Talk to a person(217) 793-2940 - Mon-Thu 7-4:30, Fri 7-4
Details
The Milwaukee M18 Compact Brushless 2-Tool Combo Kit (3693-22CX) pairs the M18 Compact Brushless 1/2" Hammer Drill with the M18 Compact Brushless 1/4" Hex 3-Speed Impact Driver. As a “22CX” kit it ships ready to run: both tools, two REDLITHIUM batteries, a Multi-Volt charger, and a contractor bag are included — no separate battery purchase needed. Both tools run brushless motors and share Milwaukee’s M18 battery platform, compatible with 250+ M18 solutions.
What it does well
- Hammer Drill delivers 600 in-lbs of torque with the XC4.0 battery, a two-speed gearbox (0–550 / 0–1,700 RPM) and hammer function for drilling and fastening.
- Impact Driver produces 1,700 in-lbs of peak torque at 0–3,600 RPM with 3-Mode Drive Control for finer speed management.
- Compact footprint: the Hammer Drill is 5.8" long; the Impact Driver measures 4.4" long × 2.1" wide for access in tight and overhead spaces.
- Pro-grade build with an all-metal ratcheting 1/2" chuck and metal gearcase; REDLINK Intelligence tunes tool-and-battery performance.
Is this the right combo kit for you?
This is a compact, everyday drilling-and-driving pair for pros already on (or moving into) the M18 system — ideal when size and control matter more than max FUEL-class power. Because it is a full 22CX kit, it is a strong starting point if you need batteries and a charger, not just bare tools.

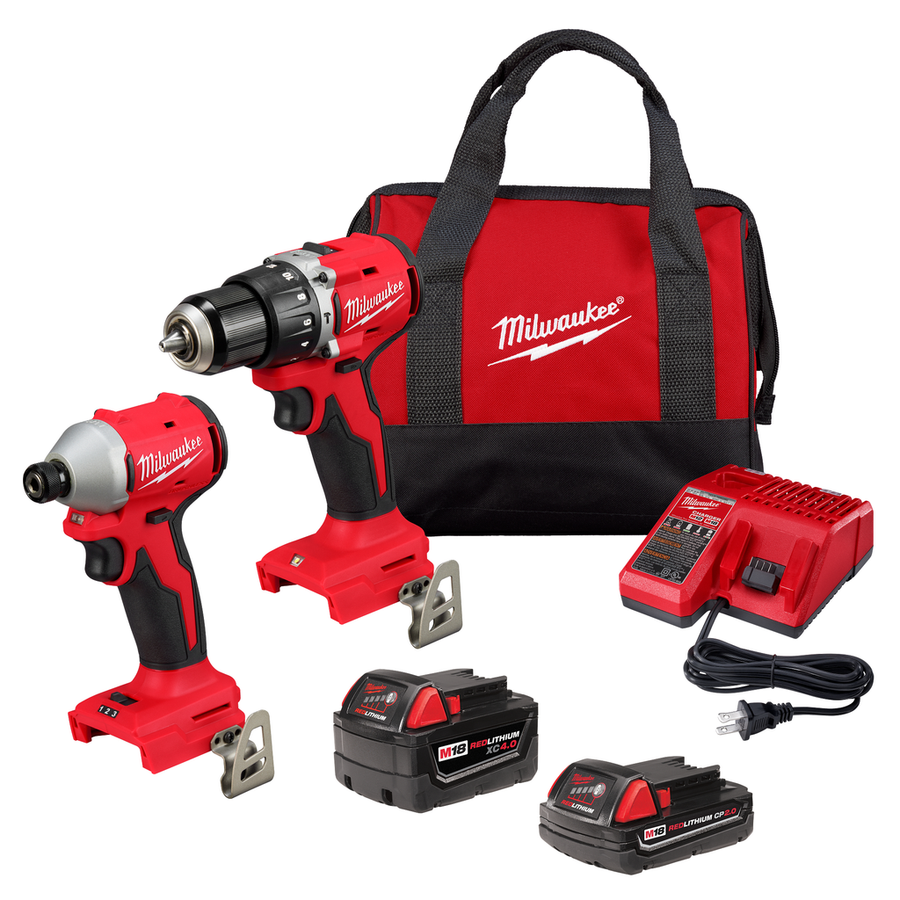

What's included
- M18 Compact Brushless 1/2" Hammer Drill
- M18 Compact Brushless 1/4" Hex 3-Speed Impact Driver
- (1) M18 REDLITHIUM XC4.0 Battery Pack
- (1) M18 REDLITHIUM CP2.0 Battery Pack
- M18 & M12 Multi-Volt Charger
- Contractor Bag
Specifications
| Model | 3693-22CX |
| Battery System | M18 · 18V |
| Motor Type | Brushless |
| Hammer Drill Length | 5.8" |
| Hammer Drill Torque | 600 in-lbs (with XC4.0 battery) |
| Hammer Drill Speed | 0–550 / 0–1,700 RPM |
| Chuck | 1/2" all-metal ratcheting |
| Hammer Function | Yes |
| Clutch Settings | 12 |
| Speed Settings | 2 |
| Impact Driver Size | 4.4" L × 2.1" W |
| Impact Driver Torque | 1,700 in-lbs peak |
| Impact Driver Speed | 0–3,600 RPM |
| Drive Control | 3-Mode |
| Weight (battery installed) | 2.3 lb |
| Weight (excluding battery) | 1.7 lb |
| Material | Metal |
| Country of Origin | Mexico |
