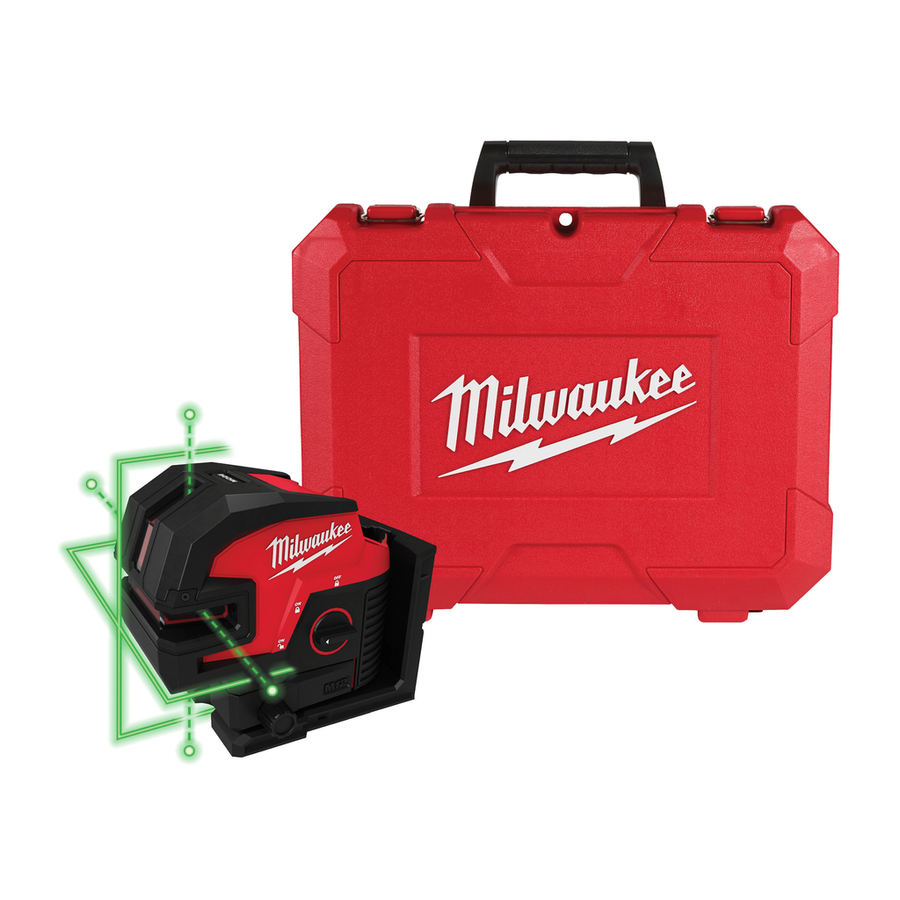

M12™ Green Laser – Cross Line & 4-Points

The Milwaukee M12 Green Laser Cross Line & 4-Points (model 3624-20) is a cordless self-leveling laser that projects vertical and horizontal green lines plus four points for leveling, alignment, plumb and squaring layout. This is a bare tool — the M12 REDLITHIUM battery and charger are sold separately. Running on an M12 REDLITHIUM 3.0 CP battery, it delivers 9+ hours of continuous runtime.

What it does well

• High-visibility green laser with a 125 ft working range, extending to 165 ft when used with a detector
• Cross lines plus 4 points cover level, align, plumb and square tasks; 210° horizontal and 165° vertical fan angles
• Self-levels within a ±4° tilt range and holds ±1/8" accuracy at 33 ft
• Amplified rare earth magnets grip steel studs without sliding; 2" plumb point access and micro-control pivot for fine alignment

Is this the right laser for you?

Choose the 3624-20 if you already run M12 batteries and want green-line visibility for interior layout, framing and finish work at range. Because it ships as a bare tool, factor in an M12 battery and charger if you don't have them. If you need floor-to-ceiling point transfer plus full cross-line layout in one unit, this covers both.

What's included

• M12 Green Cross Line & 4-Points Laser (3624-20)
• M12 battery and charger sold separately

Specifications

Downloads

• Warranty Document
