M12™ Green Cross Line and Plumb Points Laser
$449.00
Order today
Check today's shelf: (217) 793-2940
Free shipping on orders over $199. Free pickup in Springfield and Jacksonville.
Shipping, pickup & returns
- Free shipping over $199Under that, rates are calculated at checkout.
- Free in-store pickupSpringfield or Jacksonville. In-stock tools are ready as soon as you order, during store hours.
- Full Milwaukee factory warrantyWe are an authorized dealer, so your warranty is valid.
- 30-day returnsUnused and in the original box.
- Questions? Talk to a person217-793-2940 - Mon-Thu 7-4:30, Fri 7-4
Details

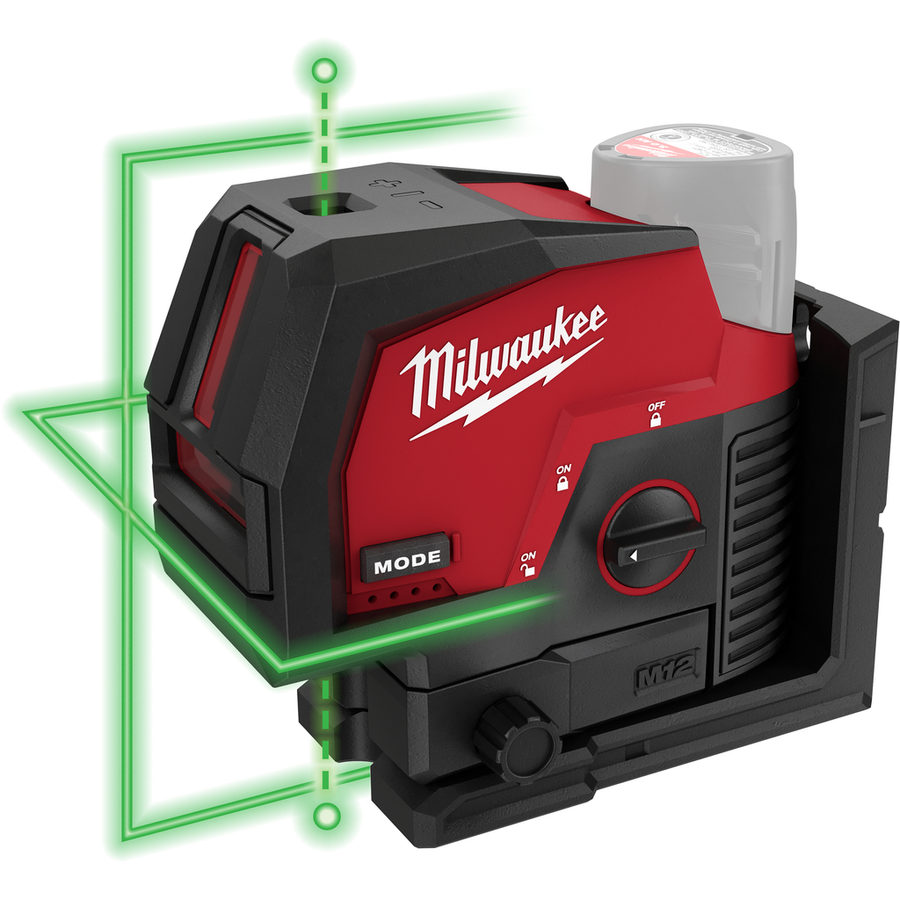

The Milwaukee M12 Green Cross Line and Plumb Points Laser (model 3622-20) projects a bright green vertical and horizontal cross line plus two plumb points for layout, leveling, and floor-to-ceiling transfers. This is a bare tool — the M12 REDLITHIUM battery and charger are sold separately.
What it does well
- High-visibility green laser with a 125 ft. working range and 165 ft. range when used with a detector
- Cross-line projection plus two plumb points for alignment, leveling, and 2" plumb point access transfers
- Self-leveling within ±4° tilt, accurate to ±1/8" @ 33 ft
- Amplified rare earth magnets hold to steel studs without sliding; integrated magnetic bracket pivots on the plumb point with micro control
Is this the right laser for you?
Built for pros already on the M12 system who want green-laser visibility for interior layout, alignment, and plumb work. Its IP54 rating, 1m impact resistance, and 15+ hour runtime (on an M12 3.0 CP battery) suit long jobsite days. Since it ships as a bare tool, choose it if you already own M12 batteries and a charger; otherwise budget for those separately.
What's in the box
- M12 Green Cross Line and Plumb Points Laser (3622-20)
- M12 battery and charger sold separately
Specifications
| Model | 3622-20 |
| Battery System | M12 |
| Voltage | 12V |
| Power Source | Cordless |
| Working Range | 125 ft. |
| Range with Detector | 165 ft. |
| Accuracy | ±1/8" @ 33 ft |
| Self-Leveling | ±4° tilt |
| Runtime | 15+ hours (with M12 3.0 CP battery, sold separately) |
| Thread Mount | 1/4-20 & 5/8-11 |
| Plumb Point Access | 2" |
| Impact Resistance | 1m |
| Ingress Rating | IP54 (water & dust resistant) |
| Depth | 6.7 in. |
| Material | Glass Filled Nylon |
| Batteries Required | 1 |
| Country of Origin | Vietnam |
| Warranty | 3 Year |
