M18™ Compact Brushless 1/2" Hammer Drill/Driver Kit

The Milwaukee M18 Compact Brushless 1/2" Hammer Drill/Driver Kit (model 3602-22CT) pairs a brushless motor rated at 550 in-lbs of torque with a two-speed gearbox (0–550 / 0–1,700 RPM) and a hammer mode for light concrete and masonry drilling. This is a full kit: it ships with the 3602-20 drill, two M18 REDLITHIUM 2.0 Ah compact batteries, an M18/M12 multi-voltage charger, and a contractor bag, so it is ready to run out of the box.

What it does well

• Brushless motor delivers 550 in-lbs of torque across two speed ranges (0–550 and 0–1,700 RPM) for driving and drilling.
• Hammer function adds percussion for drilling into concrete and masonry.
• Compact 5.8" head length and 3.2 lb weight (with battery) give good control in overhead and tight-space work.
• All-metal gear case and 1/2" all-metal chuck stand up to impact and shock on the jobsite.
• REDLINK Intelligence provides overload and temperature protection for the tool and battery.

Is this the right hammer drill for you?

This kit suits pros and serious DIYers already on, or moving into, the M18 platform who want one compact drill that handles wood, metal, and occasional concrete without stepping up to a larger FUEL hammer drill. It is not a FUEL or ONE-KEY tool, so if you need the highest-output rotary or masonry performance look higher in the line; for everyday drilling and driving with light hammer duty, this compact unit covers it. Since it is a complete kit, it is a strong pick for anyone starting an M18 collection.

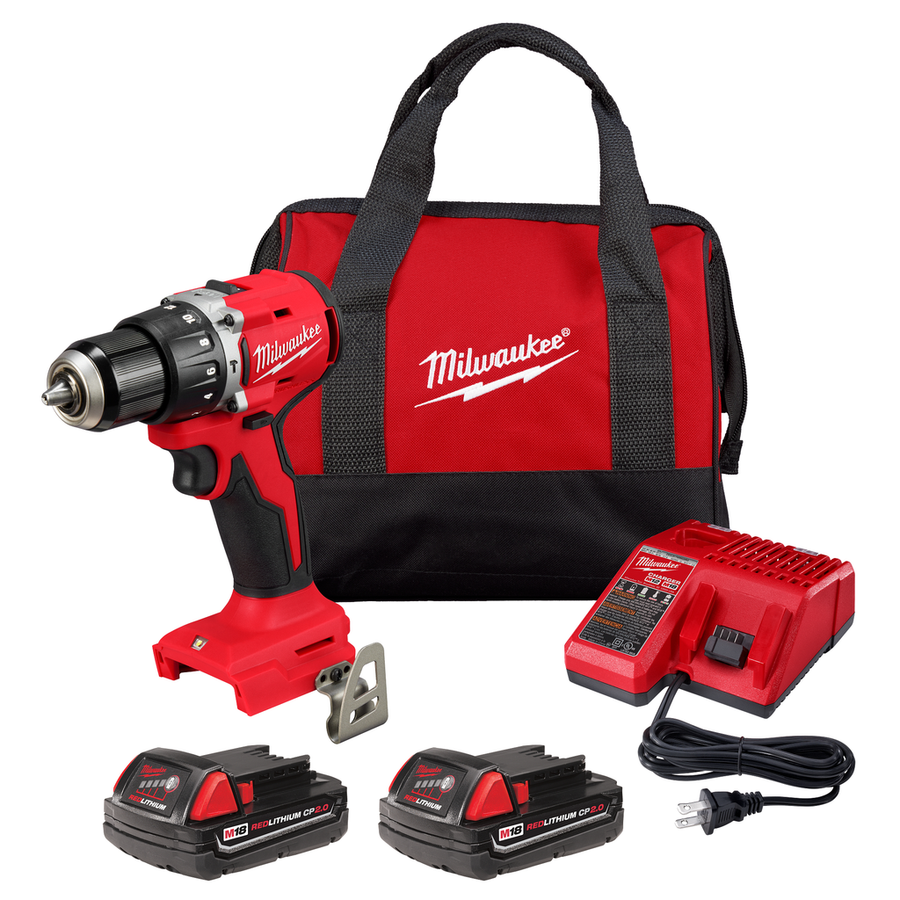

What's in the box

• 3602-20 M18 Compact Brushless 1/2" Hammer Drill/Driver
• (2) 48-11-1820 M18 REDLITHIUM CP2.0 compact batteries
• 48-59-1812 M18/M12 multi-voltage charger
• Contractor bag

Specifications

Downloads

• Warranty Document
• Safety Data Sheet
