M12 FUEL™ 1/4" Ratchet Kit

The Milwaukee M12 FUEL 1/4" Ratchet (model 3052-21) is a compact cordless ratchet kit that includes the tool, an M12 High Output 2.5Ah battery, and a charger. It runs a POWERSTATE brushless outer rotor motor rated at 550 RPM and up to 45 ft-lbs of max torque, with a 3/4" head profile for reaching into tight spaces.

What it does well

• POWERSTATE brushless motor delivers up to 550 RPM and up to 45 ft-lbs of max torque
• Compact 0.75" head profile and 2.2" depth for access in tight spaces
• 1.5 lbs bare tool (1.9 lbs with battery installed) with a contoured grip
• Modular trigger with both button and paddle caps included, plus a raised forward/reverse shuttle, targeted LED light, and integrated grease port

Is this the right ratchet for you?

This is a 1/4" drive ratchet built for pros working fasteners in confined engine bays and equipment where a compact head matters. It runs on the M12 system, so it's a natural fit if you already own M12 batteries; since this is the kit, you get a battery and charger in the box either way. Step up to a 3/8" drive if you need a larger anvil.

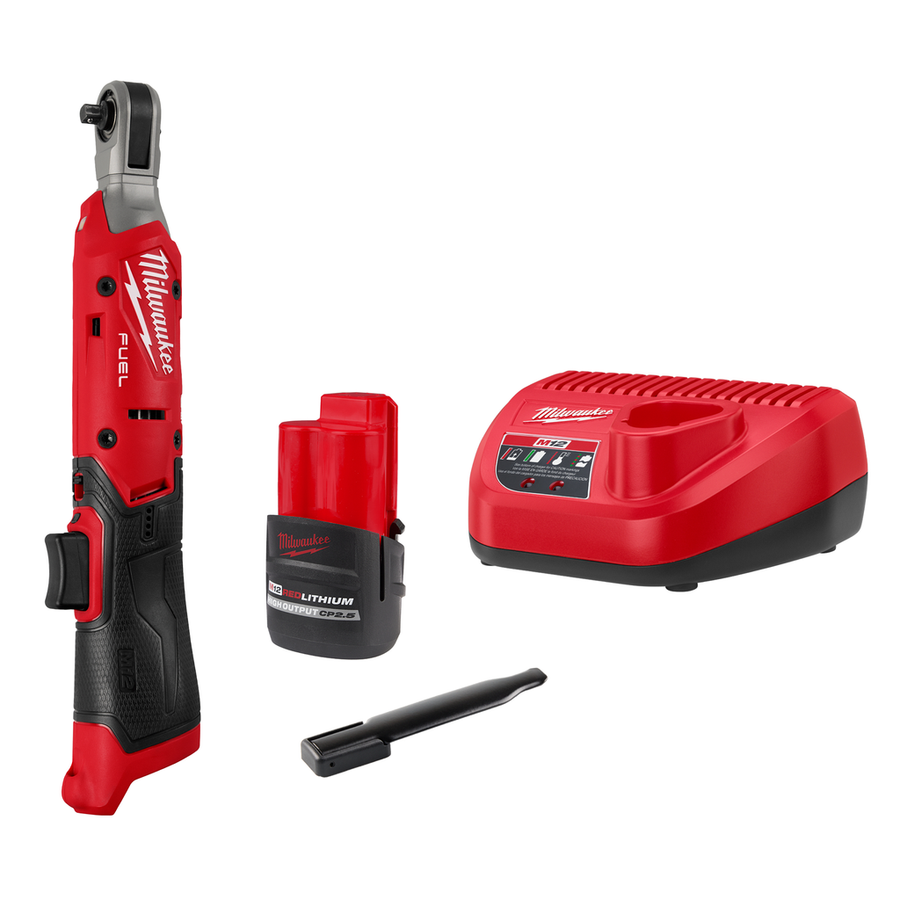

What's in the box

• M12 FUEL 1/4" Ratchet (3052-20)
• M12 High Output 2.5Ah battery
• M12 charger
• Modular trigger button & paddle caps

Specifications

Downloads

• Safety Data Sheet
• Warranty Document
