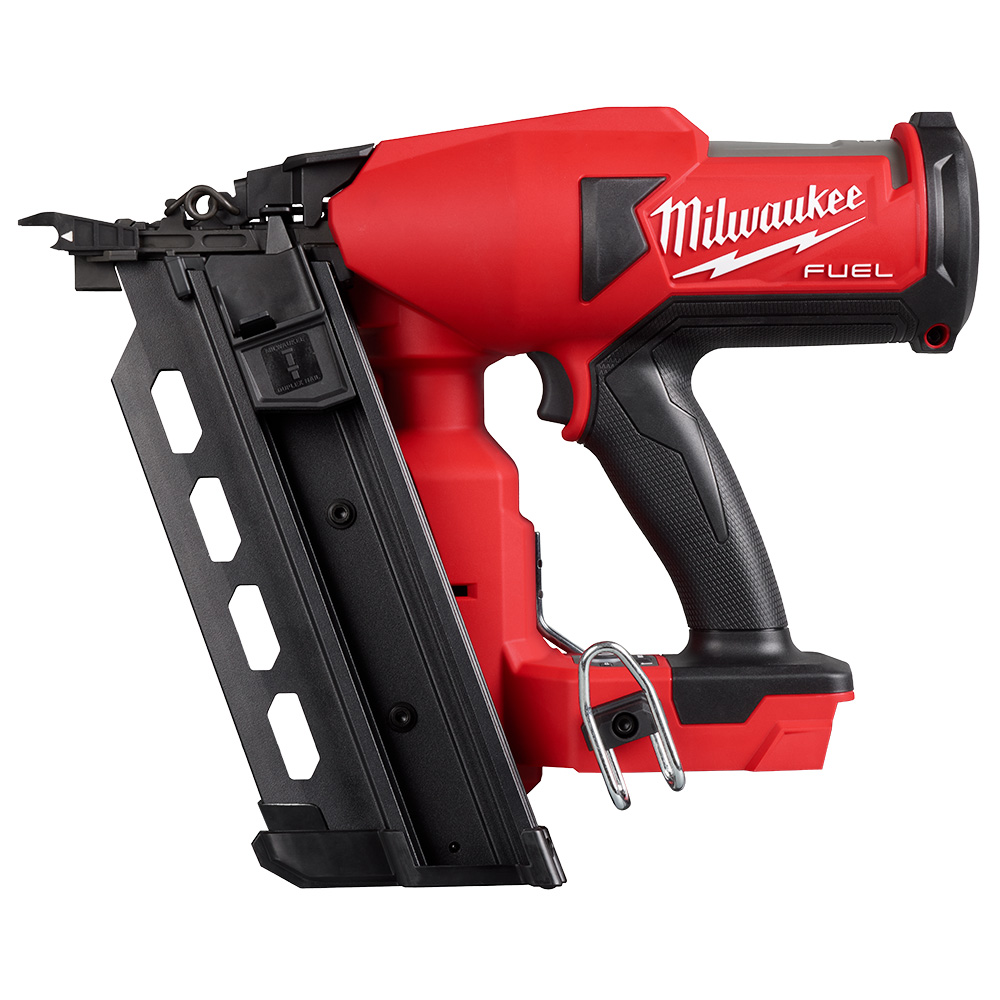

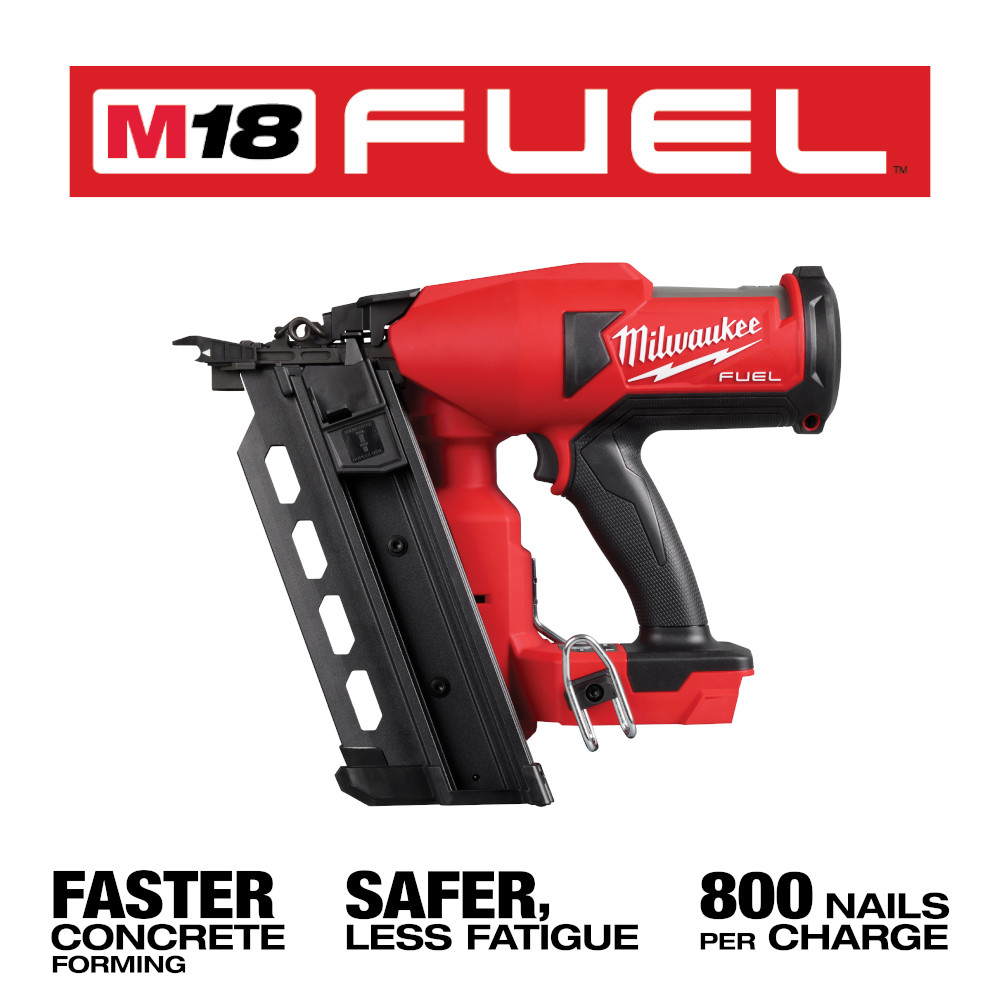

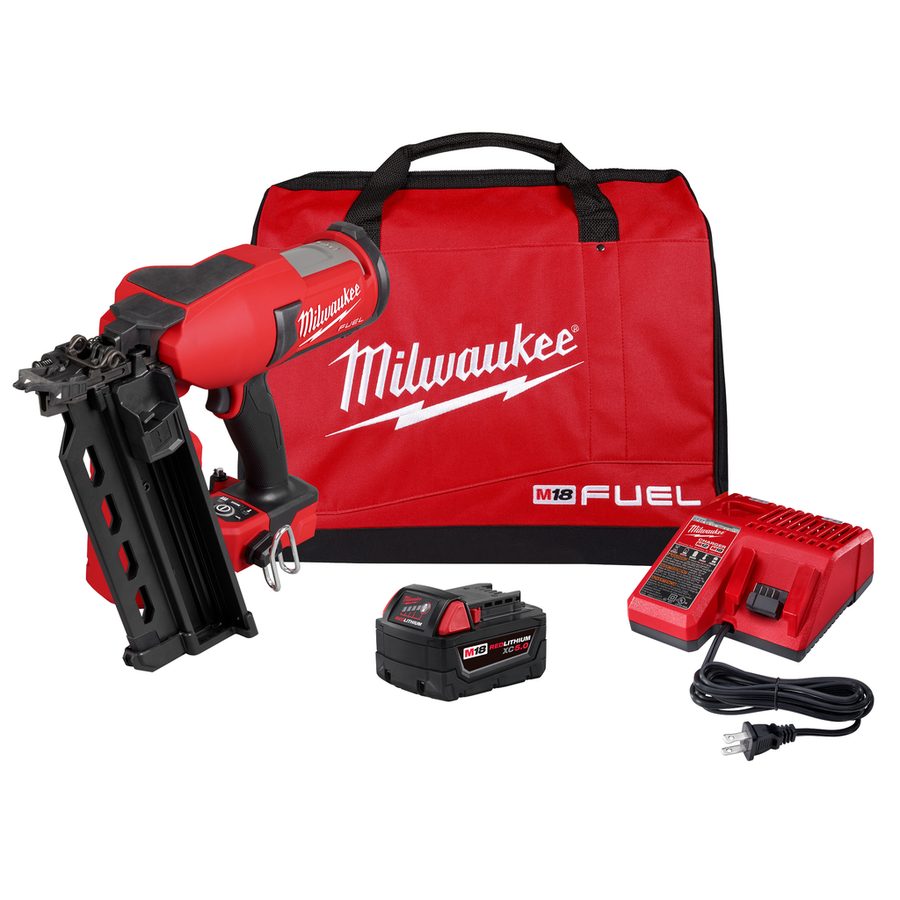

M18 FUEL™ Duplex Nailer

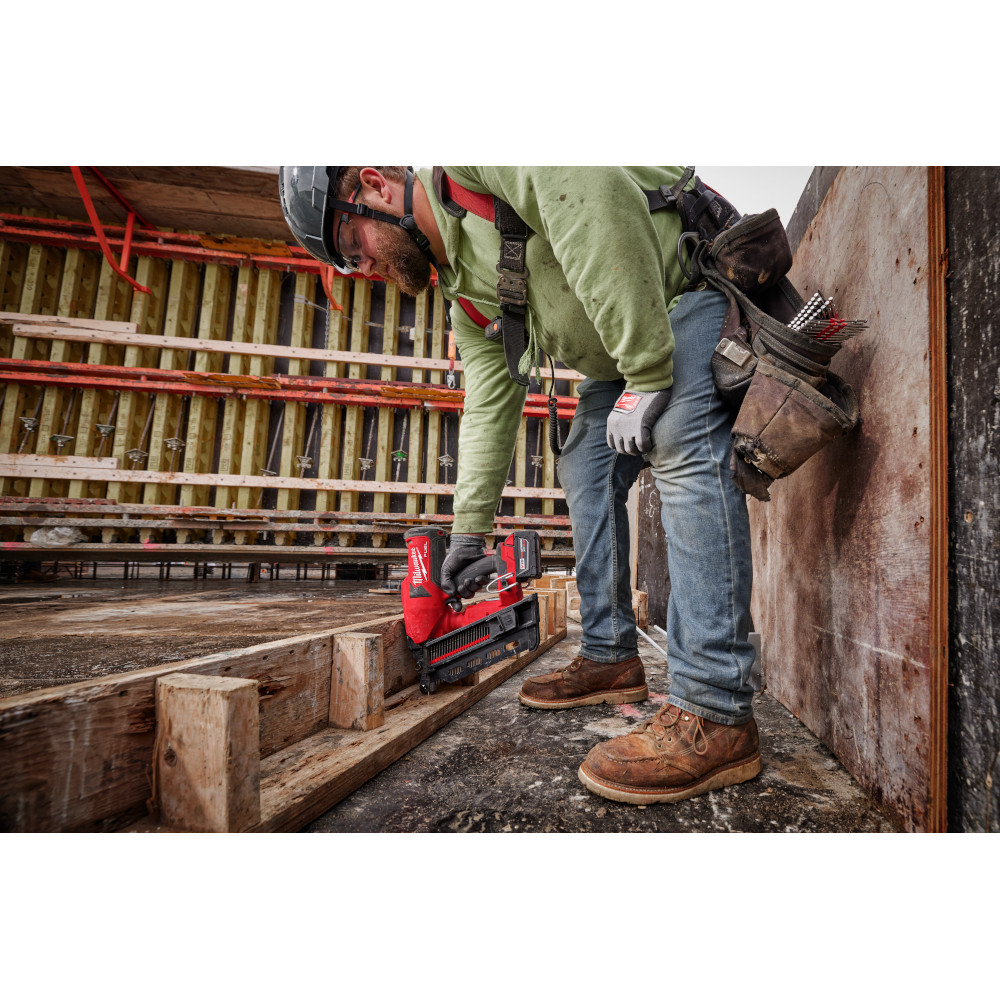

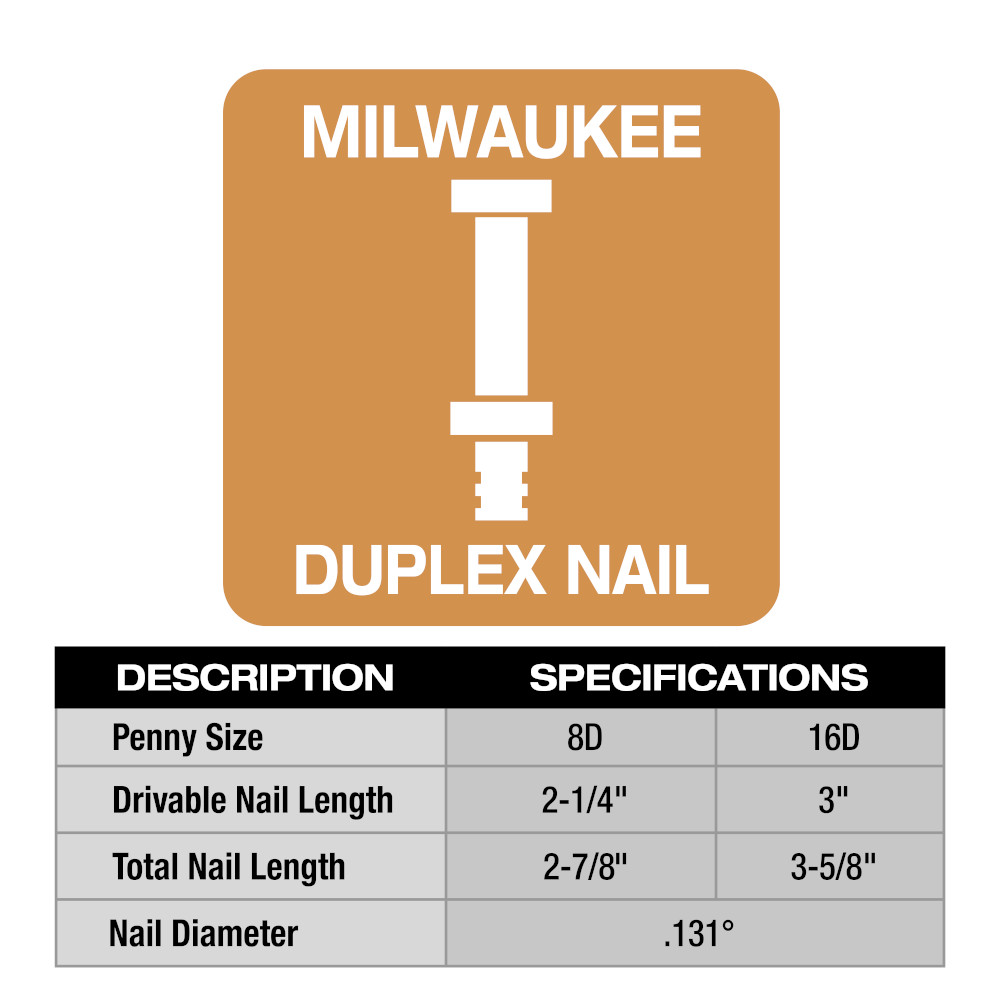

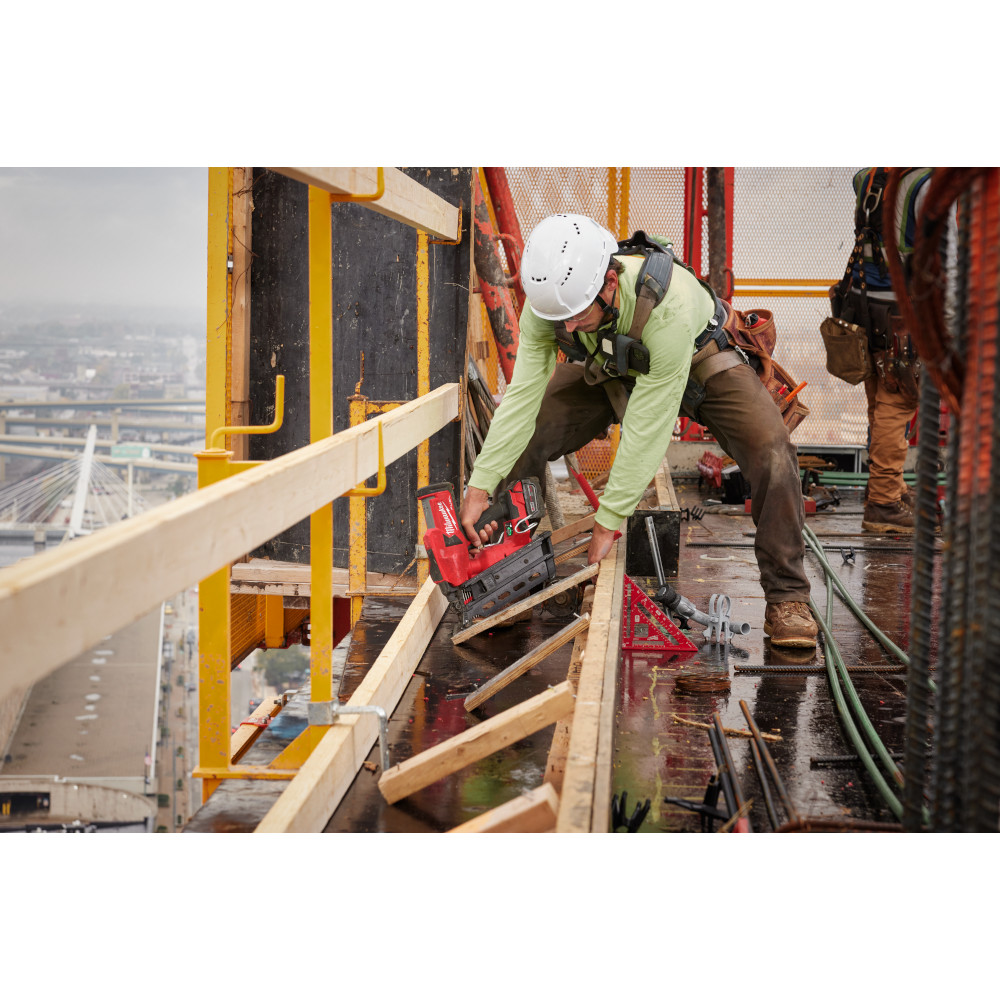

The MILWAUKEE® M18 FUEL™ Duplex Nailer revolutionizes the assembly of concrete formwork by increasing productivity and optimizing ergonomics. By leveraging our nitrogen air spring technology, POWERSTATE™ Brushless motor, and REDLINK™ Intelligence, this nailer delivers the performance to seat nails into all wooden formwork materials at firing rates of up to 4 nails per second. The M18 FUEL™ Duplex Nailer provides our users with a 7X Increase in productivity and a drastic reduction in muscle effort compared to driving nails with a hammer. This nailer is equipped with user-driven features including tool-free jam clearance and depth of drive adjustment to minimize downtime on the job. The cordless nailer is designed for compatibility with Milwaukee® Collated Duplex Nails (sold separately) available in two sizes: 8D (2 ¼” drivable length) & 16D (3” drivable length). When paired with the M18™ REDLITHIUM™ 5.0AH Battery pack, this nailer gives users the ability to sink up to 800 nails per charge. The M18 FUEL™ Duplex Nailer joins the M18™ System of over 200 solutions and is compatible with all M18™ REDLITHIUM™ batteries.

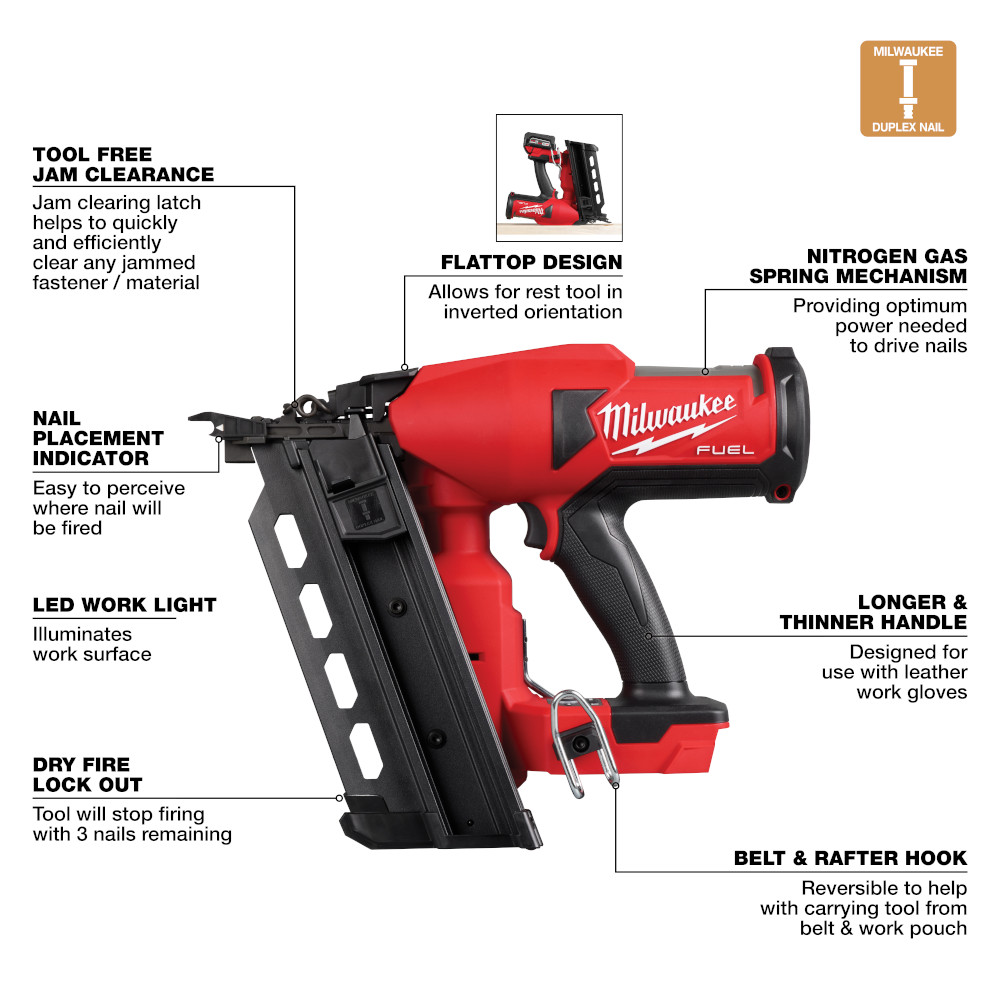

Features

• Belt & Rafter Hook
• POWERSTATE Brushless Motor delivers longer life and higher performance
• Fires 4 Nails Per Second
• Dry Fire Lockout

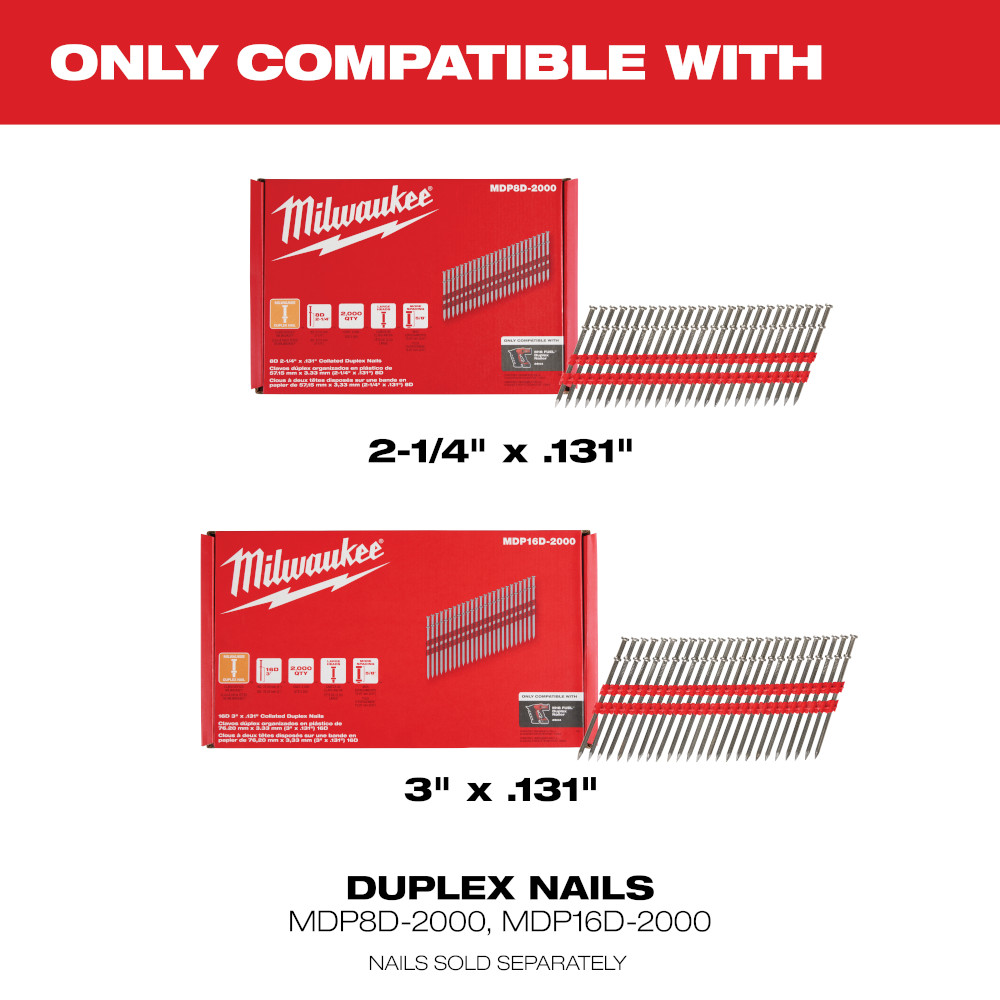

• Only compatible with Milwaukee Collated Duplex Nails (MDP8D-2000, MDP16D-2000)
• Nail Placement Indicator
• Part of the M18™ system, featuring over 200+ solutions
• REDLITHIUM battery technology: superior pack construction, electronics and performance deliver more work per charge and more work over pack life than any battery on the market
• Tool Free Jam Clearing Latch
• Tool Free Depth Adjustment
• Ergonomic Handle for use with thick work gloves
• Flattop Design to rest tool in inverted orientation
• LED Work Light

Specifications

• Magazine Capacity: 31
• Case Included: No
• Battery Voltage (V): 18
• Housing Material: High Performance Polyethylene
• Nails per Battery Charge: 800
• Width: 5.3 Inches
• Maximum Fastener Length: 3.625 in
• Magazine Angle (°): 21
• CSA Certified: No
• Length: 15.1 Inches
• Fastener Format: Strip
• Number of Batteries Required: 1
• Fastener Gauge Range: 0.131"
• Color / Finish: Black, Red
• Height: 12.5 Inches
• UL Listed: Yes
• Integrated Work Light: Yes
• Net Tool Weight: 9.5 lbs
• Country of Origin: Vietnam
• Collation: Strip
• ETL Listed: No
• Powered Tool Power Source: Electric - Cordless
• Adjustable Depth Setting: Yes (Tools Not Required)
• Nailer / Stapler Design: Nailer
• Weight - Excluding Battery: 9.5 lbs
• Charger Included: No
• ANSI Safety Listing: No
• Integrated Rafter Hook: Yes
