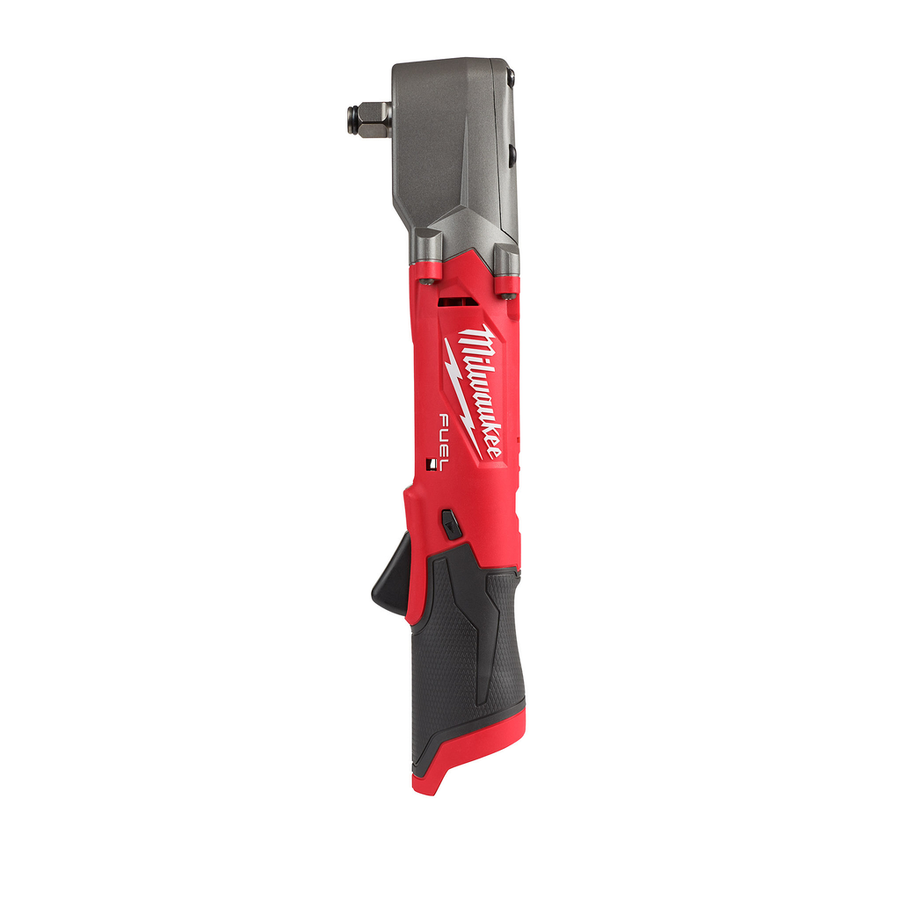

M12 FUEL™ 1/2" Right Angle Impact Wrench w/ Friction Ring (Bare Tool)

The Milwaukee M12 FUEL™ 1/2" Right Angle Impact Wrench with Friction Ring (model 2565-20) is a cordless right-angle impact wrench that delivers up to 220 ft-lbs of nut-busting torque from a compact 2.2" head profile. This is a bare tool — the M12™ REDLITHIUM™ battery and charger are sold separately.

What it does well

• POWERSTATE™ Brushless Motor produces up to 220 ft-lbs of nut-busting torque and up to 200 ft-lbs of fastening torque.
• Slim 2.2" head profile reaches into tight spaces where a pistol-grip impact wrench won't fit, reducing the need for socket extensions.
• 4-Mode DRIVE CONTROL tunes speed and impacts — from 0–1,550 RPM / 0–1,350 IPM in Mode 1 up to 0–3,000 RPM / 0–3,600 IPM in Modes 3 and 4.
• Auto shut-off mode caps output at 15 ft-lbs to prevent over-tightening, and a bolt-removal mode slows RPM once a fastener breaks loose. An LED lights the work area.

Is this the right impact wrench for you?

Choose the 2565-20 if you work in confined engine bays, machinery, or overhead spaces where a standard impact wrench is too bulky and you already own M12™ batteries. Because it ships as a bare tool, pair it with an M12™ REDLITHIUM™ pack and charger if you don't already have the platform.

What's in the box

• M12 FUEL™ 1/2" Right Angle Impact Wrench (2565-20)
• M12™ battery and charger sold separately

Specifications

Downloads
