M12 FUEL™ 3/8" Right Angle Impact Wrench w/ Friction Ring Kit
$399.00
Available to order
Free shipping on orders over $199. Free local delivery in the Springfield area.
- ✓ Free shipping over $199Under that, rates are calculated at checkout.
- ✓ Free local deliverySpringfield area, no minimum.
- ✓ Full Milwaukee factory warrantyWe are an authorized dealer, so your warranty is valid.
- ✓ 30-day returnsUnused and in the original box.
- ✓ Questions? Talk to a person(217) 793-2940 - Mon-Thu 7-4:30, Fri 7-4
Details
The Milwaukee M12 FUEL™ 3/8" Right Angle Impact Wrench with Friction Ring Kit (model 2564-22) is a cordless right angle impact wrench that delivers up to 220 ft-lbs of nut-busting torque in a compact 2.2" head profile that reaches into spaces a traditional pistol-grip impact can't. As a kit, it includes the tool plus an M12™ REDLITHIUM™ battery and charger.
What it does well
- POWERSTATE™ Brushless Motor produces up to 220 ft-lbs of nut-busting torque.
- 4-Mode Drive Control with Auto Shut-Off Mode (limits torque to no more than 15 ft-lbs to prevent over-tightening) and Bolt Removal Mode that slows RPM after breakaway for more control.
- Speed by mode — IPM: 0-1,350 / 0-2,700 / 0-3,600 / 0-3,600; RPM: 0-1,550 / 0-2,300 / 0-3,000 / 0-3,000.
- Slim 2.2" head and 14.17" long body profile for access in tight and hard-to-reach spaces, plus an onboard LED to light the work area.
Is this the right impact wrench for you?
This is a specialist tool for pros who need to break loose and run 3/8" fasteners in confined spots — under dashes, in engine bays, on equipment — where a standard impact won't fit. If you want the M12 platform and the flat right-angle head, the kit gets you running out of the box; if you already own M12 batteries, consider the bare-tool version instead.

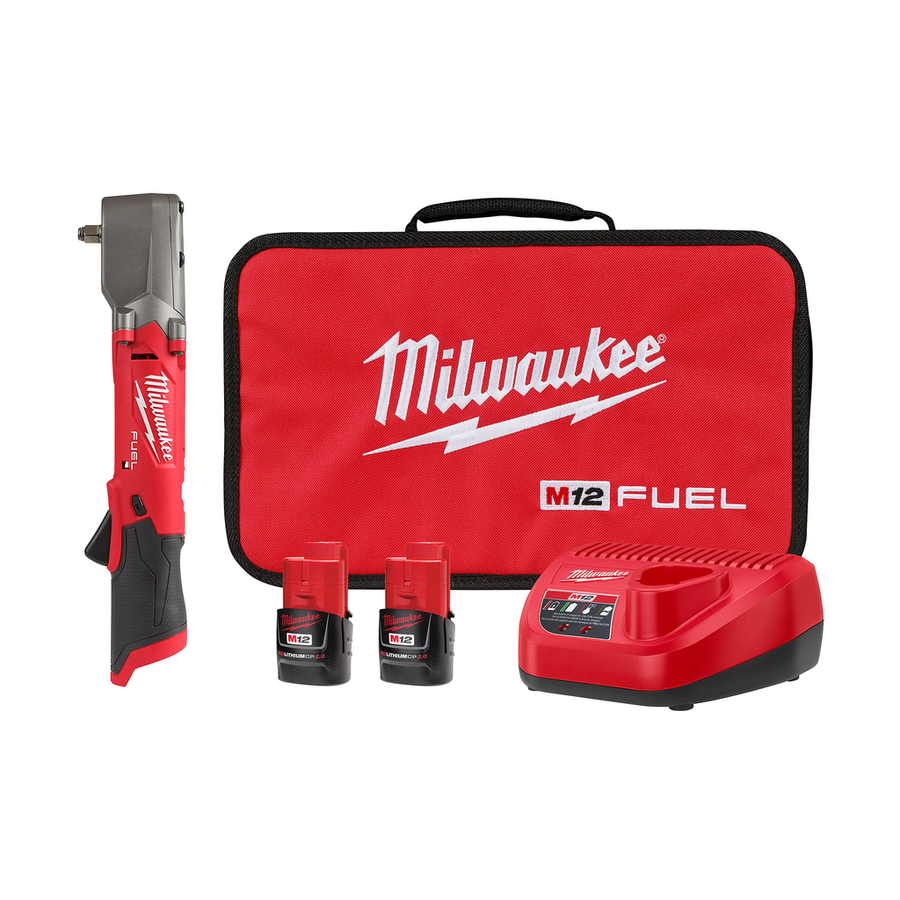

What's in the box
- M12 FUEL™ 3/8" Right Angle Impact Wrench (2564)
- M12™ REDLITHIUM™ battery (2.0 Ah)
- M12™ charger
Specifications
| Model | 2564-22 |
| Battery System | M12™ |
| Voltage | 12V |
| Motor | POWERSTATE™ Brushless |
| Maximum Torque | 220 ft-lbs |
| Fastening Torque | 200 ft-lbs |
| Impacts Per Minute (IPM) | 0 - 3,600 |
| RPM Range | 0 - 3,000 |
| Drive Control | 4-Mode w/ Auto Shut-Off & Bolt Removal |
| Drive Size | 3/8" Square |
| Anvil Size | 3/8 in |
| Anvil Type | Friction Ring |
| Wrench Type | Right Angle |
| Head Profile | 2.2" |
| Body Length | 14.17" |
| Depth | 13.89" |
| Battery Amp Hours | 2.0 Ah |
| Weight (excl. battery) | 2.83 lb |
| Weight (battery installed) | 3.23 lb |
| Material | Aluminum |
| ONE-KEY Enabled | No |
| Country of Origin | Mexico |
