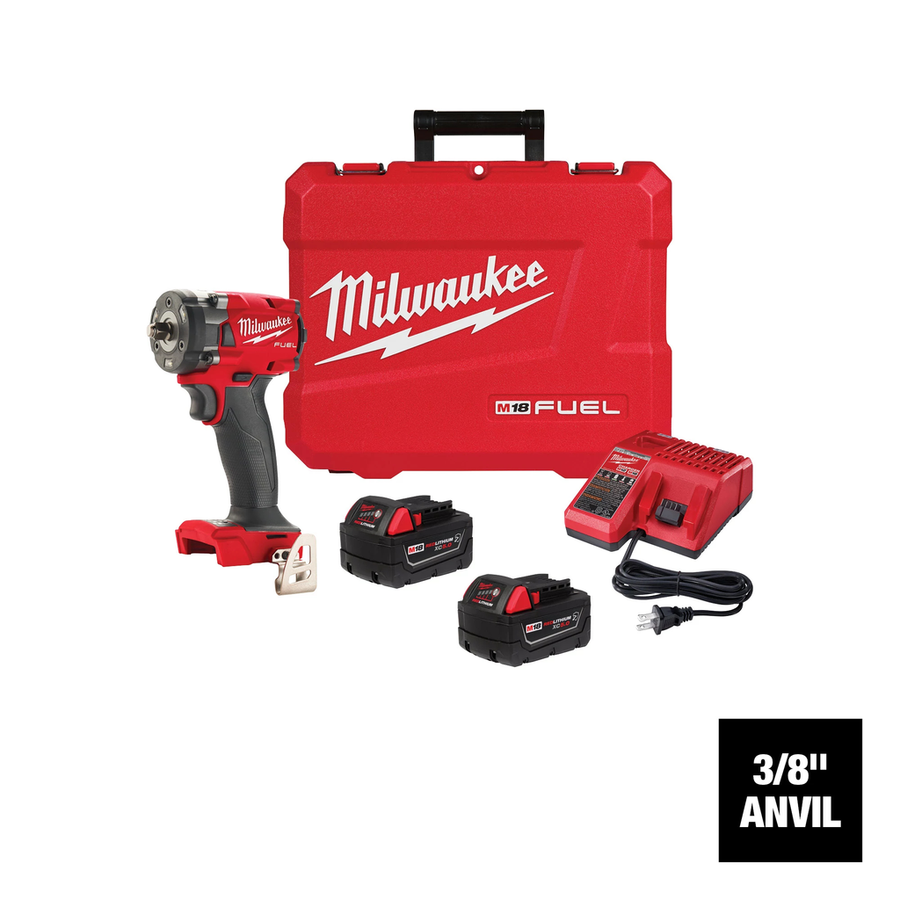

M18 FUEL™ 3/8 " Compact Impact Wrench w/ Friction Ring Kit

The MILWAUKEE® M18 FUEL™ 3/8" Compact Impact Wrench w/ Friction Ring is the most compact in its class, delivering users the most access in tight spaces, up to 250 ft-lbs of nut-busting torque, and maximum workspace visibility. This battery-powered impact wrench measures only 4.8" in length with a POWERSTATE™ Brushless motor to provide the power to remove stubborn fasteners, even in confined spaces. The 3/8" Compact Impact Wrench has tri-LEDs that surround the anvil to deliver users brighter light with fewer shadows. 4-Mode DRIVE CONTROL™ offers greater precision with a range of pre-set RPM and IPM levels, selectable from a single button on the tool. By selecting Mode 4, AUTO SHUT-OFF™ control applies no more than 20 ft-lbs of torque for hand-tight fastening applications to prevent overtightening. Mode 4 also features Bolt Removal Control delivers full torque output, then decreases RPMs once the bolt is loosened to prevent fastener drops. MILWAUKEE® REDLINK PLUS™ Intelligence electronics make these controls possible while ensuring maximum performance, protecting the tool against overloads, over-heating, and over-discharge. MILWAUKEE® M18 REDLITHIUM™ XC5.0 Extended Capacity Resistant Battery Packs included provide increased protection against oils, greases, and solvents.

Features

• Mode 1 IPMs: 0-1,000; Mode 2 IPMs: 0-2,400; Mode 3 IPMs: 0-3,500; Mode 4 IPMs: 0-3,500
• Friction ring (hog ring) ensures quick and easy socket changes
• Compatible with all M18™ batteries & Chargers
• Works in up to to 69kV environments
• 4-Mode DRIVE CONTROL™ provides greater control over output speed and power. Includes auto shut-off and bolt-removal mode
• 4.8" in length provides most access in tight spaces
• Mode 1 RPMs: 0-800; Mode 2 RPMs: 0-1,650; Mode 3 RPMs: 0-2,400; Mode 4 RPMs: 0-2,400
• Tri-LEDs deliver high definition lighting to increase workspace visibility with less shadows
• Bolt Removal control delivers full torque output, then decreases RPMs once the bolt is loosened to prevent fastener drops
• AUTO SHUT-OFF™ control prevents over tightening and increases productivity by applying no more than 20 ft-lbs. of torque
• REDLINK PLUS™ Intelligence ensures maximum performance and protects from overloads, heating and over-discharge
• The POWERSTATE™ Brushless motor delivers up to 250 ft-lbs. of nut-busting torque

Specifications

• Anvil Type: Friction Ring
• Impacts Per Minute Range (IPM): 0 - 3,500
• Material: Metal
• Depth: 4.8 Inches
• Maximum Torque (ft-lbs): 250
• Weight Excluding Battery (lb): 2.4
• FUEL: Yes
• Badge Branding: FUEL™
• Fastening Torque: 250
• Battery System: M18™
• Color Finish: Red
• Battery Amp Hour (Ah): 5
• Battery Charger Input Voltage: 18
• Rotations Per Minute Range (RPM): 0 - 2,400
• Chuck Size: Not Applicable in
• Voltage: 18
• ONE-KEY Enabled: No
• DRIVE CONTROL: 4-Mode w/ Auto Shut-Off Mode & Bolt Removal Mode
• Motor Type: Brushless
• Weight - Battery Installed (lb): 3.9
• Maximum RPM: 2400
• Chuck Type: Not Applicable
• Country of Origin: Vietnam
• Power Source: Cordless
• Wrench Type: Compact
• Drive Size: 3/8"
• Anvil Size: 3/8 in
• Brushless Motor: Yes
• Power Tool Branding: FUEL™
