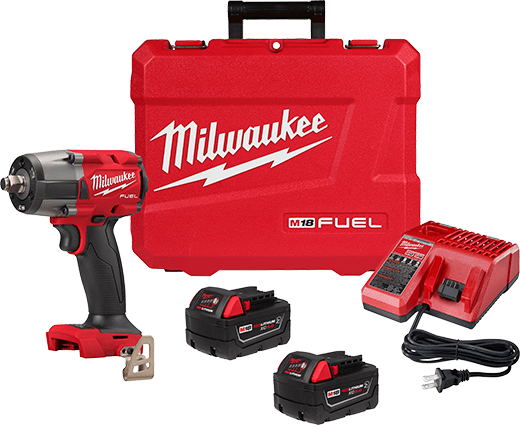

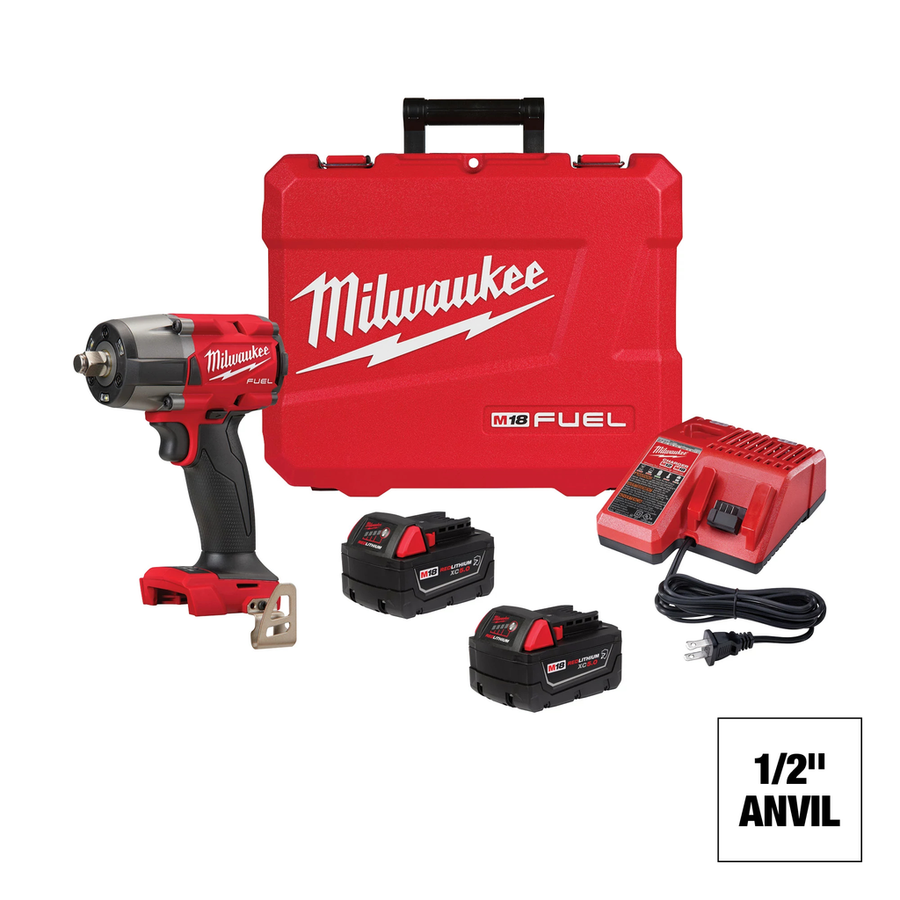

M18 FUEL™ 1/2 " Mid-Torque Impact Wrench w/ Friction Ring Kit

The MILWAUKEE® M18 FUEL™ 1/2" Mid-Torque Impact Wrench w/ Friction Ring Kit delivers the best power to weight ratio, most access in tight spaces, and faster removal speed. It provides 650 ft-lbs of nut-busting torque and only weighs 5.1 lbs, making it extremely versatile, capable of performing a wide variety of applications. Its POWERSTATE™ Brushless Motor generates the power needed to quickly perform many tasks, such as removing large bolts or lug nuts. Milwaukee 1/2" Impact Wrench is the most compact in its class, giving users access to stubborn fasteners in spaces where larger impact wrenches can’t fit without needing to disassemble components to reach bolts. Tri-LEDs surround the anvil to deliver brighter light with fewer shadows. 4-Mode DRIVE CONTROL™ offers greater precision with a range of pre-set RPM and IPM levels, selectable from a single button on the tool. By selecting Mode 4, AUTO SHUT-OFF™ control applies no more than 35 ft-lbs of torque for hand-tight fastening applications to prevent overtightening. Mode 4 also features Bolt Removal Control that delivers users full torque output, then decreases RPMs once the bolt is loosened to prevent fastener drops. MILWAUKEE® REDLINK PLUS™ Intelligence ensures maximum performance, protecting the tool against overloads, over-heating, and over-discharge. MILWAUKEE® M18 REDLITHIUM™ XC5.0 Extended Capacity Resistant Battery Packs included provide increased protection against oils, greases, and solvents.

Features

• Bolt Removal control delivers full torque output, then decreases RPMs once the bolt is loosened to prevent fastener drops
• 6.0" in length provides most access in tight spaces
• Faster Removal speed provides increased user productivity
• Friction ring (hog ring) ensures quick and easy socket changes
• Compatible with all M18™ batteries & Chargers

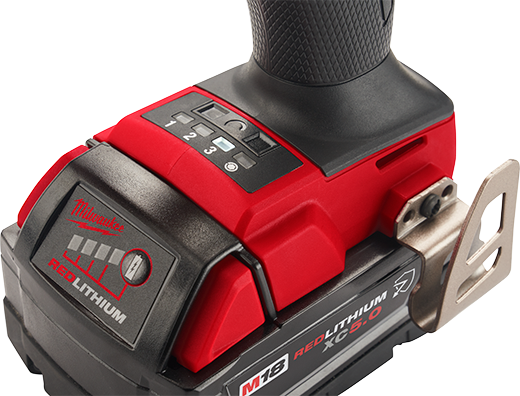

• 4-Mode DRIVE CONTROL™ provides greater control over output speed and power. Includes auto shut-off and bolt-removal control
• Tri-LEDs deliver high definition lighting to increase workspace visibility with less shadows
• Works in up to to 69kV environments
• Mode 1 RPMs: 0-1,250; Mode 2 RPMs: 0-1,950; Mode 3 RPMs: 0-2,575; Mode 4 RPMs: 0-2,575
• REDLINK PLUS™ Intelligence ensures maximum performance and protects from overloads, heating and over-discharge
• Mode 1 IPMs: 0-900; Mode 2 IPMs: 0-2,100; Mode 3 IPMs: 0-3,100; Mode 4 IPMs: 0-3,100
• AUTO SHUT-OFF™ control applies no more than 35 ft-lbs of torque for hand-tight fastening applications to prevent overtightening

Specifications

• DRIVE CONTROL: 4-Mode w/ Auto Shut-Off Mode & Bolt Removal Mode
• Rotations Per Minute Range (RPM): 0 - 2,575
• Weight Excluding Battery (lb): 3.9
• Anvil Type: Friction Ring
• Maximum Torque (ft-lbs): 650
• Maximum RPM: 2575
• Wrench Type: High Torque
• Battery Charger Input Voltage: 18
• FUEL: Yes
• Country of Origin: Vietnam
• Impacts Per Minute Range (IPM): 0 - 3,100
• Power Source: Cordless
• Depth: 6 Inches
• Chuck Type: Not Applicable
• Weight - Battery Installed (lb): 5.1
• Anvil Size: 1/2 in
• Battery System: M18™
• Chuck Size: Not Applicable in
• Color Finish: Red
• Motor Type: POWERSTATE™ Brushless
• Fastening Torque: 550
• Material: Metal
• Battery Amp Hour (Ah): 5
• Badge Branding: FUEL™
• Drive Size: 1/2"
• Power Tool Branding: FUEL™
• Voltage: 18
• ONE-KEY Enabled: No
• Brushless Motor: Yes
