Milwaukee Tool
M12 FUEL™ Stubby 1/2" Impact Wrench Kit
$399.00
Available to order
Free shipping on orders over $199. Free local delivery in the Springfield area.
- ✓ Free shipping over $199Under that, rates are calculated at checkout.
- ✓ Free local deliverySpringfield area, no minimum.
- ✓ Full Milwaukee factory warrantyWe are an authorized dealer, so your warranty is valid.
- ✓ 30-day returnsUnused and in the original box.
- ✓ Questions? Talk to a person(217) 793-2940 - Mon-Thu 7-4:30, Fri 7-4
Details

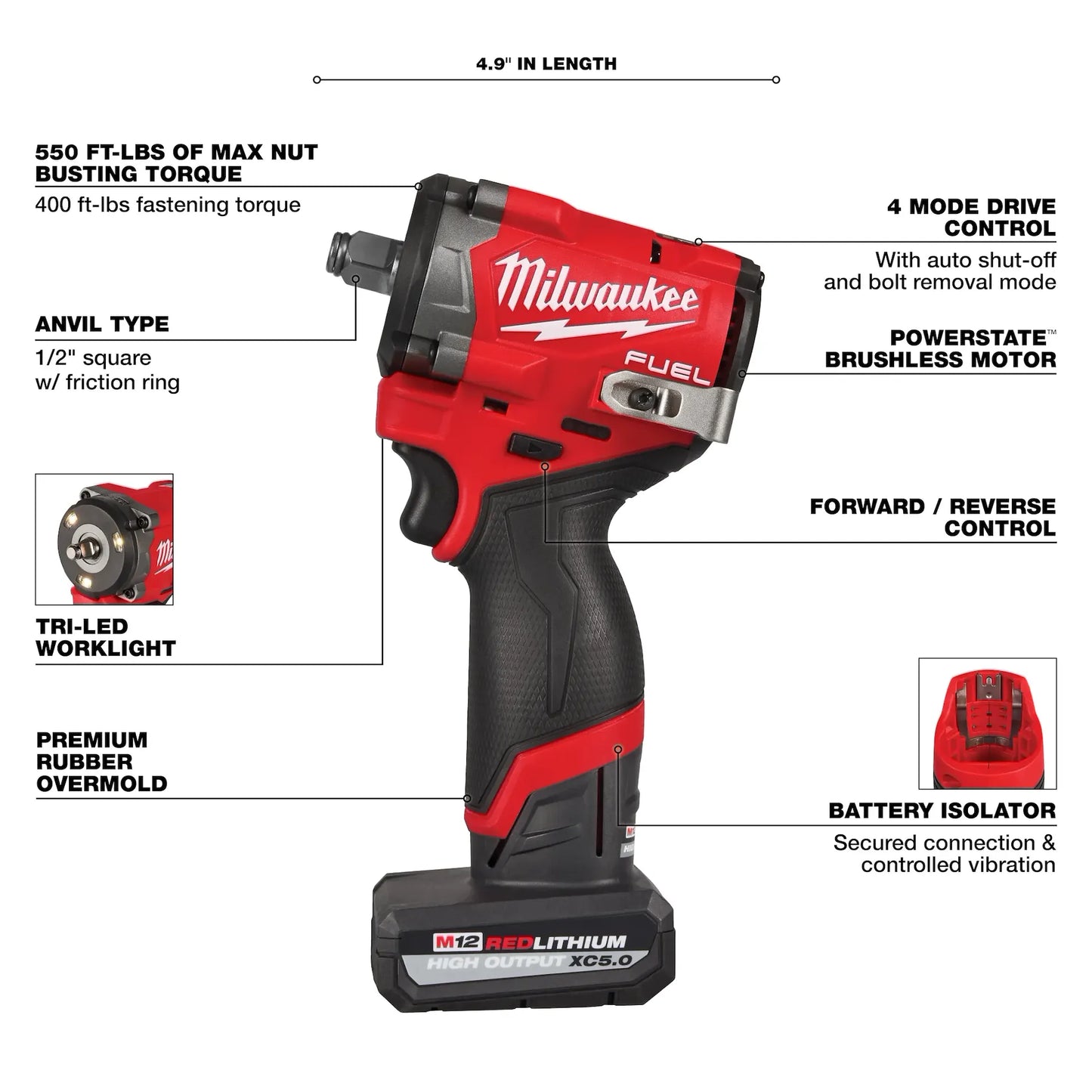

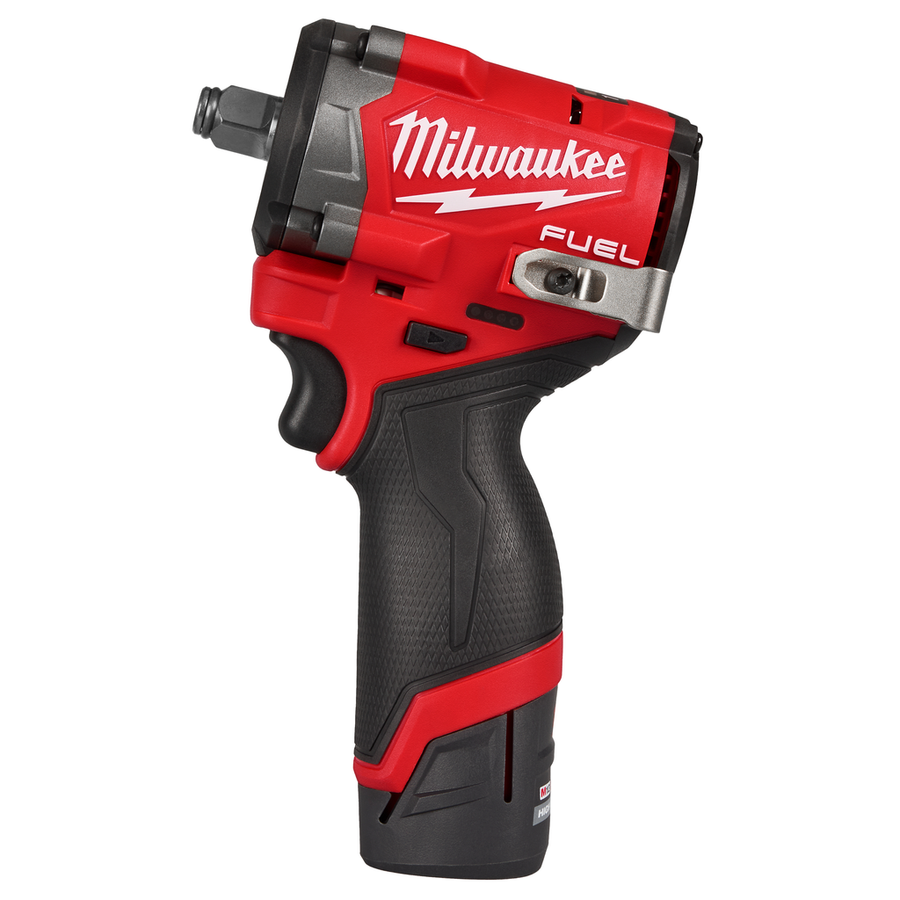

The Milwaukee M12 FUEL™ Stubby 1/2" Impact Wrench (model 2563-22) is a compact, high-torque cordless impact wrench that delivers up to 550 ft-lbs of nut-busting torque while measuring just 4.9" in length and weighing 2.2 lbs as a bare tool. This is a kit — it ships with M12™ REDLITHIUM™ batteries and a charger, ready to run out of the box.
What it does well
- POWERSTATE™ brushless motor produces 0–3,000 RPM and up to 550 ft-lbs of nut-busting torque to break loose corroded and stubborn fasteners
- 4-Mode DRIVE CONTROL™ lets you tune output speed and power, and includes an Auto Shut-Off mode that applies no more than 15 ft-lbs for hand-tight fastening plus a bolt-removal mode that slows RPM once a bolt is free
- Single-handed mode changes: shift the forward/reverse shuttle to neutral and double-tap the trigger to switch modes without stopping
- Tri-LED work lights illuminate the work area with reduced shadows; friction-ring anvil allows fast socket changes
Is this the right impact wrench for you?
At 4.9" long and 2.2 lbs bare, this stubby M12 is built for technicians and mechanics who need serious fastening power in tight spaces where a full-size impact won't fit. If you already run the M12™ battery platform and want a compact 1/2" drive that still reaches 550 ft-lbs, this kit is a strong fit. If you need higher torque for heavy structural or automotive work, step up to an M18 impact instead.
What's in the box
- M12 FUEL™ Stubby 1/2" Impact Wrench (2563-20)
- M12™ REDLITHIUM™ HIGH OUTPUT™ XC5.0 battery pack
- M12™ REDLITHIUM™ CP2.0 battery pack
- M12™ charger
Specifications
| Model | 2563-22 |
| Battery System | M12™ (12V) |
| Motor | POWERSTATE™ Brushless |
| Anvil Size | 1/2" |
| Anvil Type | Friction Ring |
| Nut-Busting Torque | Up to 550 ft-lbs |
| Fastening Torque | 400 ft-lbs |
| RPM | 0–3,000 |
| Impacts Per Minute (IPM) | 0–3,300 |
| DRIVE CONTROL™ | 4-Mode w/ Auto Shut-Off & Bolt Removal |
| Length (Depth) | 4.9" |
| Weight (bare tool) | 2.2 lbs |
| ONE-KEY Enabled | No |
| Country of Origin | Mexico |
