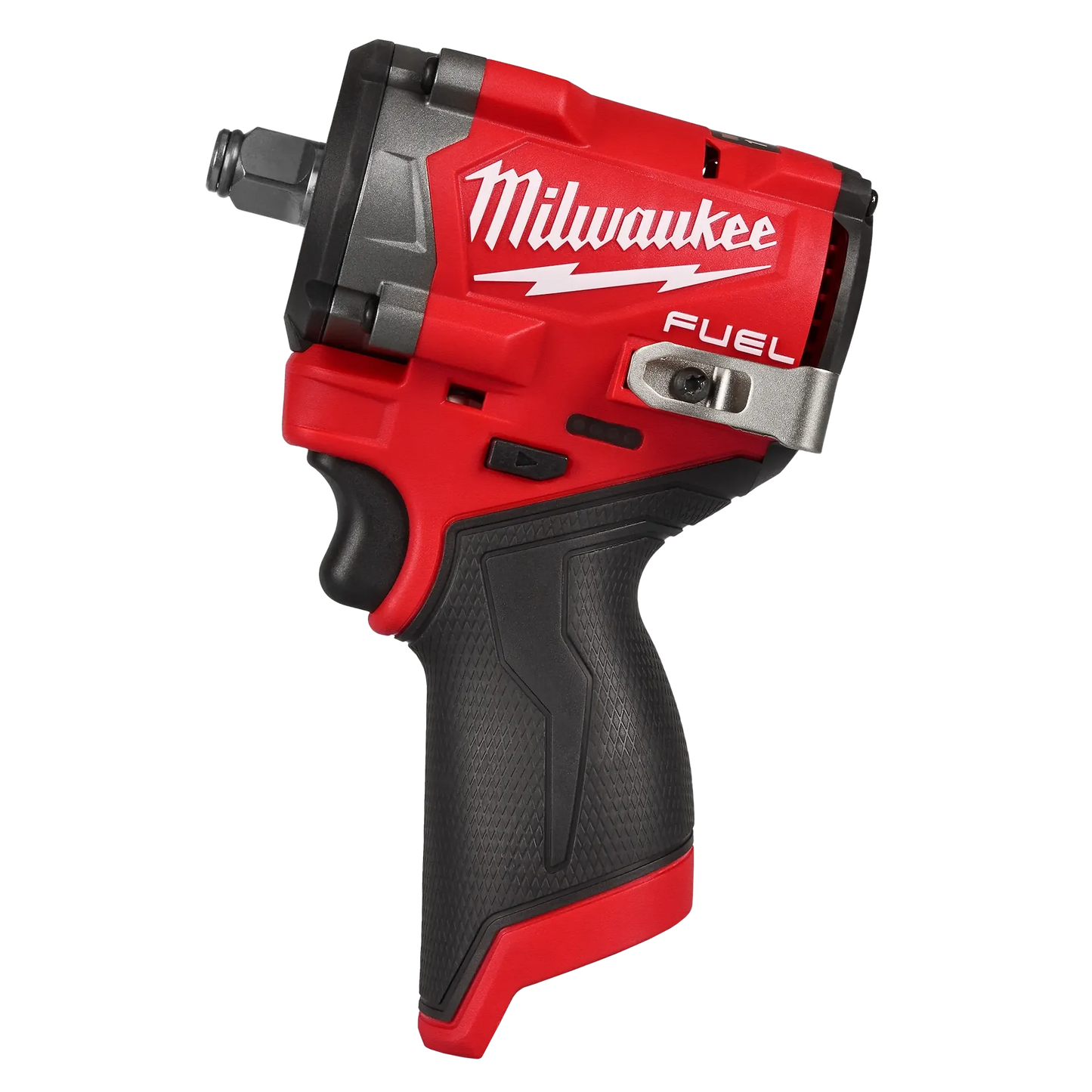

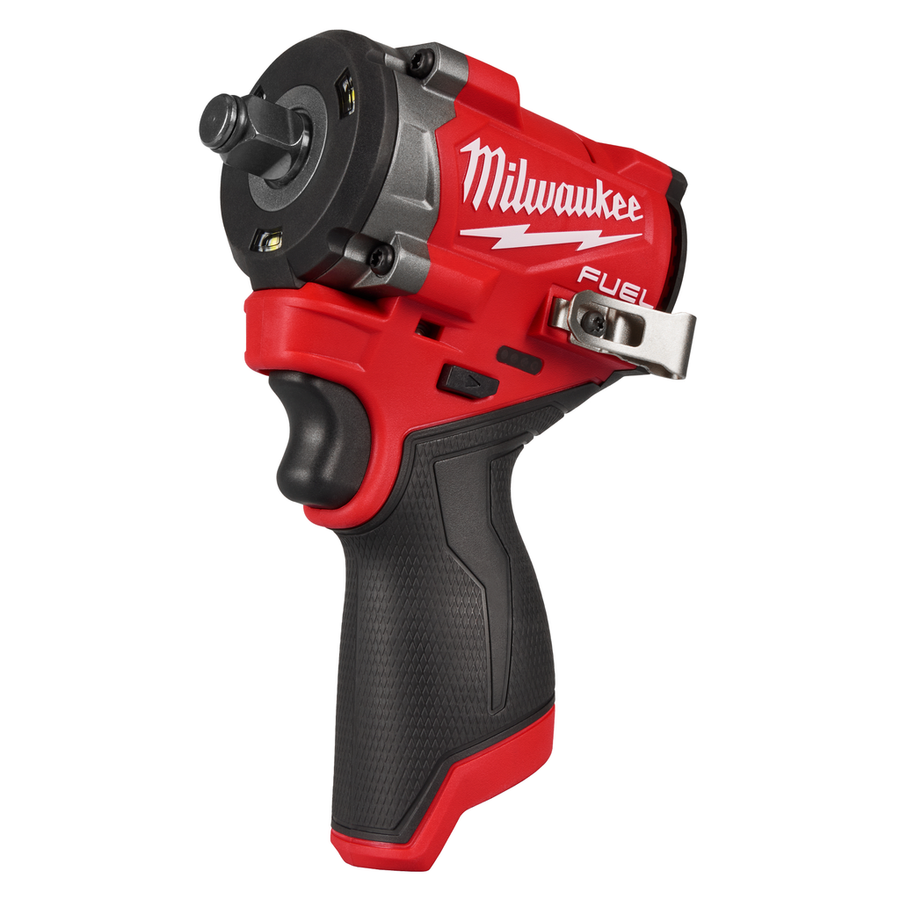

M12 FUEL™ Stubby 1/2" Impact Wrench

The Milwaukee M12 FUEL™ Stubby 1/2" Impact Wrench (model 2563-20) is a compact, brushless cordless impact wrench that delivers up to 550 ft-lbs of nut-busting torque from a tool that weighs just 2.2 lbs bare and measures 4.9" front to back. This listing is for the bare tool only — M12™ battery and charger are sold separately.

What it does well

• Produces up to 550 ft-lbs of nut-busting torque and 400 fastening torque to break loose corroded and stubborn fasteners.
• POWERSTATE™ brushless motor drives 0–3,000 RPM and 0–3,300 IPM in a 4.9" long, 2.2 lb bare-tool package that reaches into tight spaces.
• 4-Mode DRIVE CONTROL™ lets you dial in speed and power, with an AUTO SHUT-OFF™ mode that applies no more than 15 ft-lbs for hand-tight applications and a bolt-removal mode that slows RPM once a bolt breaks free.
• Friction-ring anvil for fast socket changes and Tri-LED work lights that reduce shadows in the work area.

Is this the right impact wrench for you?

Choose the 2563-20 if you already run the M12™ system and need a short, light 1/2" impact for automotive, fleet, and maintenance work in confined spaces where a full-size gun won't fit. Because it ships as a bare tool, it's best for buyers who already own M12™ batteries and a charger; if you're new to the platform, pick up a battery and charger separately or look for a kit.

What's in the box

• M12 FUEL™ Stubby 1/2" Impact Wrench (2563-20)
• M12™ battery and charger sold separately

Specifications

Downloads

• Warranty Document
