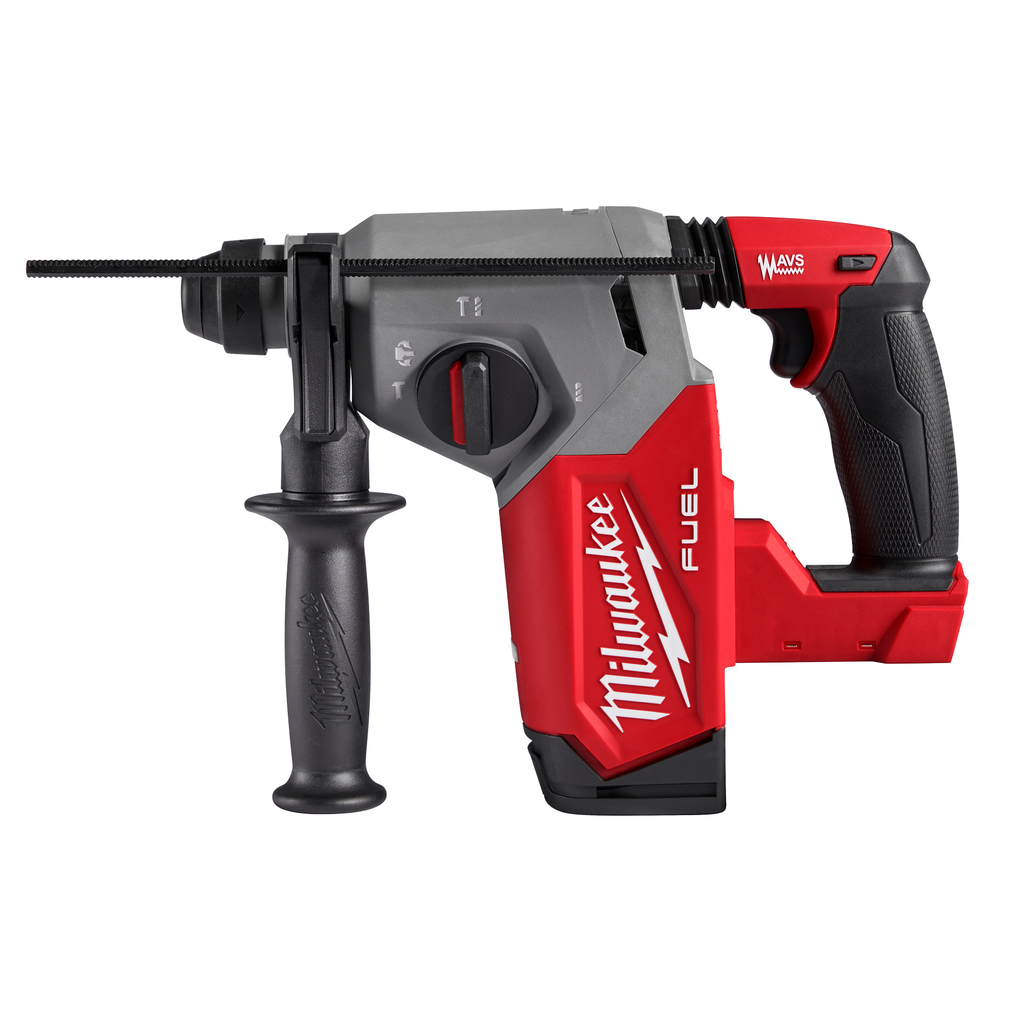

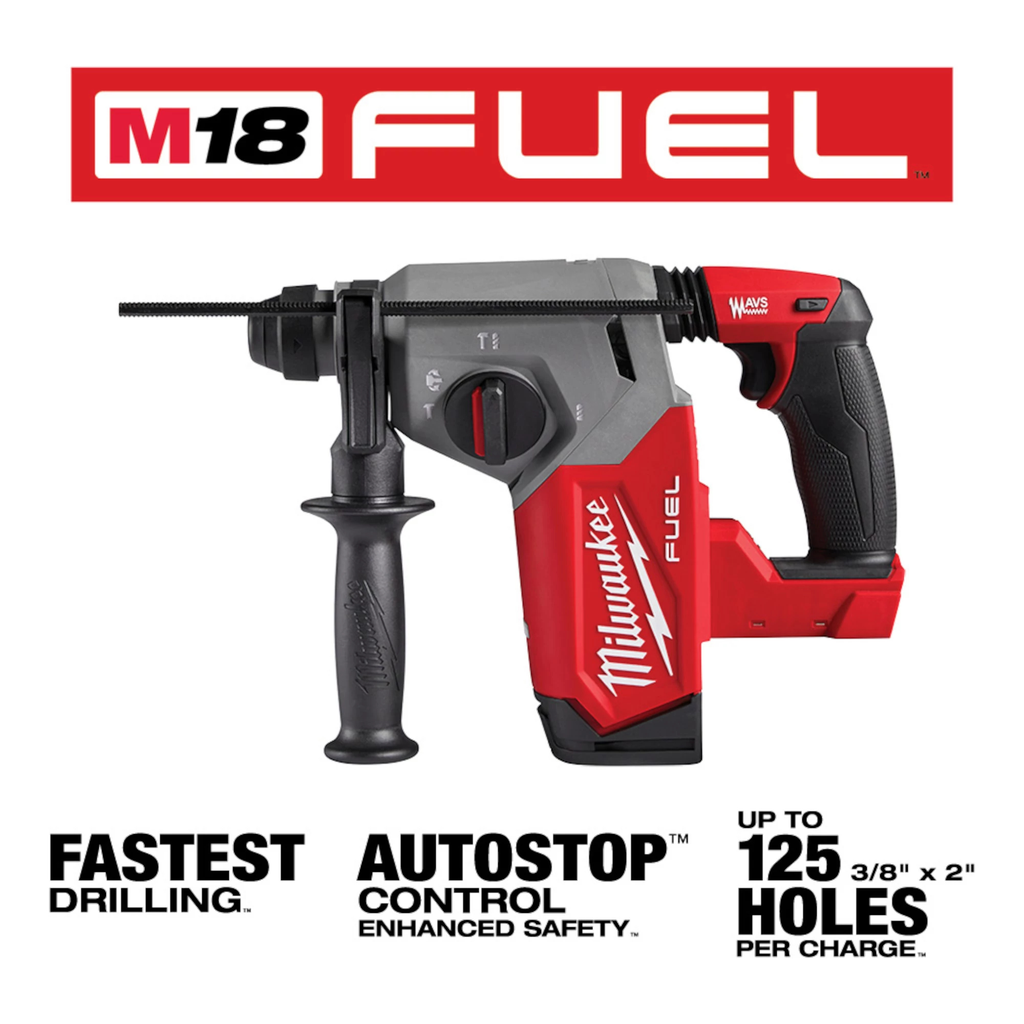

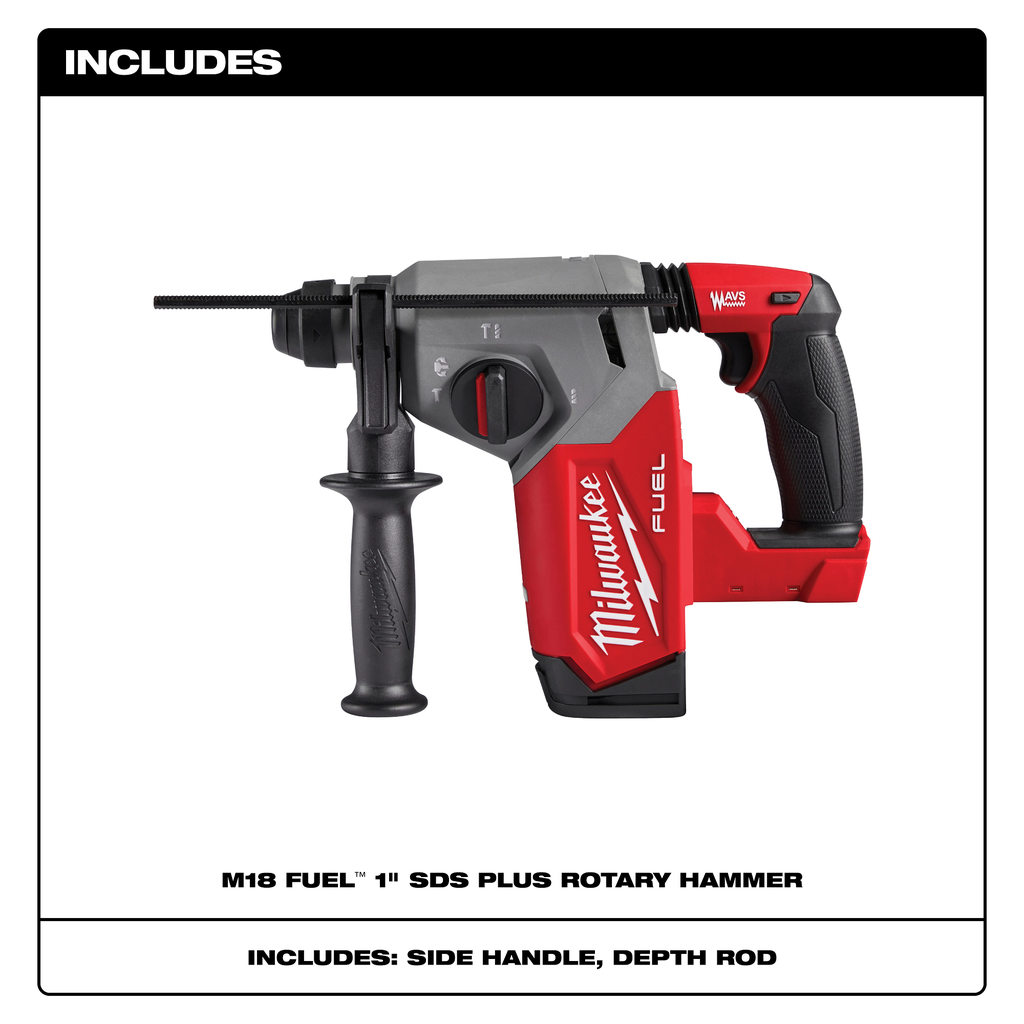

M18 FUEL™ 1" SDS Plus Rotary Hammer

The MILWAUKEE® M18 FUEL™ 1" SDS Plus Rotary Hammer is the next generation of cordless rotary hammers delivering ultimate jobsite performance and productivity. The M18 FUEL™ 1" SDS Plus Rotary Hammer is the fastest drilling rotary hammer in its class, includes AUTOSTOP™ Control for enhanced safety, and can drill up to (125) 3/8" x 2" holes per charge when paired with the M18™ HIGH OUTPUT™ XC6.0 Battery. The POWERSTATE™ Brushless Motor delivers 2 ft-lbs of impact energy, 1,330 RPM, and 4,800 BPM, providing speed and power in the most demanding applications. REDLINK PLUS™ intelligence tool technology ensures maximum rotary drill performance and protects it from overload, overheating, and over-discharge. The M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery delivers 50% more power while running 50% cooler than the M18™ REDLITHIUM™ XC batteries. This hammer provides maximum control and enhanced safety with the AUTOSTOP™ Kickback Control. This feature prevents over-rotation if the tool gets bound up while drilling in rebar or hard aggregate. Milwaukee's AVS Anti-Vibration System minimizes vibration for maximum comfort.

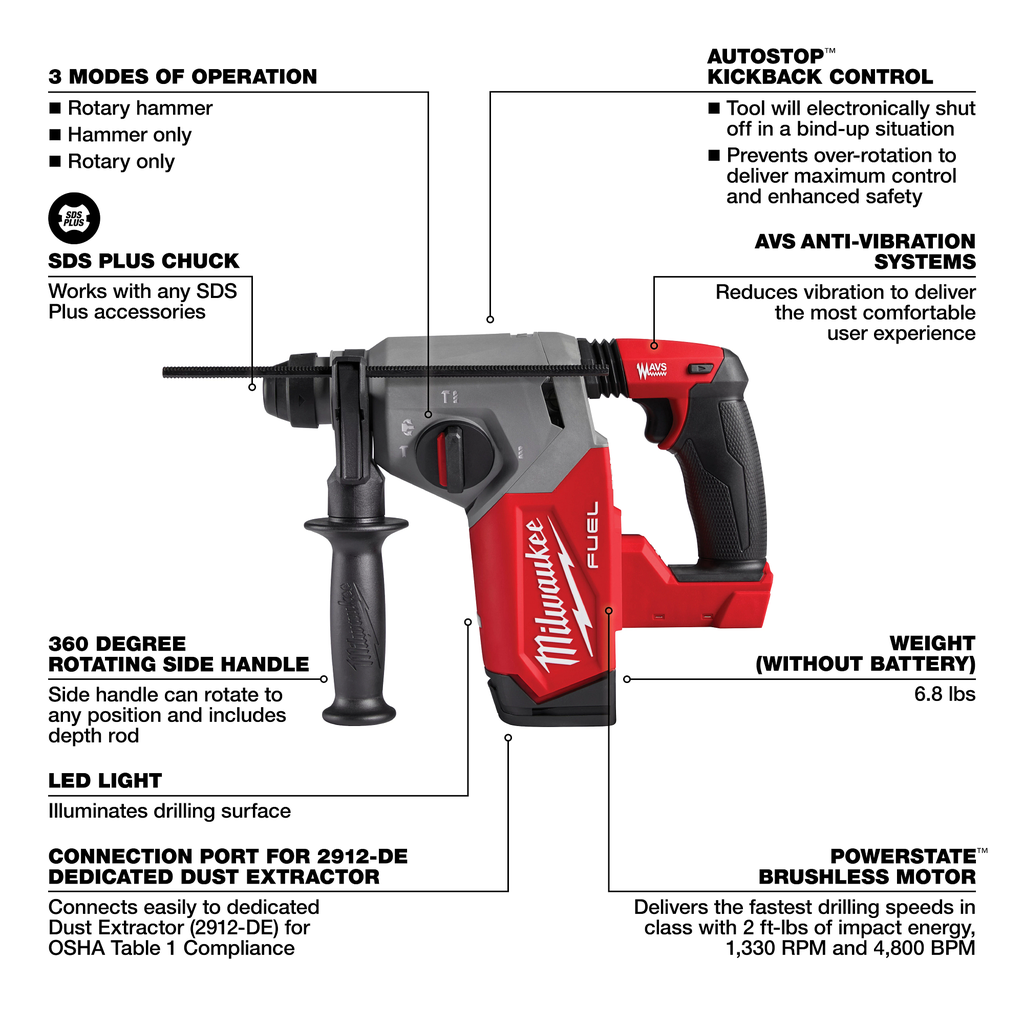

Features

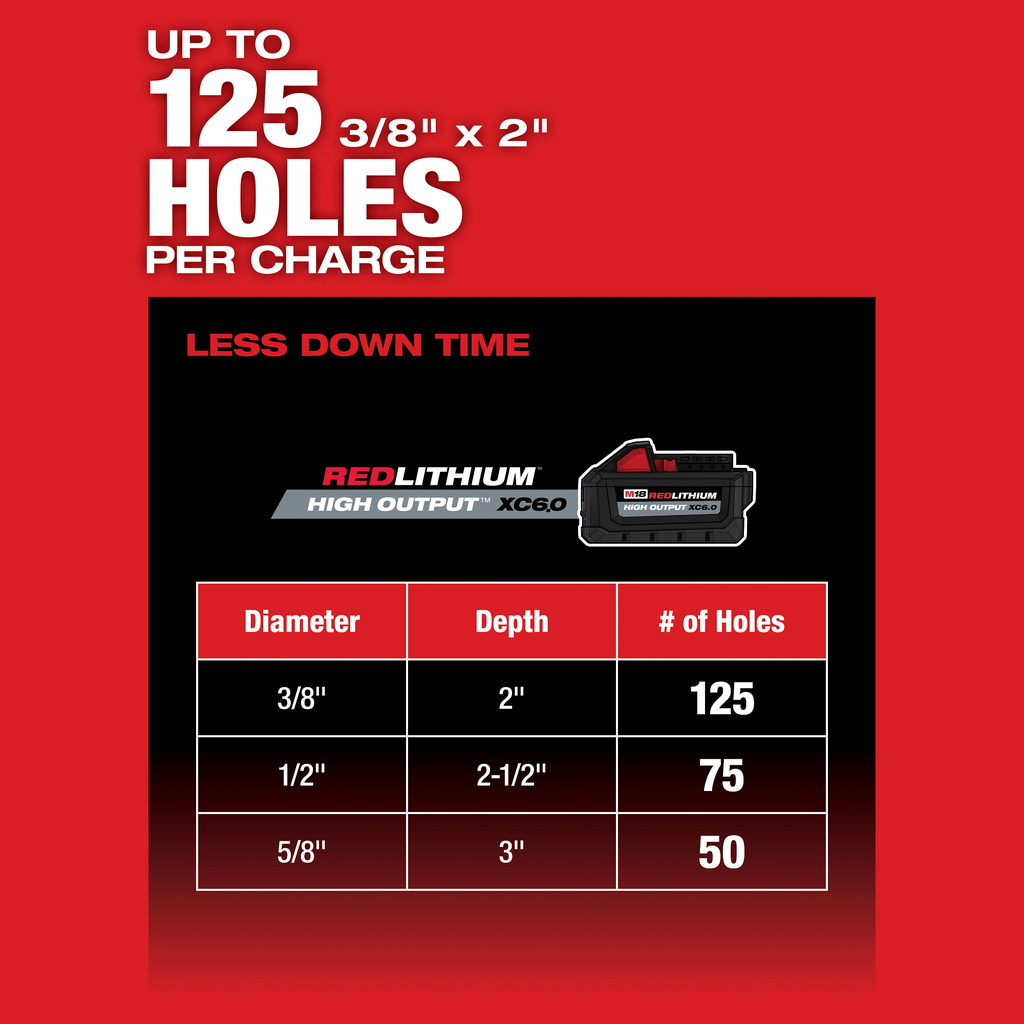

• With the M18 REDLITHIUM HIGHOUTPUT 6.0 Battery, the M18 FUEL 1" SDS Plus Rotary Hammer can deliver up to 125 holes of runtime of 3/8" x 2" holes
• The M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery Pack provides 50% more power and runs 50% cooler vs M18™ REDLITHIUM™ XC battery packs

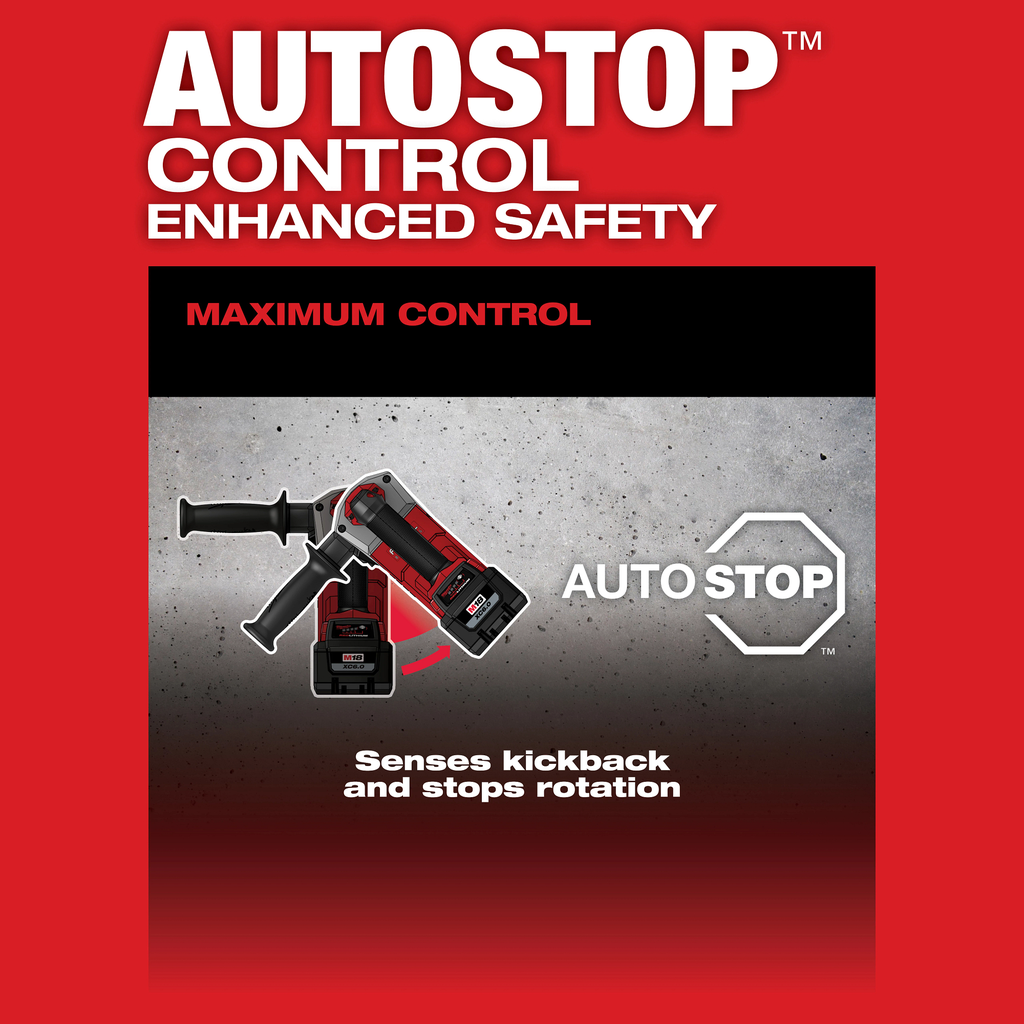

• AUTOSTOP Kickback Control enhances safety by electronically sensing a tool bind-up and shutting the tool off
• POWERSTATE™ Brushless Motor: Provides 2 ft-lbs of impact energy, 1,330 RPM, and 4,800 BPM

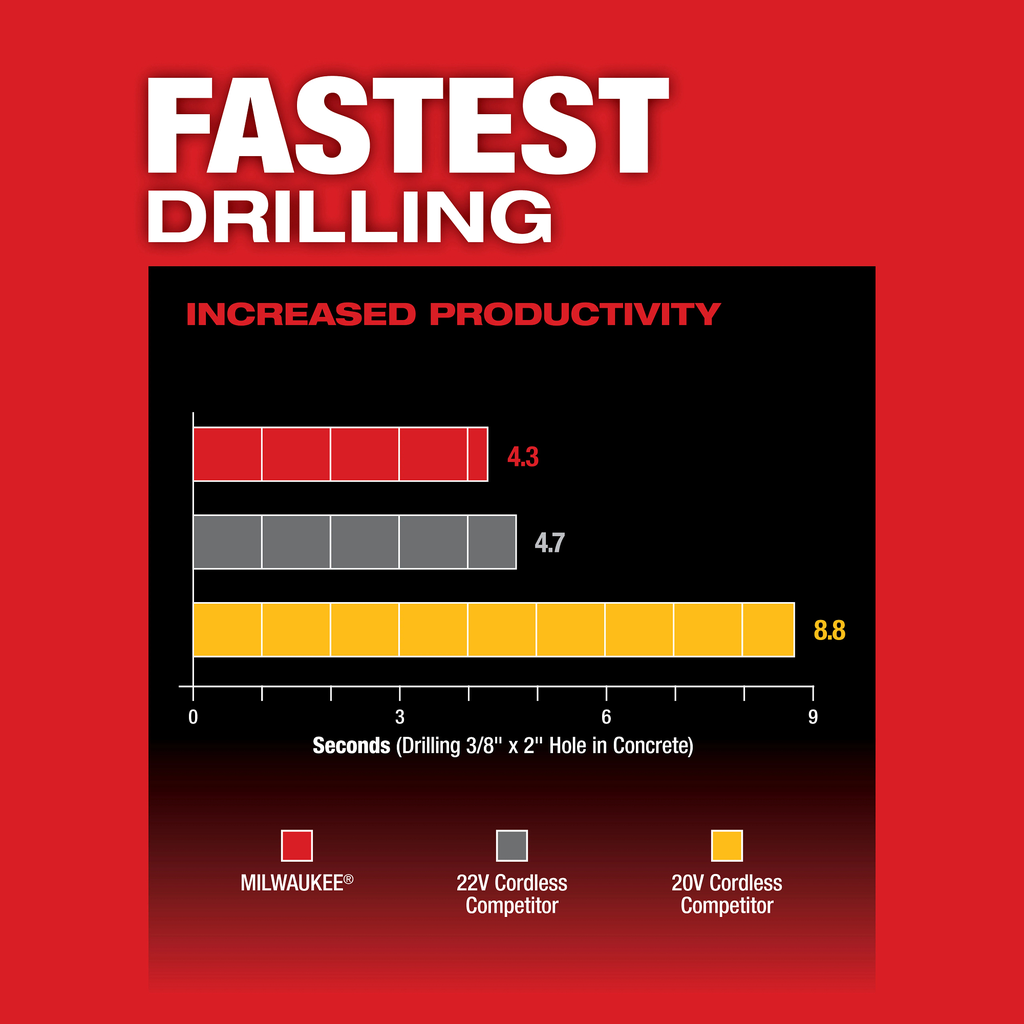

• Fastest drilling rotary hammer in class
• REDLINK PLUS™ Intelligence: Integrates full-circle communication between tool, battery and charger to protect from overloading, overheating, and over-discharging
• AVS Anti-Vibration System: Minimizes vibration for maximum comfort
• 3 Mode: Rotary Hammer, Hammer Only, Rotary Only

Specifications

• Country of Origin: Vietnam
• Power Source: Cordless
• Power Tool Branding: FUEL™

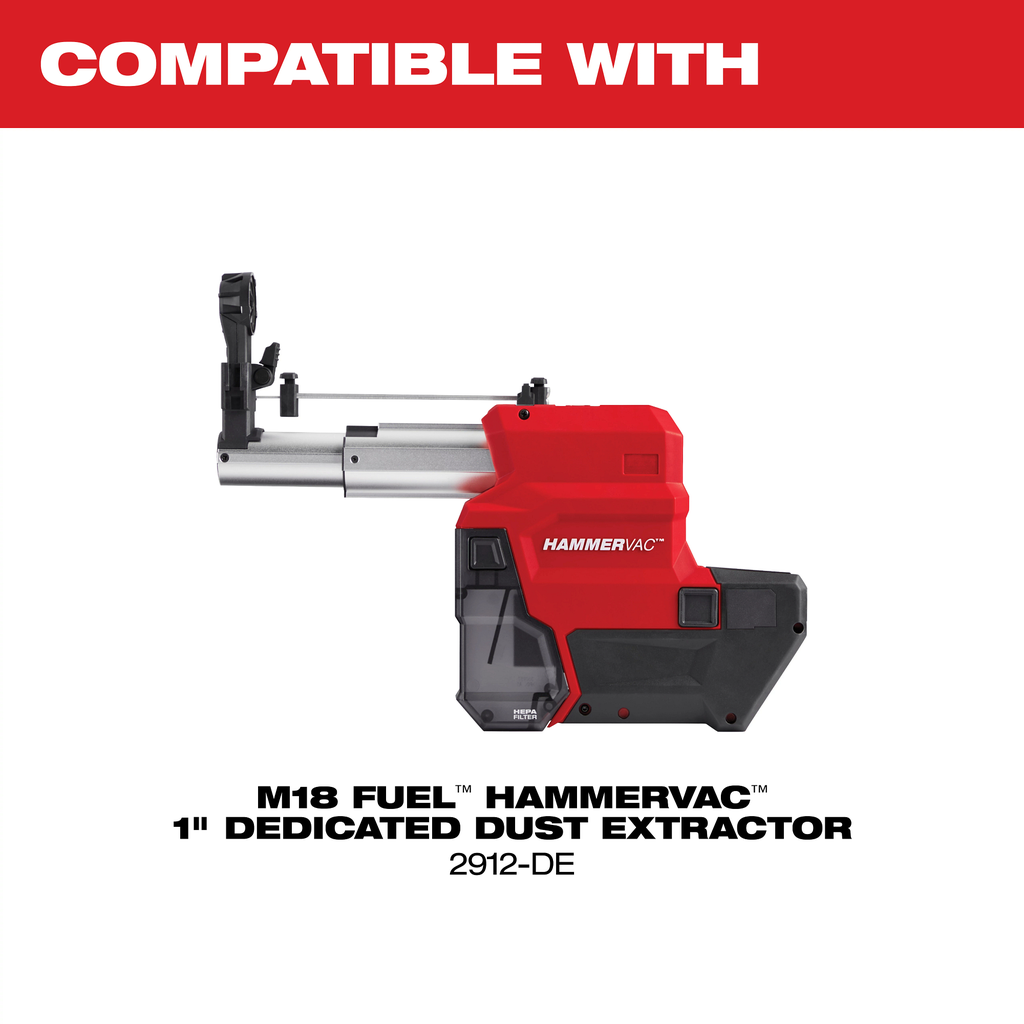

• Dust Extractor Included: No
• Motor Type: POWERSTATE™ Brushless
• Badge Branding: FUEL™
• Battery System: M18™
• Chuck Type: SDS Plus
• Maximum RPM: 1330
• Rotary Hammer Size: 1 in
• FUEL: Yes
• Switch Type: Trigger
• Weight Excluding Battery (lb): 6.8
• Voltage: 18
• Chuck Size: 1 in
• Blows Per Minute (bpm): 4800
• Battery Charger Input Voltage: 18
• Depth: 11.5 Inches
• Material: Metal
• Weight - Battery Installed (lb): 6.8
• ONE-KEY Enabled: No
• Color Finish: Black;Red
• Brushless Motor: Yes
• Handle Type: Drop Motor
