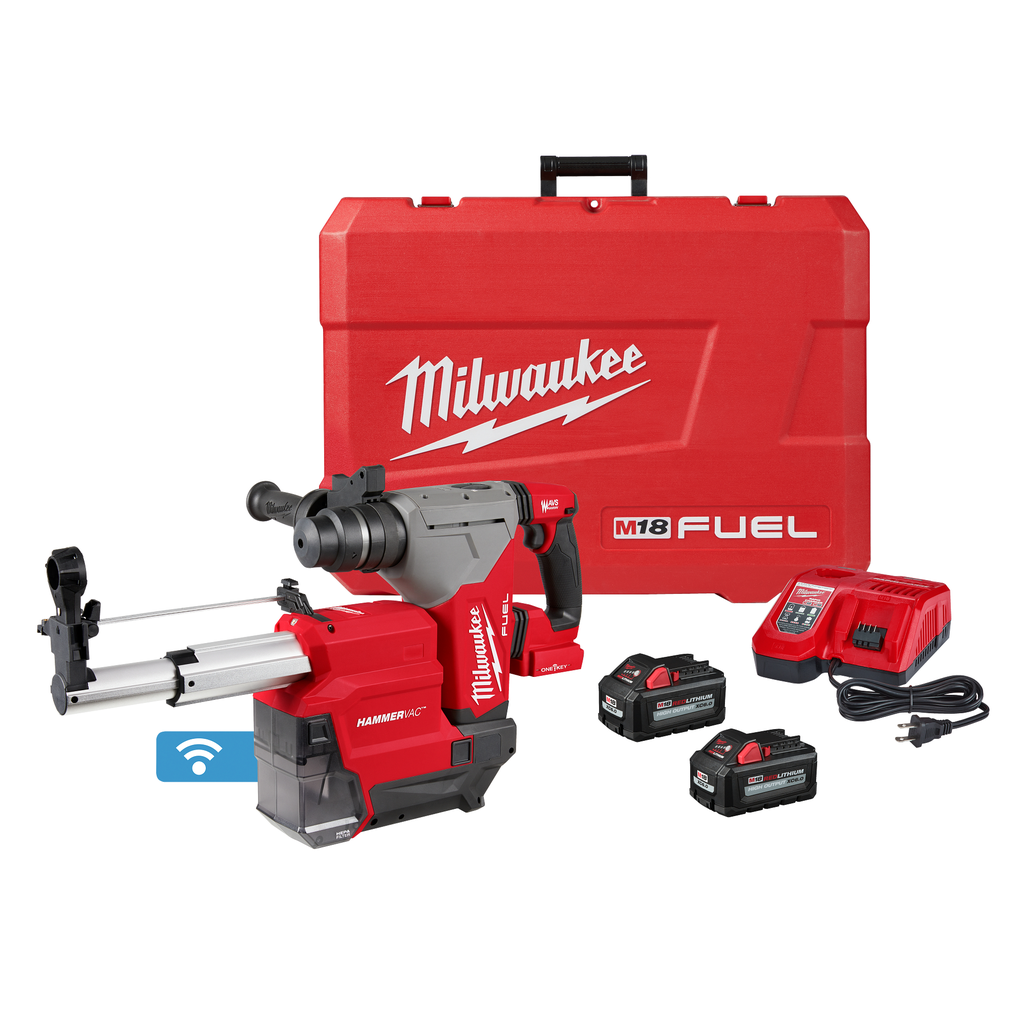

M18 FUEL™ 1-1/8" SDS Plus Rotary Hammer w/ ONE-KEY™ & HAMMERVAC™ Dedicated Dust Extractor Kit

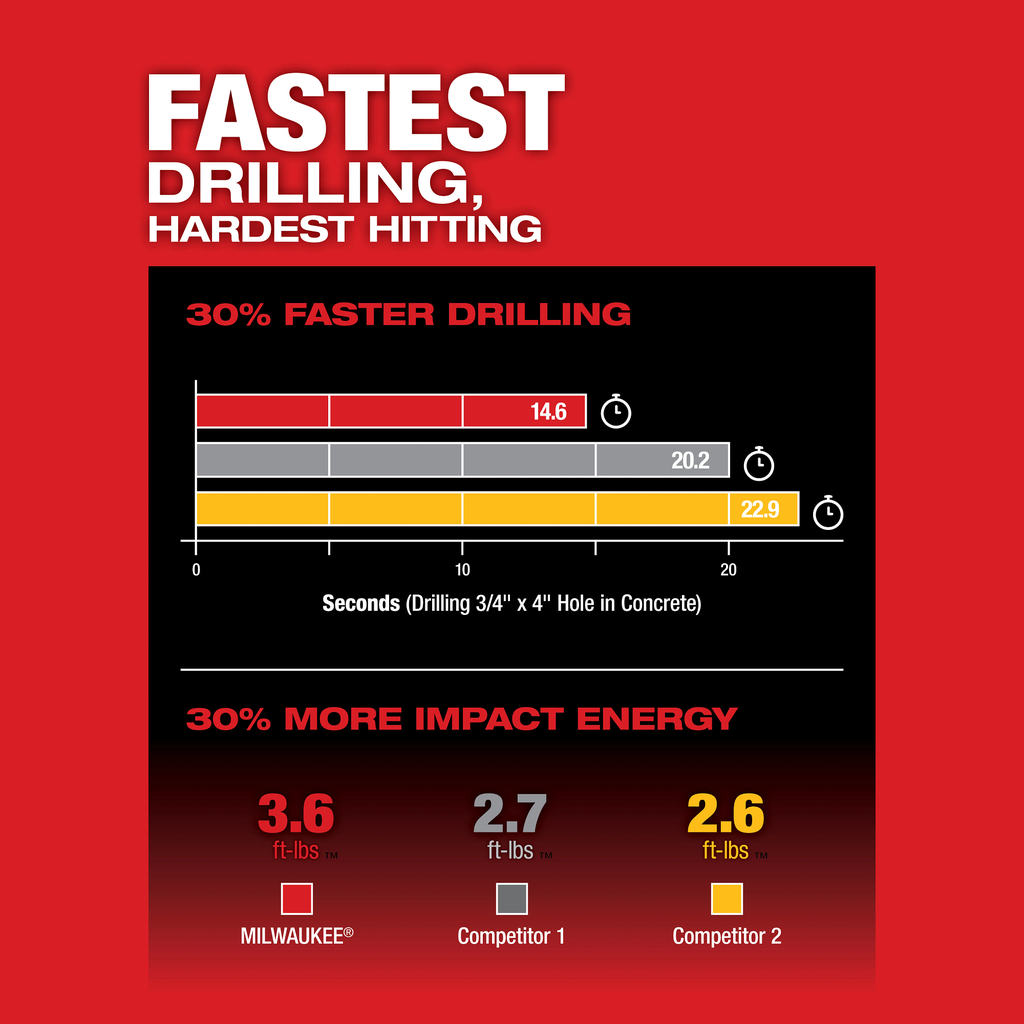

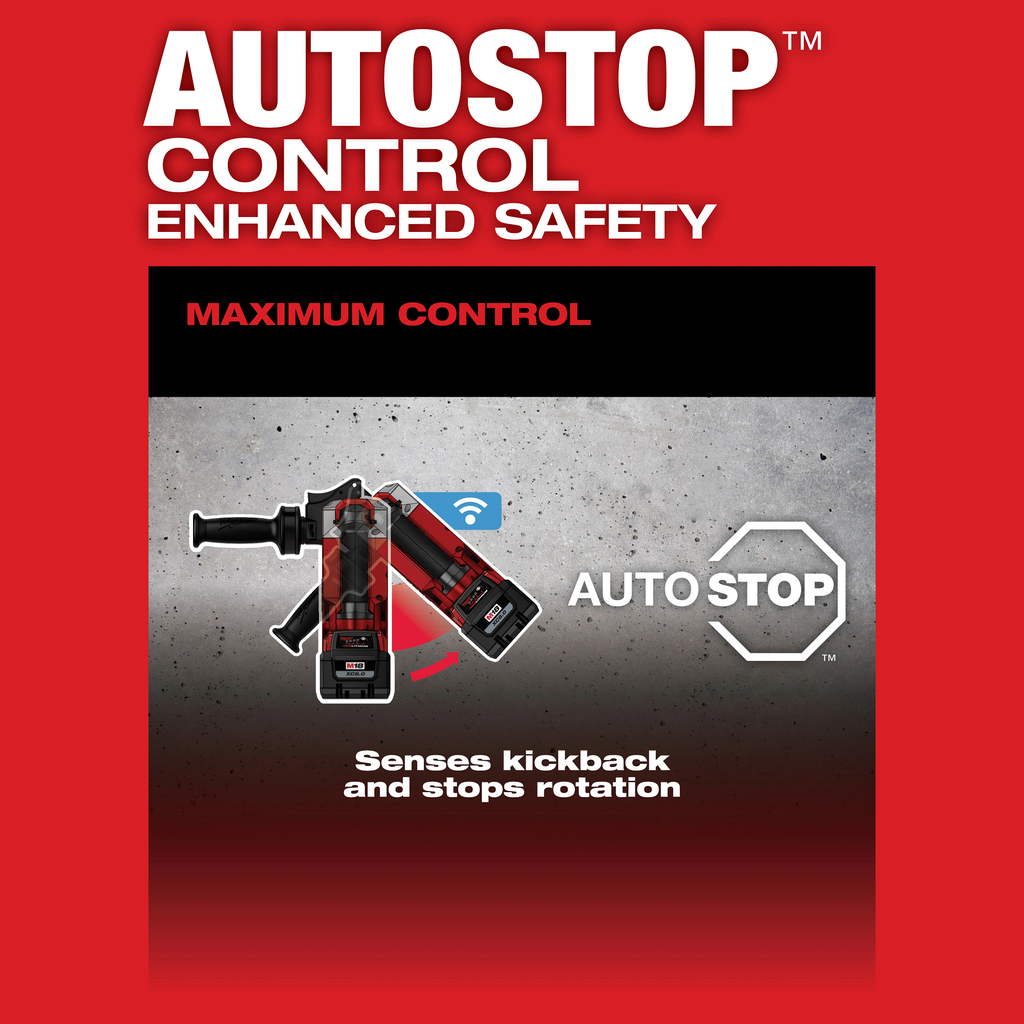

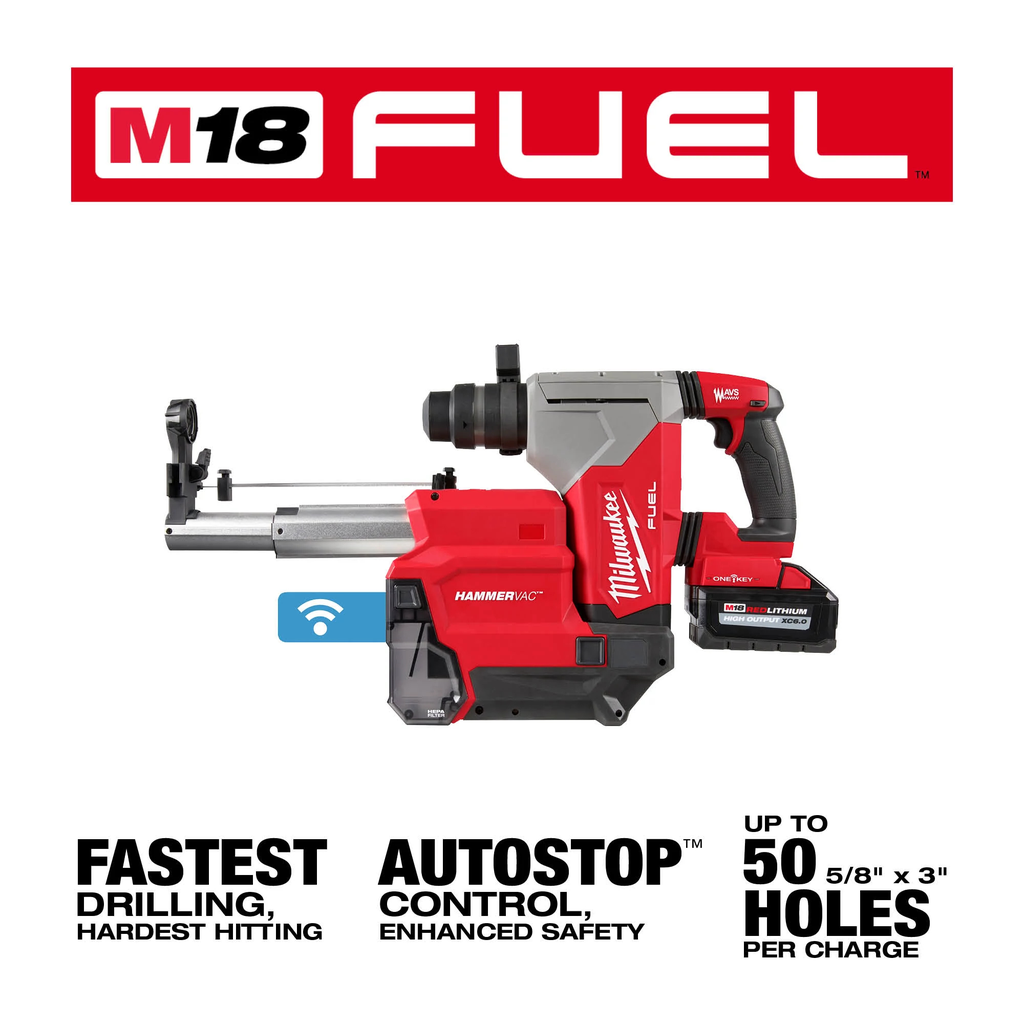

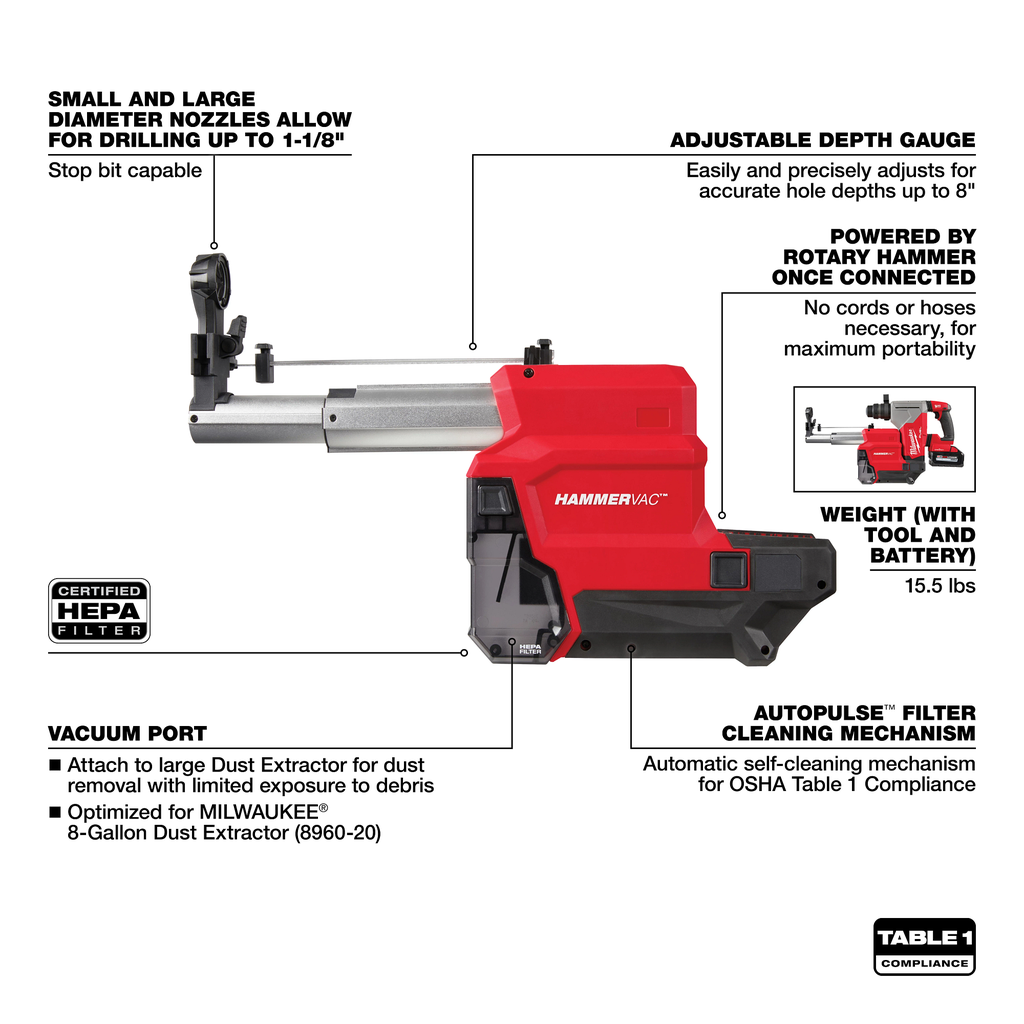

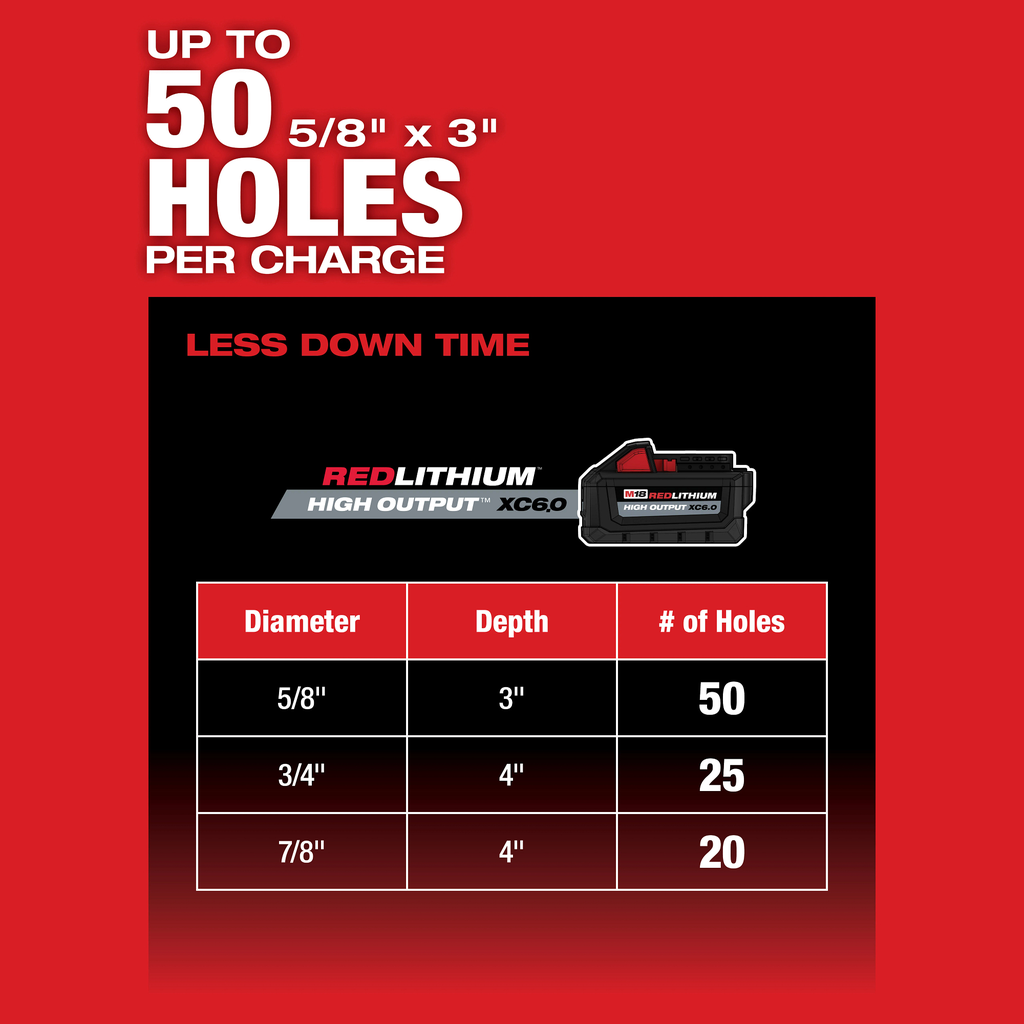

The MILWAUKEE® M18 FUEL™ 1-1/8" SDS Plus Rotary Hammer w/ ONE-KEY™ & HAMMERVAC™ Dedicated Dust Extractor Kit is the next generation of cordless rotary hammers delivering ultimate jobsite performance and productivity. The M18 FUEL™ 1-1/8" SDS Plus Rotary Hammer is the fastest drilling and hardest-hitting rotary hammer in its class with AUTOSTOP™ Control for enhanced safety, drilling up to 50 5/8" x 3" holes per charge when paired with the M18™ HIGH OUTPUT™ XC6.0 Battery. This cordless hammer drill provides maximum control and enhanced safety with the AUTOSTOP™ Kickback Control. This feature prevents over-rotation if the tool gets bound up while drilling in rebar or hard aggregate. The Milwaukee M18 FUEL™ HAMMERVAC™ 1-1/8" Dedicated Dust Extractor features an inline design engineered to connect directly to and be power by the M18 FUEL™ 1-1/8” SDS Plus Rotary Hammer. Utilizing the same replaceable certified HEPA filter as other HAMMERVACS™, which filters 99.97% of all particles greater than 0.3µm, means more compatibility on the jobsite. The built-in adjustable depth stop and ruler offer easy and precise adjustments. This dust extractor has OSHA Table One Compliance for respirable crystalline silica when drilling up to 1-1/8" in diameter and 8" in depth. This extractor features AUTOPULSE™ Filter Cleaning Mechanism that automatically cleans the filter after each use. The dust box comes equipped with a vacuum port for suctioning out the dust with a large vacuum or dust extractor instead of dumping the dust out into a trash receptacle.

Features

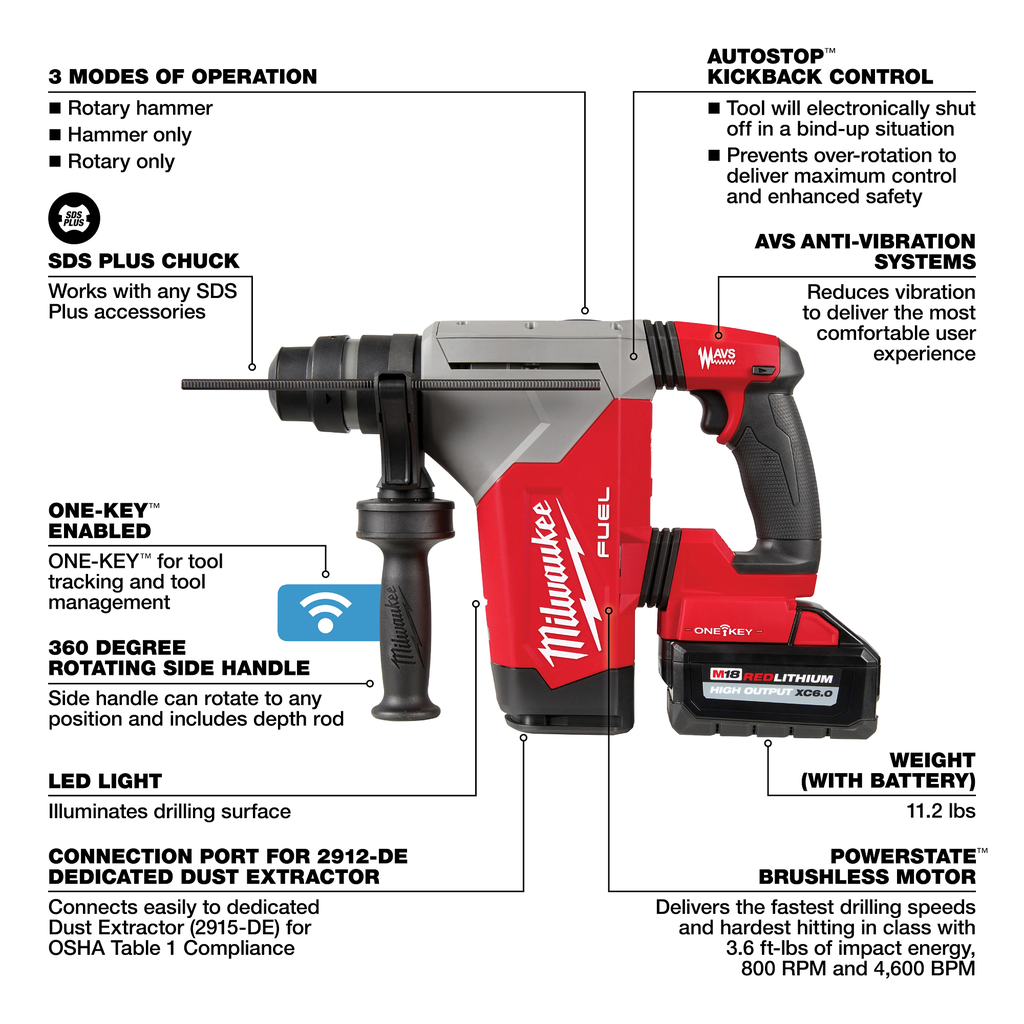

• AUTOPULSE Filter Cleaning Mechanism cleans the dust extractor filter automatically after use
• AVS Anti-Vibration System: Minimizes vibration for maximum comfort
• 3 Mode: Rotary Hammer, Hammer Only, Rotary Only
• REDLINK PLUS™ Intelligence: Integrates full-circle communication between tool, battery and charger to protect from overloading, overheating, and over-discharging
• 3.6 ft-lbs Impact Energy
• POWERSTATE™ Brushless Motor provides more power, more run-time, and longer life
• OSHA Table 1 Compliant Solution
• The M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery Pack provides 50% more power and runs 50% cooler vs M18™ REDLITHIUM™ XC battery packs
• Dust Extractor Capacity: Up to 1-1/8" in Diameter and Up to 8" in Depth
• ONE-KEY™ technology allows for tracking, tool security, and inventory management

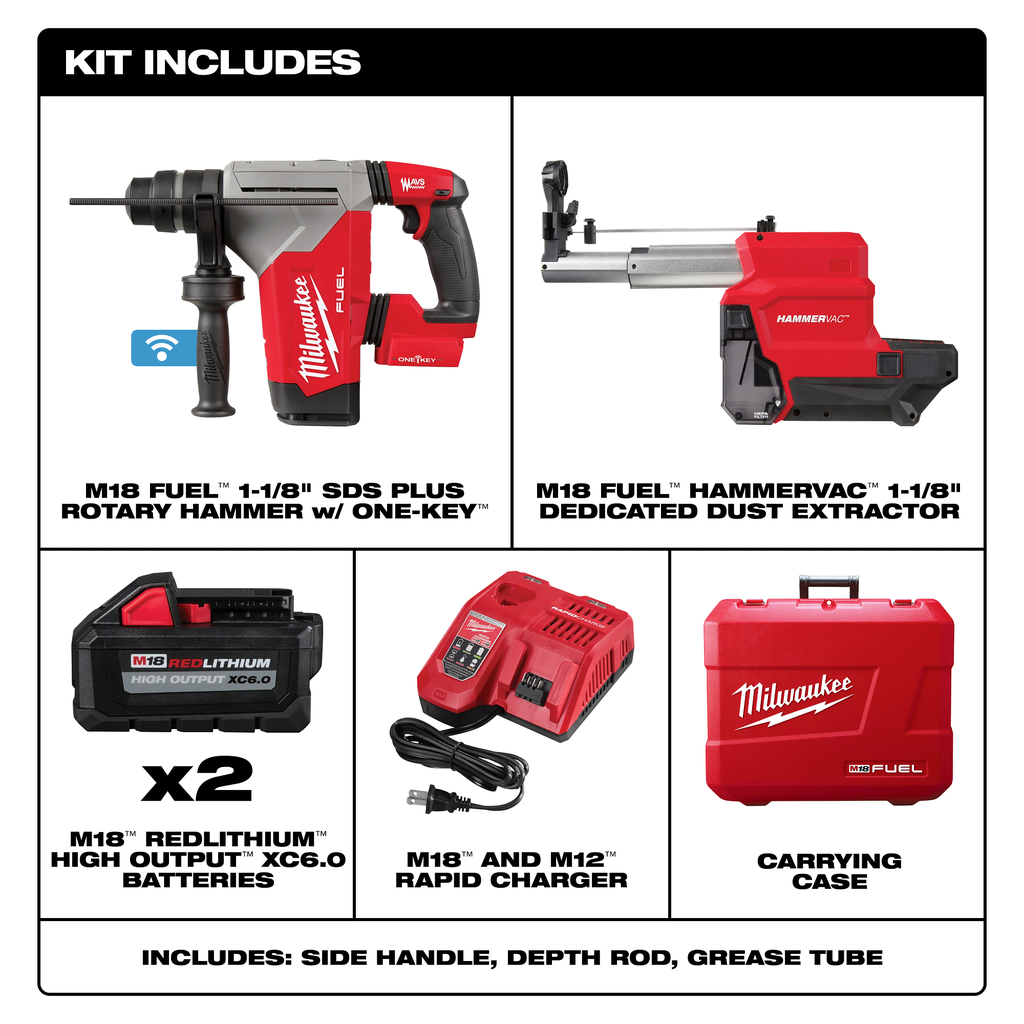

• Includes M18 HAMMERVAC 1-1/8" Dedicated Dust Extractor
• 800 RPM and 4,600 BPM

Specifications

• Dust Extractor Included: Yes
• Rotary Hammer Size: 1-1/8 in
• Handle Type: Drop Motor
• Battery Charger Input Voltage: 18
• Weight Excluding Battery (lb): 13.2
• Color Finish: Black;Gray;Red
• Power Source: Cordless
• Voltage: 18
• Power Tool Branding: FUEL™
• ONE-KEY Enabled: Yes
• Country of Origin: Vietnam
• Battery System: M18™
• Blows Per Minute (bpm): 4600
• FUEL: Yes
• Motor Type: POWERSTATE™ Brushless
• Maximum RPM: 800
• Switch Type: Trigger
• Number of Batteries Required: 1
• Badge Branding: FUEL™
• Chuck Type: SDS Plus
• Brushless Motor: Yes
• Weight - Battery Installed (lb): 15.7
• Chuck Size: 1-1/8 in
• Depth: 15.2 Inches
• Material: Metal
