M18 FUEL™ 1-1/4” SDS Plus D-Handle Rotary Hammer Kit w/ ONE-KEY™

The Milwaukee M18 FUEL 1-1/4" SDS Plus D-Handle Rotary Hammer (2916-22) is a cordless kit built to deliver drilling speeds normally associated with SDS Max hammers in a lighter tool. Because the SKU ends in -22, this is a kit — it includes the rotary hammer plus M18 REDLITHIUM HIGH OUTPUT XC6.0 batteries and a charger. The in-line D-Handle design reaches into tight spaces and balances well for downward drilling, and the tool is ONE-KEY enabled for tracking, security, and inventory management.

What it does well

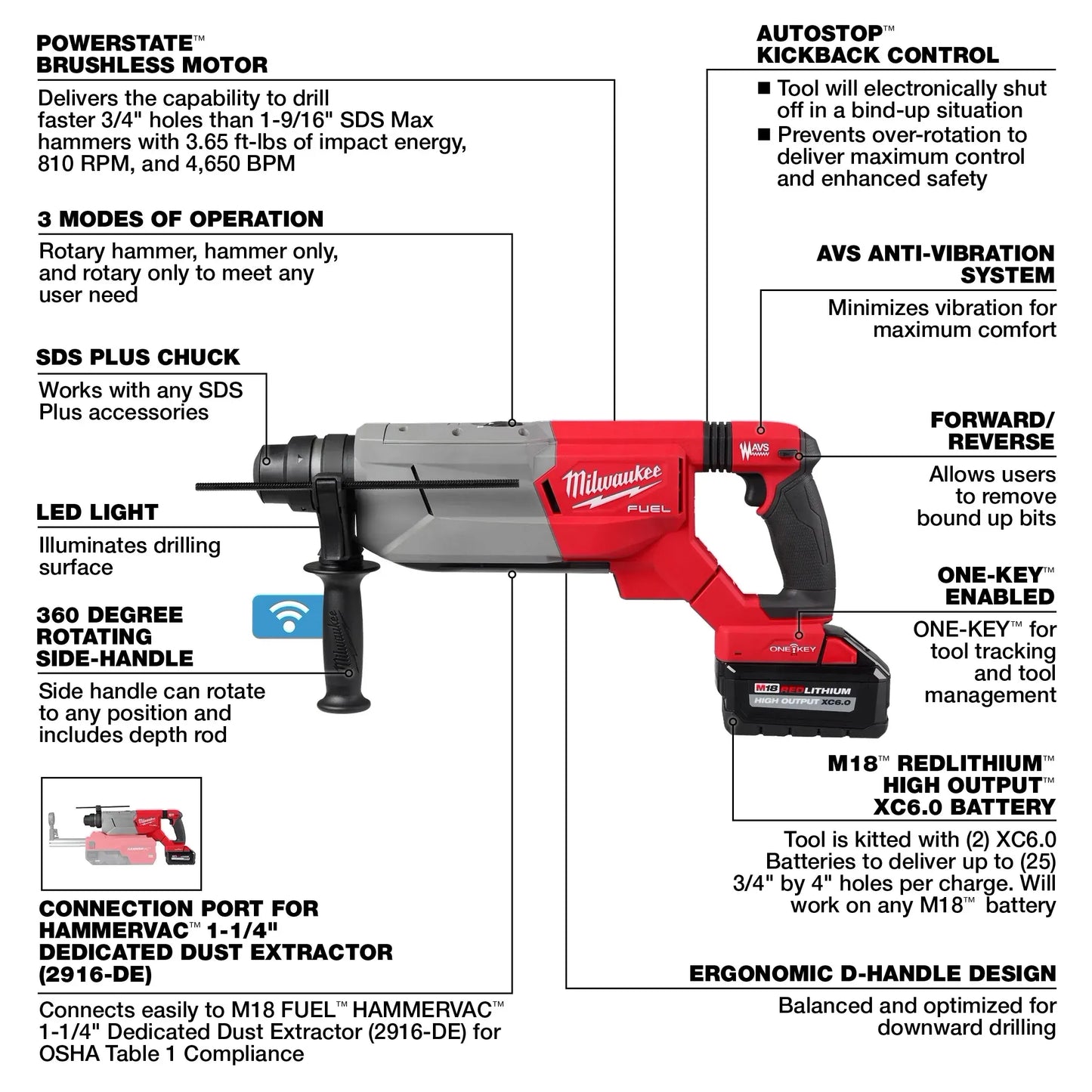

• POWERSTATE Brushless Motor delivers 3.65 ft-lbs of impact energy, 810 RPM, and 4,650 BPM for demanding concrete work.
• Drills up to 25 holes of ¾" × 4" per charge when paired with an M18 REDLITHIUM HIGH OUTPUT XC6.0 battery.
• AUTOSTOP Kickback Control helps prevent over-rotation if the bit binds in rebar or hard aggregate.
• 3 modes (Rotary Hammer, Hammer Only, Rotary Only), AVS Anti-Vibration System, and REDLINK PLUS overload/overheat/over-discharge protection.
• Compatible with the M18 FUEL HAMMERVAC 1-1/4" Dedicated Dust Extractor (2916-DE) for OSHA Table One compliance.

Is this the right rotary hammer for you?

This is a pro-grade tool for concrete drilling and anchor setting where you want SDS Max-class speed without the weight, and it is already on the M18 platform. If you own M18 batteries you may prefer the bare tool, but this -22 kit is the choice when you need batteries and a charger in the box. The D-Handle layout favors downward and tight-space drilling.

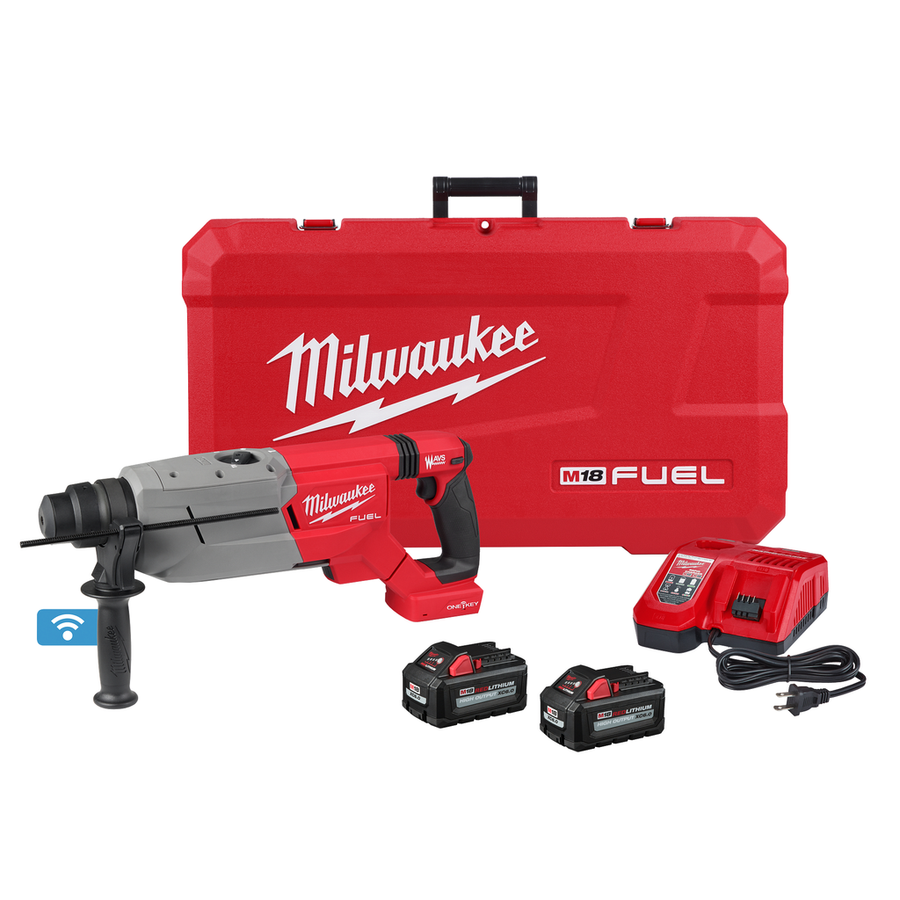

What's in the box

• M18 FUEL 1-1/4" SDS Plus D-Handle Rotary Hammer (2916-20)
• M18 REDLITHIUM HIGH OUTPUT XC6.0 batteries
• M18 charger

Specifications

Downloads

• Safety Data Sheet
• Warranty Document
