Milwaukee Tool

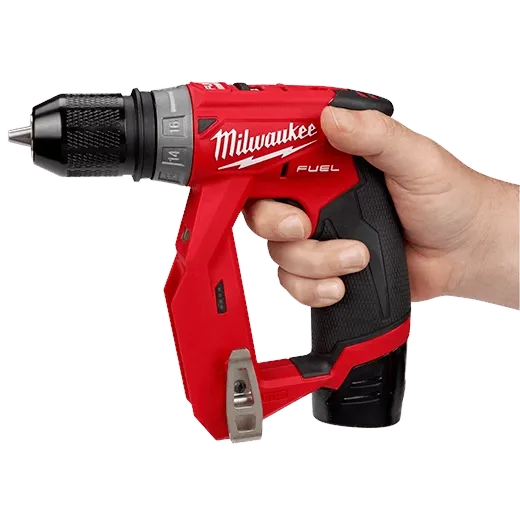

M12 FUEL™ Installation Drill/Driver (Tool-Only)
$179.00
Only 6 left
Free shipping on orders over $199. Free pickup in Springfield and Jacksonville.
- ✓ Free shipping over $199Under that, rates are calculated at checkout.
- ✓ Free in-store pickupSpringfield or Jacksonville. In-stock tools are ready as soon as you order, during store hours.
- ✓ Full Milwaukee factory warrantyWe are an authorized dealer, so your warranty is valid.
- ✓ 30-day returnsUnused and in the original box.
- ✓ Questions? Talk to a person217-793-2940 - Mon-Thu 7-4:30, Fri 7-4
Details

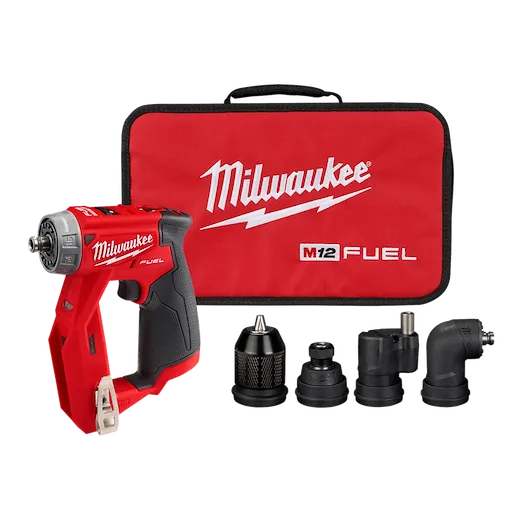

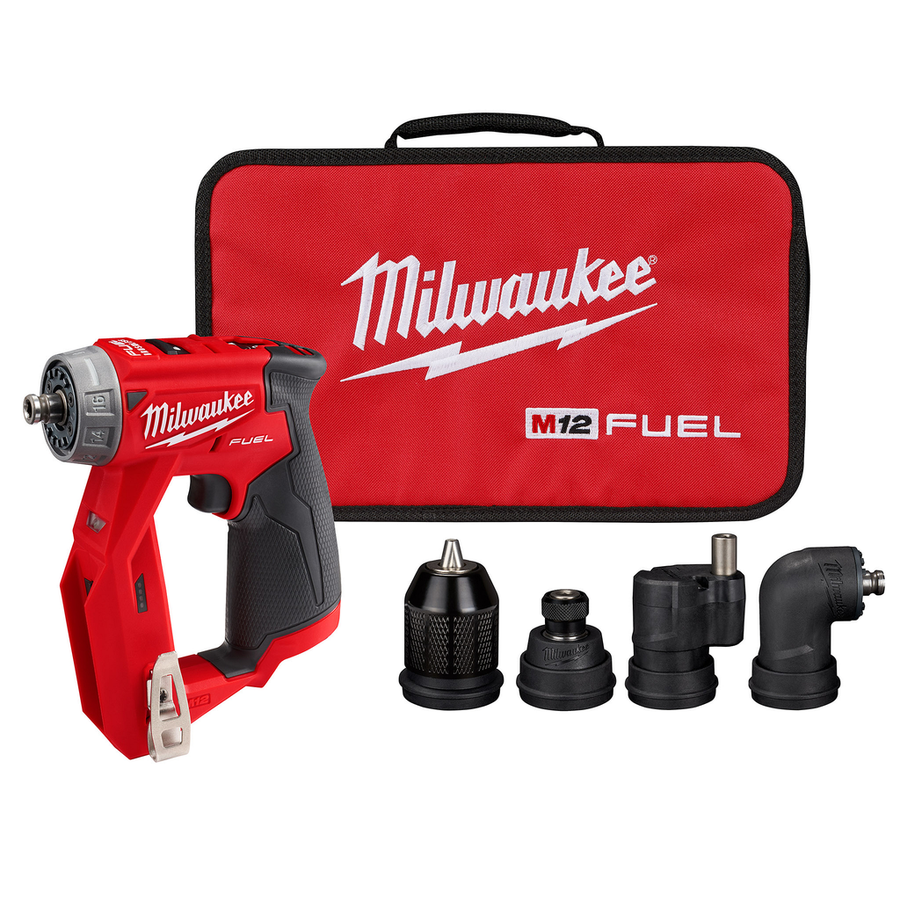

The Milwaukee M12 FUEL Installation Drill/Driver (2505-20) is a 4-in-1 modular drill/driver built to reach awkward, tight-access fastening spots. This listing is the bare tool — the M12 REDLITHIUM battery and charger are sold separately. It ships with four swappable heads — a 3/8" chuck, offset driver, 1/4" hex, and right-angle attachment — that mount in 16 different positions, plus a compartmentalized contractor bag to store them.
What it does well
- POWERSTATE brushless motor delivers up to 300 in-lbs of max torque and a two-speed range of 0–400 / 0–1,600 RPM.
- Four dedicated heads mount in 16 positions, letting one tool drill and drive in electrical, cabinet, MRO, HVAC, automotive, and remodel work.
- Right-angle attachment fastens and drills at 90° for access in confined spaces; the slim inline grip and flat top add control against surfaces.
- REDLINK Plus Intelligence guards against overload and overheating; an onboard magnetic bit holder and removable belt clip keep bits and the tool at hand.
Is this the right drill/driver for you?
Choose this if you already run the Milwaukee M12 system and need a compact installation tool that reaches places a standard drill/driver can’t. At 1.6 lb without a battery and 5.1" deep, it favors access and control over raw power — ideal for installers and tradespeople doing repetitive fastening in tight quarters. Since it’s a bare tool, add an M12 REDLITHIUM battery and charger if you don’t already own them.
What's included
- M12 FUEL Installation Drill/Driver (2505-20)
- 3/8" chuck head
- Offset driver head
- 1/4" hex head
- Right-angle attachment
- Compartmentalized contractor bag
- M12 battery and charger sold separately
Specifications
| Model | 2505-20 |
| Battery System | Milwaukee M12 |
| Voltage | 12V |
| Motor Type | POWERSTATE Brushless |
| Maximum Torque | 300 in-lbs |
| Maximum RPM | 1,600 |
| Speed Range | 0–400 / 0–1,600 RPM |
| Number of Speed Settings | 2 |
| Number of Clutch Settings | 16 |
| Chuck Size | 3/8 in |
| Chuck Type | All Metal |
| Hammer Function | No |
| Switch Type | Trigger |
| Depth | 5.1 in |
| Weight (excluding battery) | 1.6 lb |
| Batteries Required | 1 |
| ONE-KEY Enabled | No |
| Color Finish | Black · Red |
| Country of Origin | Mexico |
