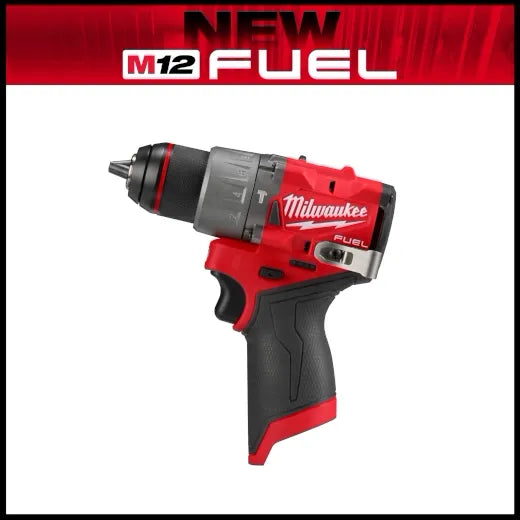

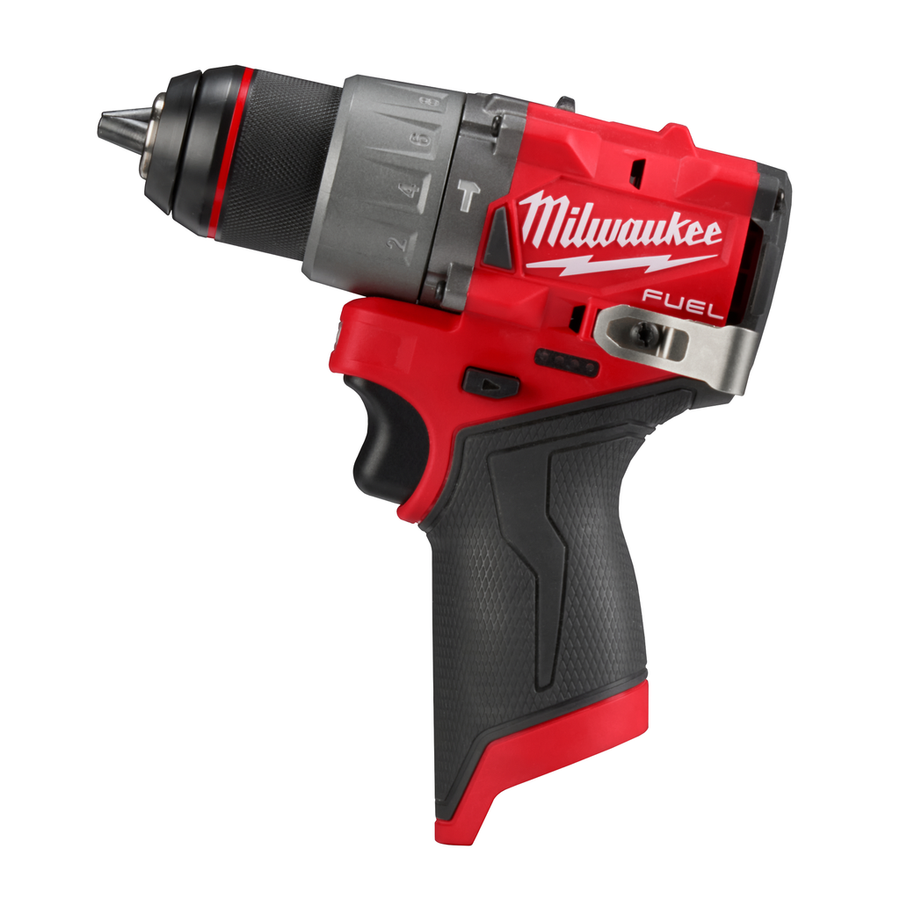

M12 FUEL™ 1/2" Hammer Drill/Driver

The MILWAUKEE® M12 FUEL™ 1/2" Hammer Drill is the Most Powerful Subcompact Hammer Drill, the Most Compact in size, and provides the Fastest Speed Under Load. The MILWAUKEE® POWERSTATE™ brushless motor delivers the most power for the capability to perform the widest variety of applications at high speed for unrivaled subcompact performance. At only 6" in length, this portable drill is the shortest solution in class offering most access into tight spaces. MILWAUKEE® REDLINK PLUS™ Intelligence delivers top of the line thermal performance to give users the Fastest Speed Under Load in order to drill and drive faster than any other subcompact drill. Using MILWAUKEE® M12™ REDLITHIUM™ 2.0Ah compact and 4.0Ah extended capacity battery packs will deliver more work per charge and more work over the life of the pack than competitive batteries. This all-metal 1/2" chuck and all-metal gearcase deliver best-in-class durability. The mechanical clutch delivers consistent torque for driving fasteners. MILWAUKEE® M12 FUEL™ 1/2" Hammer Drill/Driver is part of the MILWAUKEE® M12™ System which is fully compatible with over 125 solutions.

Features

• Light Weight at 2.6 lbs for tool belt portability and less fatigue in the work day
• POWERSTATE™ Brushless Motor delivers the power to complete the widest range of applications of any subcompact hammer drill driver
• Only 6.0" in length for the most access in tight spaces
• Part of the M12 System, featuring over 125+ Tools
• All-metal belt clip for portability
• Fastest Drilling and Driving applications under load
• All-Metal Gearcase for ultimate durability
• 1/2" All-Metal chuck for maximum durability, grip and bit retention
• Unmatched Performance with the most runtime in class with the M12 REDLITHIUM™ XC4.0 battery pack
• Mechanical Clutch for consistency in driving a wide range of fasteners
• 400 in-lbs of torque
• LED light for better visibility in low-light situations

Specifications

• Maximum RPM: 1550
• Depth: 6 Inches
• Number of Clutch Settings: 12
• Chuck Type: All Metal Ratcheting
• Number of Speed Settings: 2
• Handle Type: Standard
• Battery Charger Input Voltage: 12
• ONE-KEY Enabled: No
• Motor Type: POWERSTATE™ Brushless
• Weight - Battery Installed (lb): 2.6
• Country of Origin: Mexico
• Chuck Size: 1/2 in
• Weight Excluding Battery (lb): 2.2
• Color Finish: Black;Red
• Power Tool Branding: FUEL™
• Battery System: M12™
• Hammer Function: Yes
• Voltage: 12
• Number of Batteries Required: 1
• Brushless Motor: Yes
• FUEL: Yes
• Material: Metal
• Maximum Torque (in-lbs): 400
• Rotations Per Minute Range (RPM): 0-1,550
• Switch Type: Trigger
• Badge Branding: FUEL™
• Power Source: Cordless
