EBOLT SUPPLY

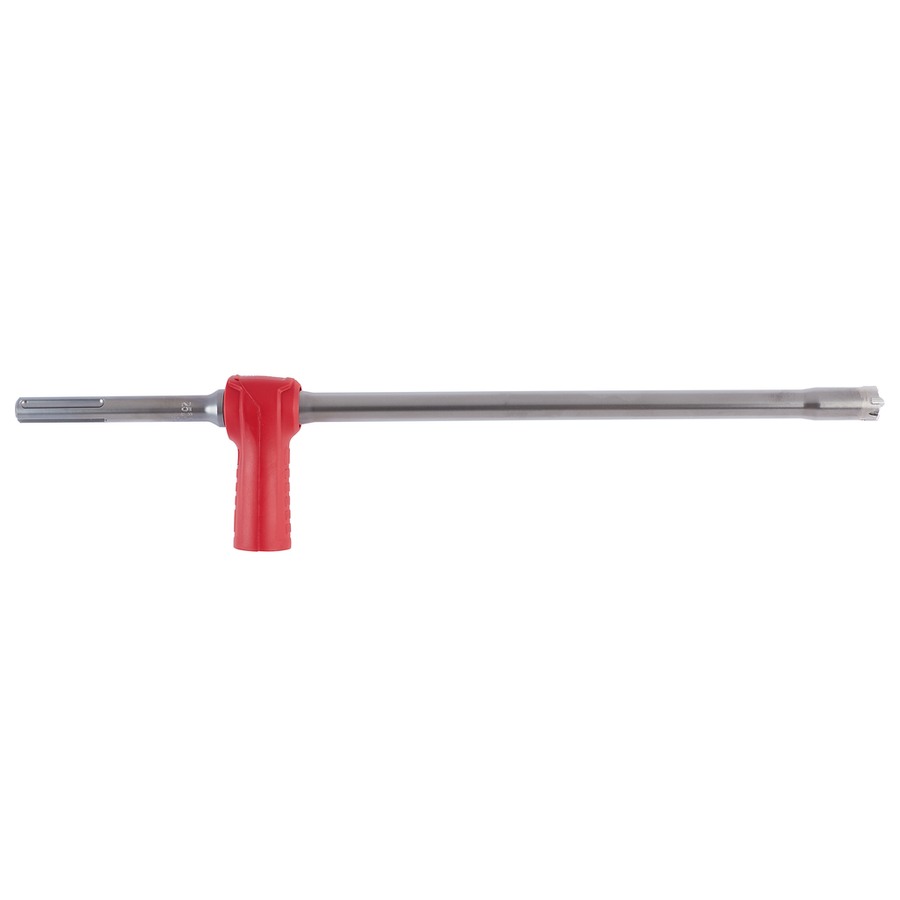

SDS Max Vacuum Bit 1" x 17.5" x 25"

Model 48-20-2164

$224.00

Available to order

Free shipping on orders over $199. Free local delivery in the Springfield area.

  • ✓ Free shipping over $199Under that, rates are calculated at checkout.
  • ✓ Free local deliverySpringfield area, no minimum.
  • ✓ Full Milwaukee factory warrantyWe are an authorized dealer, so your warranty is valid.
  • ✓ 30-day returnsUnused and in the original box.
  • ✓ Questions? Talk to a person(217) 793-2940 - Mon-Thu 7-4:30, Fri 7-4

Details

The Milwaukee® vacuum drill bits reduce airborne silica dust and provide increased productivity during the chemical anchor preparation process. The combination of dust extraction holes at the bit tip and the hollow shaft design allow dust to be removed through the bit while drilling holes, reducing airborne silica dust in the process. Milwaukee® Vacuum drill bits are an OSHA table 1 compliant solution when used with dust extraction vacuums. Additionally, vacuum drill bits leave clean holes which are ready for the chemical anchor installation, removing the need to use standard drill bits with the blow-brush-blow cleaning method, delivering up to 2x faster chemical anchor preparation. The 4-cutter tip designs delivers durability in concrete and concrete with rebar applications. The universal adapter fits most common dust extractor attachments.

Features

  • Use in SDS-Plus Rotary Hammers in rotary hammer mode
  • OSHA Table 1 compliant drilling solution for the regulation on respirable crystalline silica dust (29 CFR 1926.1153)
  • ANSI specificed to fit common anchors
  • Universal adapter fits most common dust extractor vacuums
  • 4-cutter carbide tip for long life in concrete and concrete with rebar applications
  • Dust extraction holes remove dust from the hole while drilling
  • Replacement adapter available (48-20-2150)
  • Up to 2x faster chemical anchor preparation due creating a clean hole while drilling

Specifications

  • Color Finish: Red
  • Country of Origin: Germany
  • Drilling Depth: 17.5 in
  • Material: Steel;Rubber;Carbide
  • Drill Bit Type: 4-Cutter
  • Flute Length: 17.5 in
  • Package Quantity: 1
  • Shank Style: SDS Max
  • Depth: 25 Inches
  • Shank Diameter: 3/4 in
  • Bit Diameter: 1 in
