M18™ Compact Brushless 1/2" Drill/Driver Kit

The Milwaukee M18 Compact Brushless 1/2" Drill/Driver Kit (model 3601-22CT) is a full kit built around the compact 3601-20 drill and comes ready to work with two batteries, a charger and a carrying bag. At 5.7" long and 3.2 lbs with a battery installed, it is sized for tight spaces and overhead work while still delivering 550 in-lbs of torque.

What it does well

• Brushless motor produces 550 in-lbs of maximum torque across a two-speed range of 0–550 and 0–1,700 RPM.
• Compact 5.7" head length and 3.2 lbs weight (2.3 lbs bare) give strong balance and control in overhead or confined work.
• All-metal gear case and 1/2" keyless metal chuck stand up to jobsite impact and shock.
• REDLINK Intelligence provides overload protection and temperature monitoring; 13 clutch settings and 2 speed settings handle a range of drilling and fastening tasks.

Is this the right drill for you?

This is a strong pick for a pro or serious DIYer who wants a light, short-nose 18V drill for general drilling and driving rather than heavy hammer or high-torque work. Because it ships as a kit with two 2.0Ah compact batteries and a charger, it is a good entry point into the M18 platform, which is compatible with over 250 tools. If you already own M18 batteries, consider the bare 3601-20 instead.

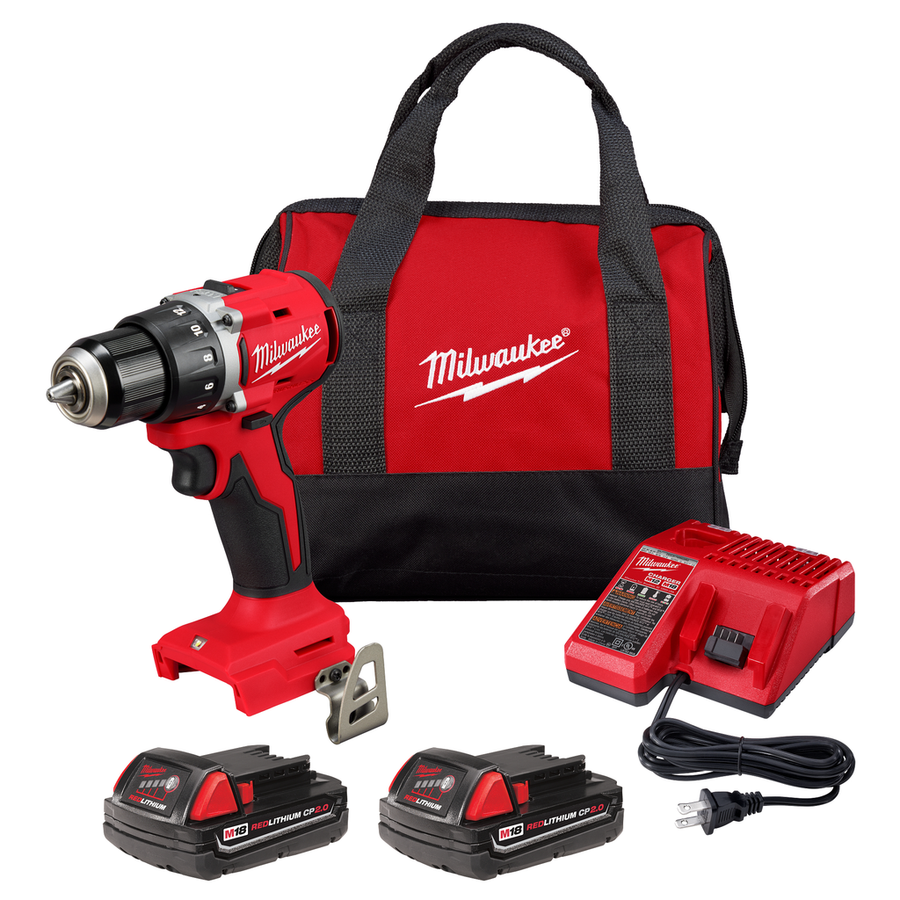

What's in the box

• 3601-20 M18 Compact Brushless 1/2" Drill/Driver
• (2) 48-11-1820 M18 REDLITHIUM 2.0Ah compact batteries
• 48-59-1812 M18/M12 multi-voltage charger
• Contractor bag

Specifications

Downloads

• Safety Data Sheet
• Warranty Document
