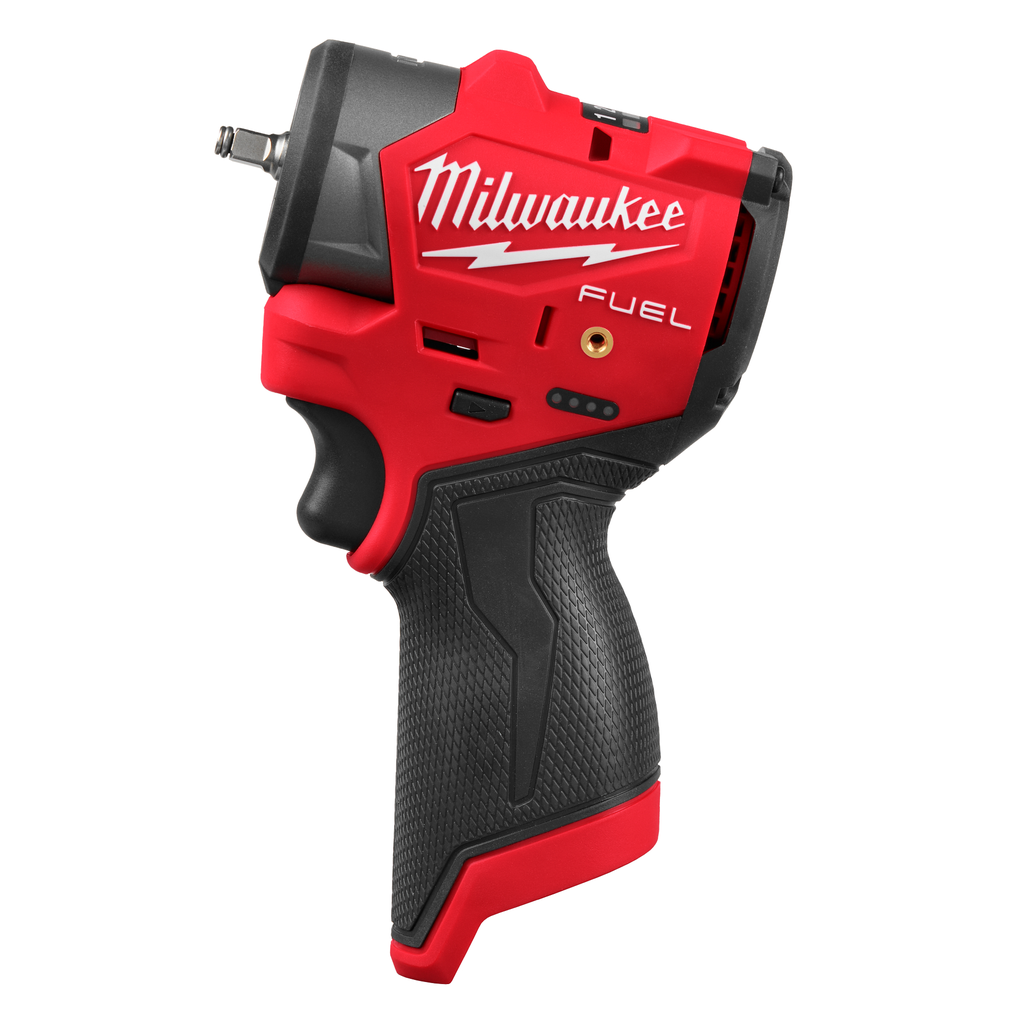

M12 FUEL™ 1/4" Subcompact Impact Wrench w/ Friction Ring

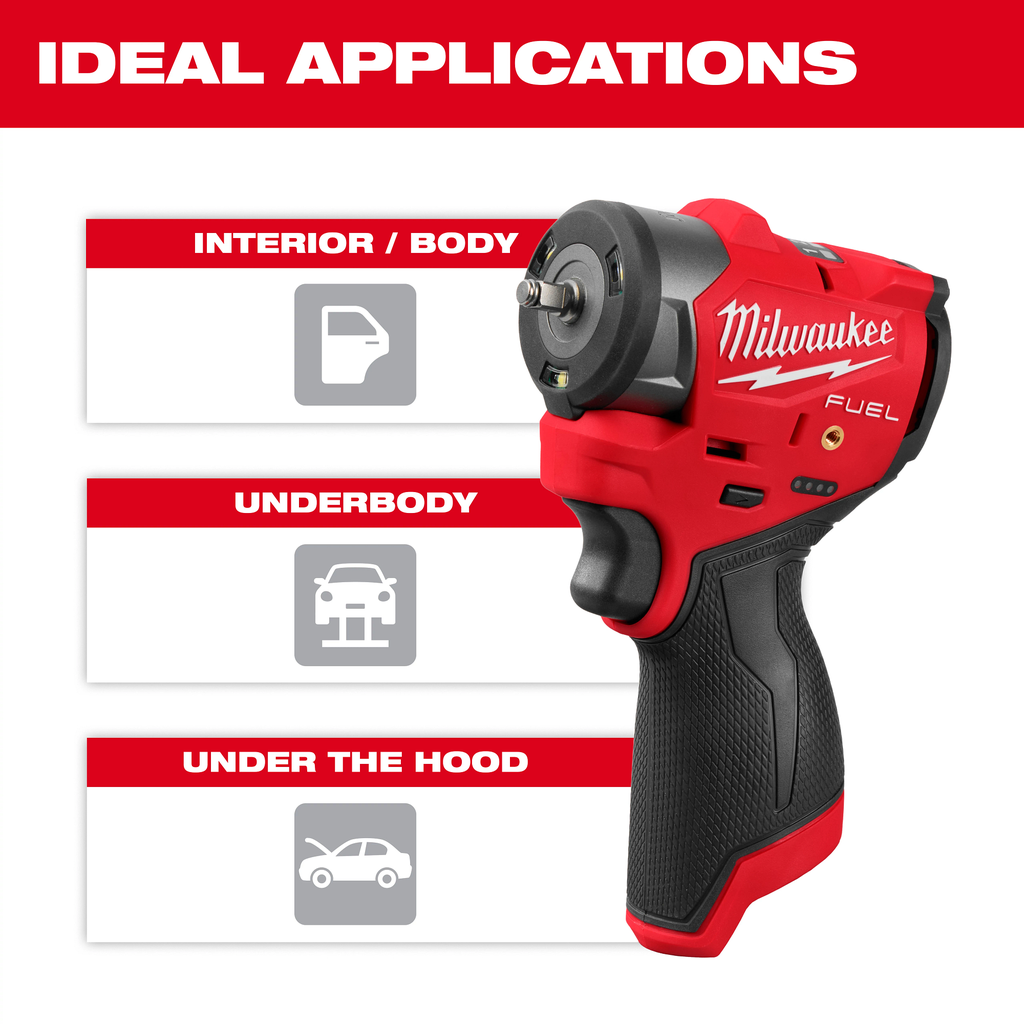

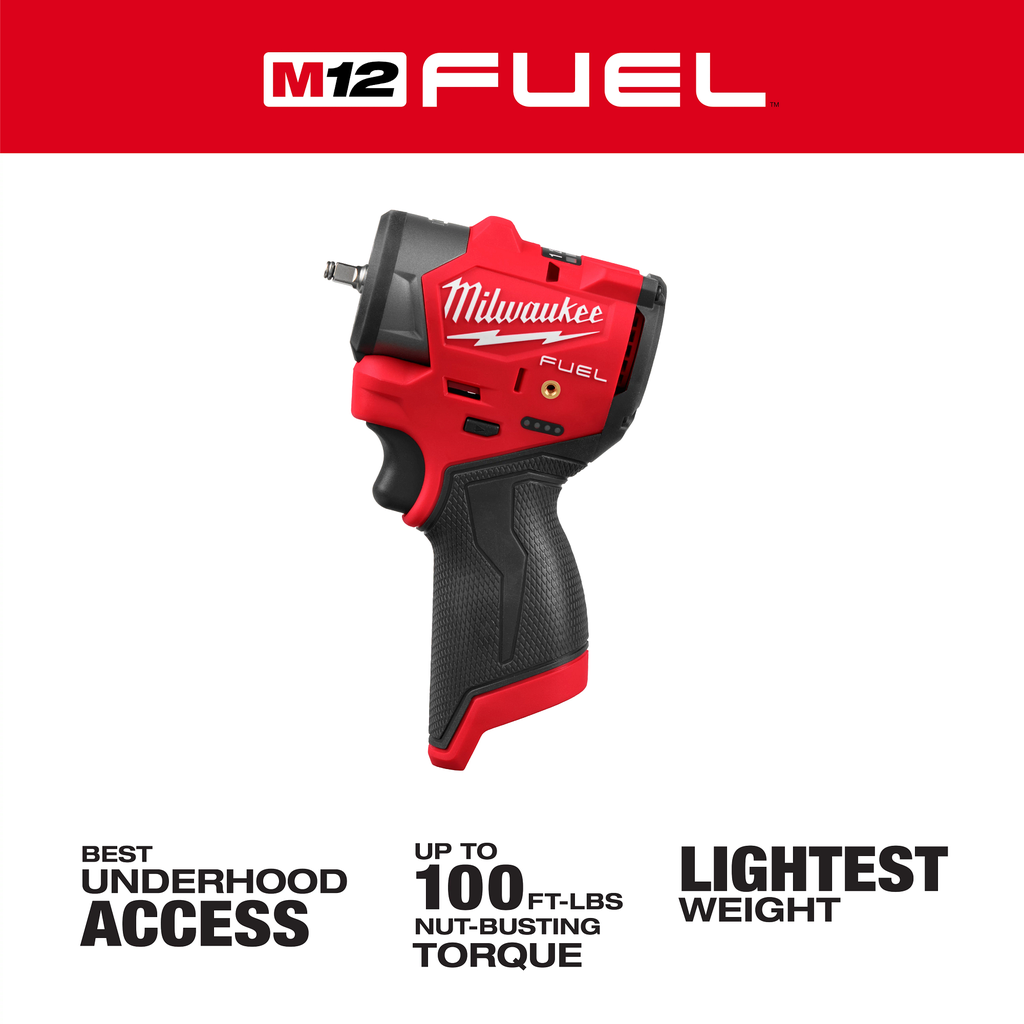

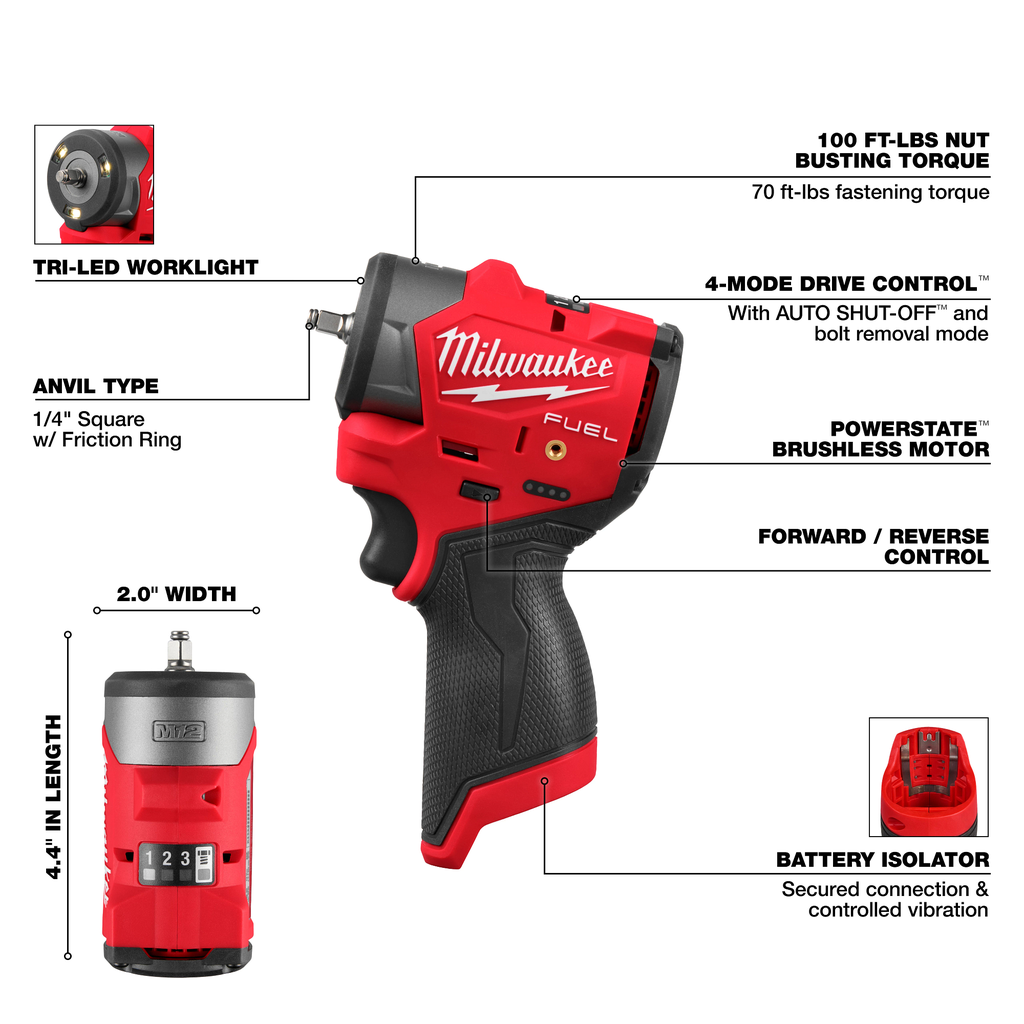

The MILWAUKEE® M12 FUEL™ 1/4” Subcompact Impact Wrench with Friction Ring offers the Best Underhood Access for all automotive applications. Measuring 4.4” in length and 2.0” in width, this Subcompact Impact Wrench fits into the tightest spots, minimizing the time spent on removing additional components under the hood. The M12 FUEL™ Subcompact Impact Wrench delivers up to 100 ft-lbs of nut-busting torque when paired with our M12™ REDLITHIUM™ HIGH OUTPUT™ CP2.5 Battery Pack while providing up to 50% faster application speeds, maximizing productivity in the shop. This solution excels in both performance and size. Weighing only 1.5 lbs as a bare tool, it is the Lightest Weight in its class, reducing user fatigue throughout the workweek and fitting into the tightest spaces without additional extensions, swivels, or adapters. Equipped with a Tri-LED work light, it illuminates your work area without casting shadows. The tool has a variable speed trigger with 4-Mode DRIVE CONTROL™, which offers greater precision and customization of power output, including AUTO SHUT-OFF™ that limits torque to 7 ft-lbs for hand-tight applications, preventing overtightening in forward mode. In reverse, the bolt removal mode slows down RPM once the bolt is free, preventing fastener drops in your workspace. Mode changes are effortless with single-handed operation. By shifting the forward-reverse shuttle into neutral and double-tapping the trigger, you can easily switch modes.

Features

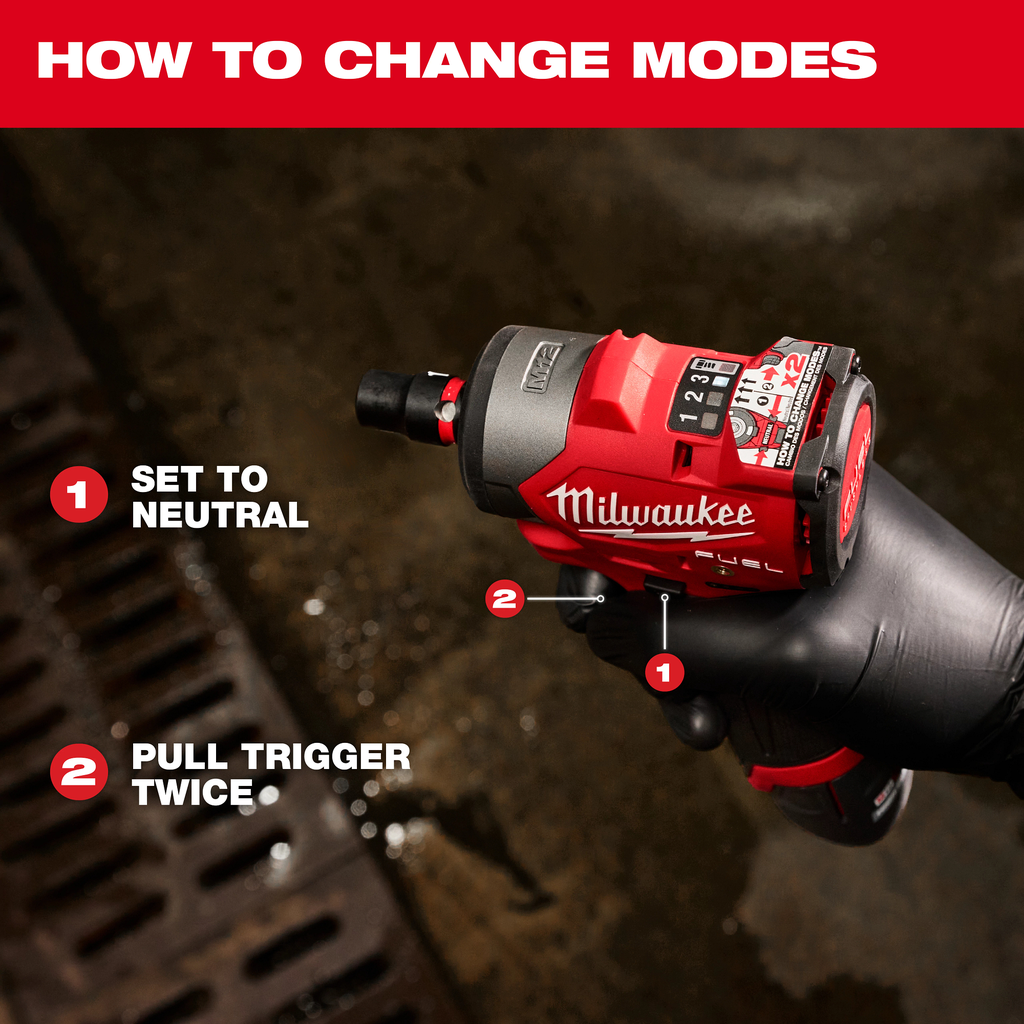

• Single-handed mode changes for increased productivity

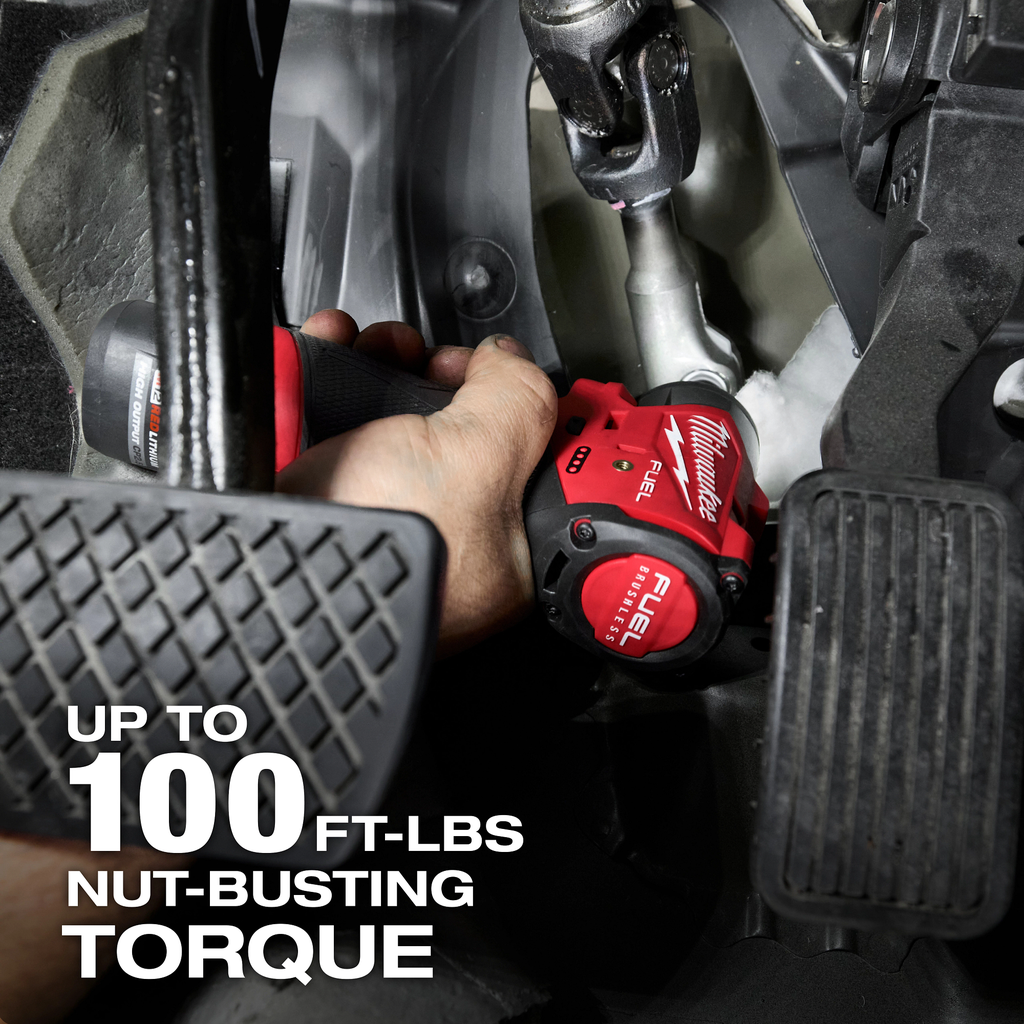

• Up to 100 ft-lbs Nut Busting Torque
• Variable speed trigger for precise control
• Compatible with all M12™ batteries & Chargers

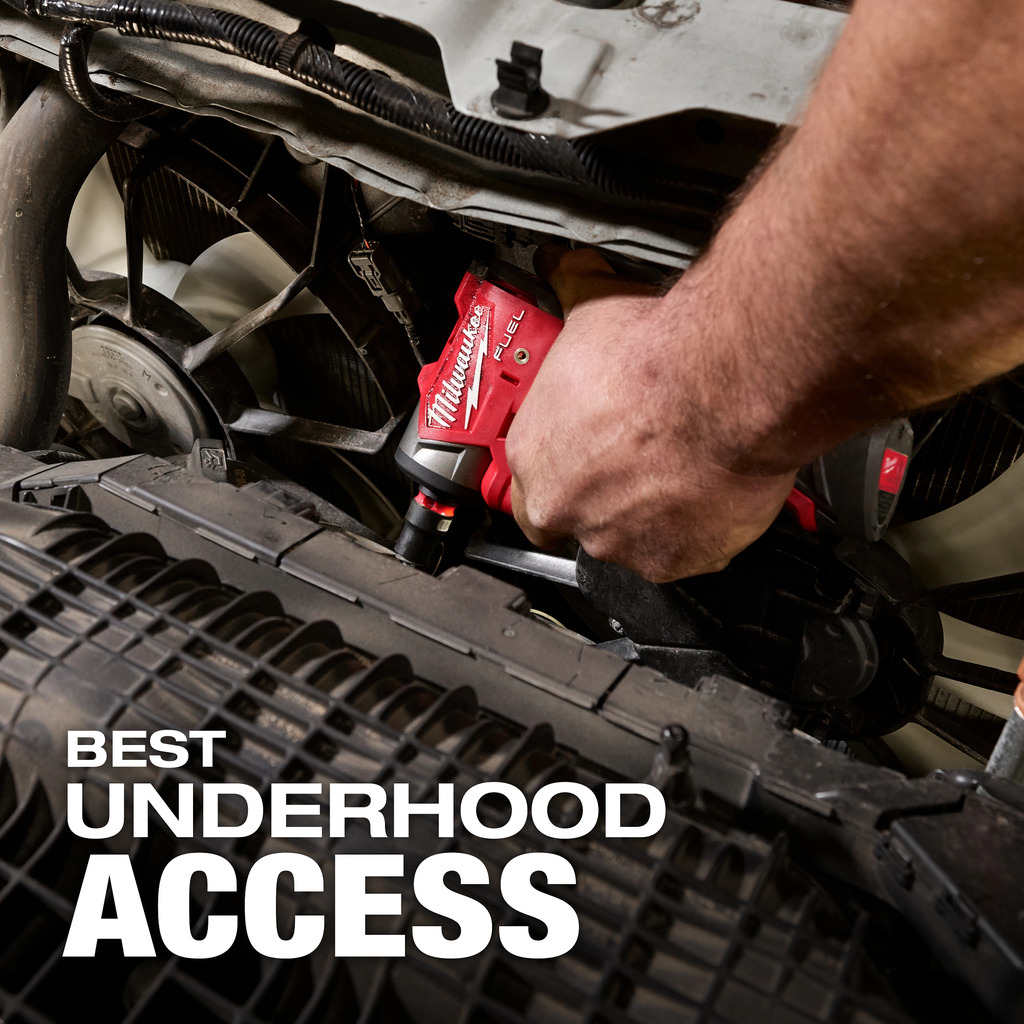

• Best Underhood Access
• 50% Faster Application Speeds
• Tri-LEDs deliver high definition lighting to increase workspace visibility with less shadows
• Mode 1 IPM: 0 – 1,350; Mode 2 IPM: 0 – 3,700; Mode 3 IPM: 0 - 4,400; Mode 4 IPM: 0 - 4,400
• Auto shut-off mode prevents over tightening and increases productivity by applying no more than 7 ft-lbs. of torque.

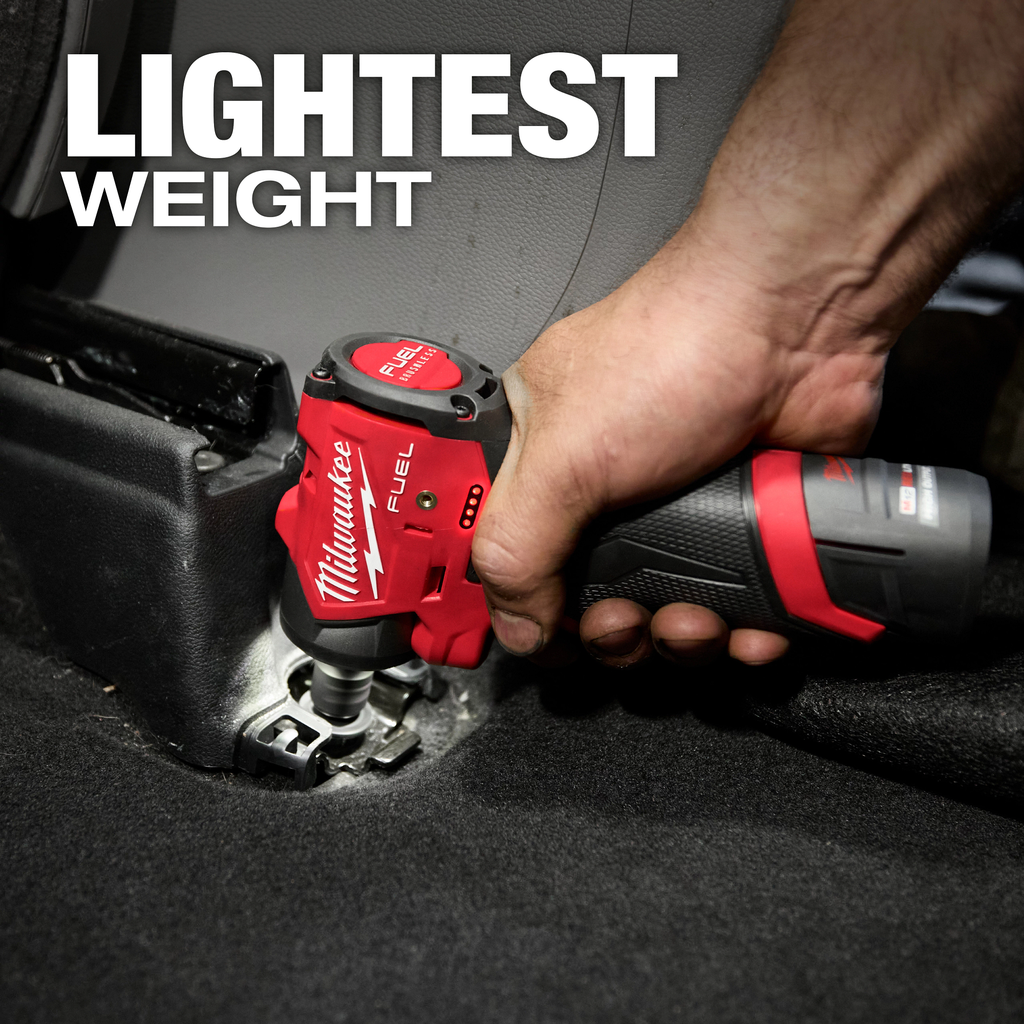

• Lightest Weight
• Mode 1 RPM: 0-1,500; Mode 2 RPM: 0-2,900; Mode 3 RPM: 0-3,800; Mode 4 RPM: FWD: 0-2,200, REV: 0-3,800 / 0-2,000
• Friction ring socket retention system: Reduces downtime on applications involving frequent changing of accessories
• 4-Mode DRIVE CONTROL™ provides greater control over output speed and power. Includes auto shut-off and bolt-removal mode

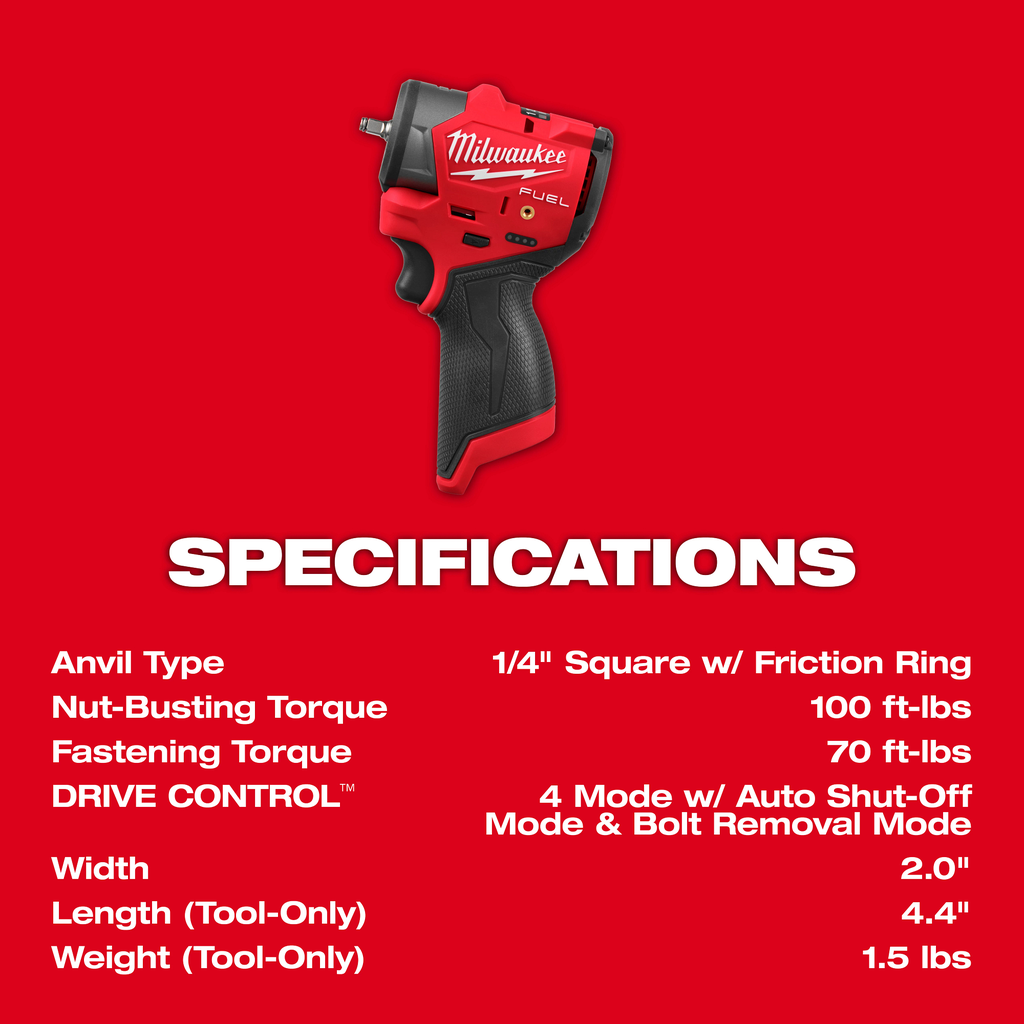

Specifications

• Badge Branding: FUEL™
• Maximum RPM: 3800
• Depth: 4.4 Inches
• Material: Metal
• Voltage: 12
• Chuck Type: Not Applicable
• Country of Origin: Vietnam
• Brushless Motor: Yes
• Anvil Size: 1/4 in
• DRIVE CONTROL: 4-Mode w/ Auto Shut-Off Mode & Bolt Removal Mode
• Number of Batteries Required: 1
• Battery System: M12™
• Motor Type: POWERSTATE™ Brushless
• Impacts Per Minute Range (IPM): 0 - 4400
• Power Tool Branding: FUEL™
• Anvil Type: Friction Ring
• Weight Excluding Battery (lb): 1.5
• Wrench Type: Sub-Compact
• Weight - Battery Installed (lb): 1.9
• Fastening Torque: 70
• Chuck Size: Not Applicable in
• FUEL: Yes
• ONE-KEY Enabled: No
