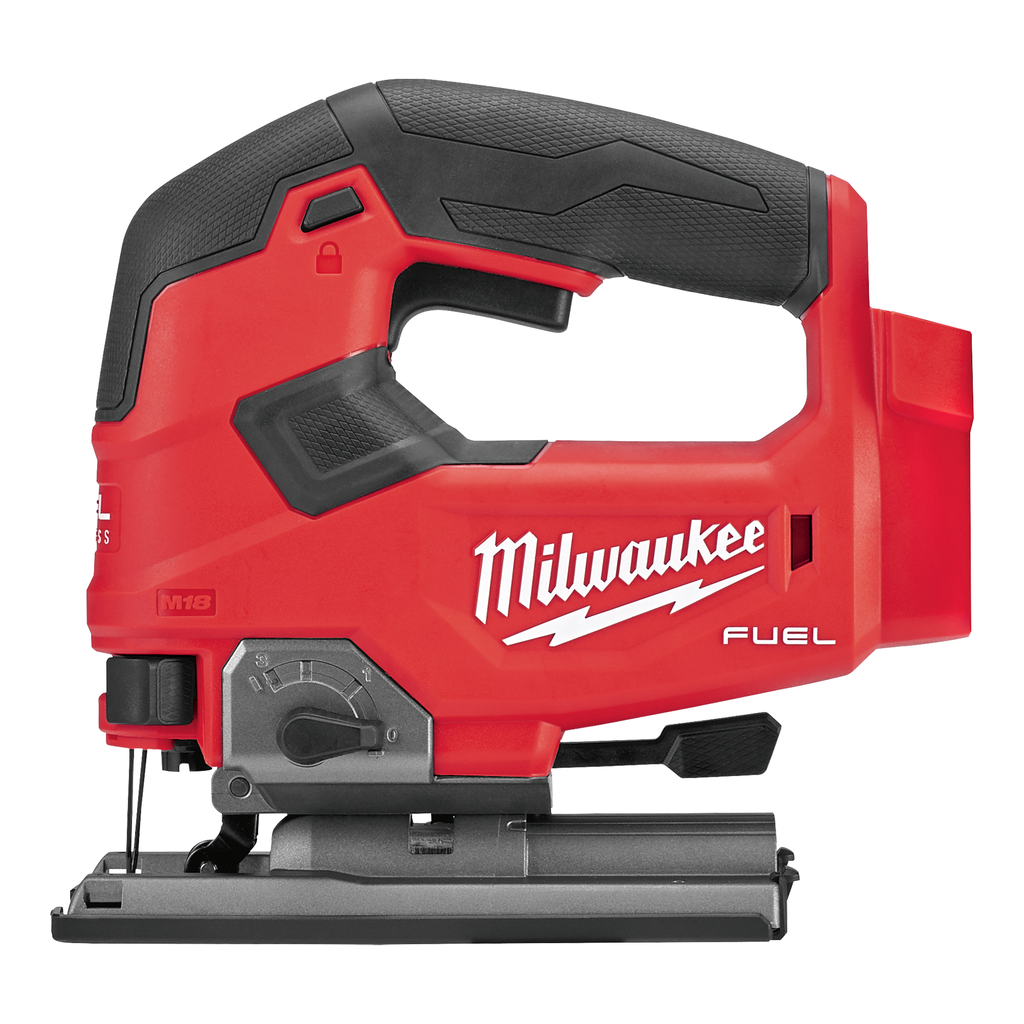

M18 FUEL™ D-Handle Jig Saw

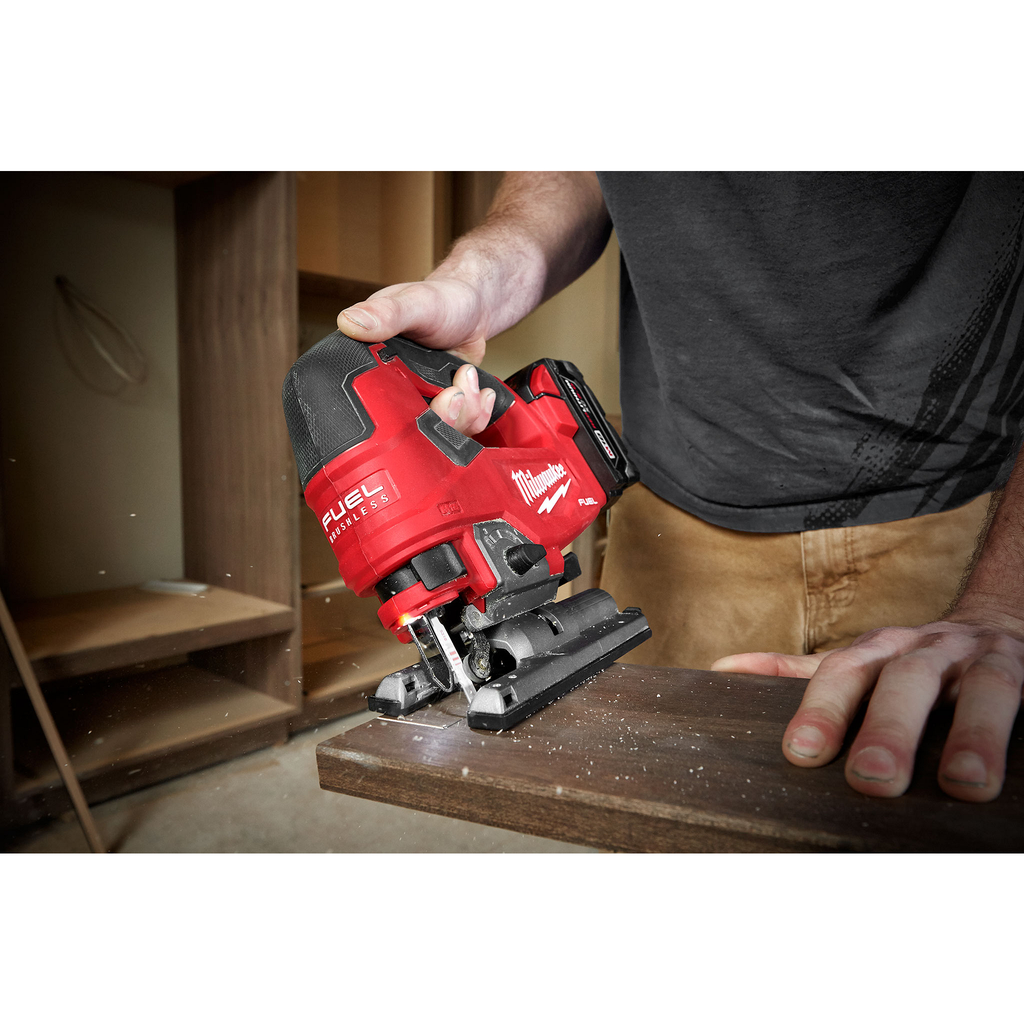

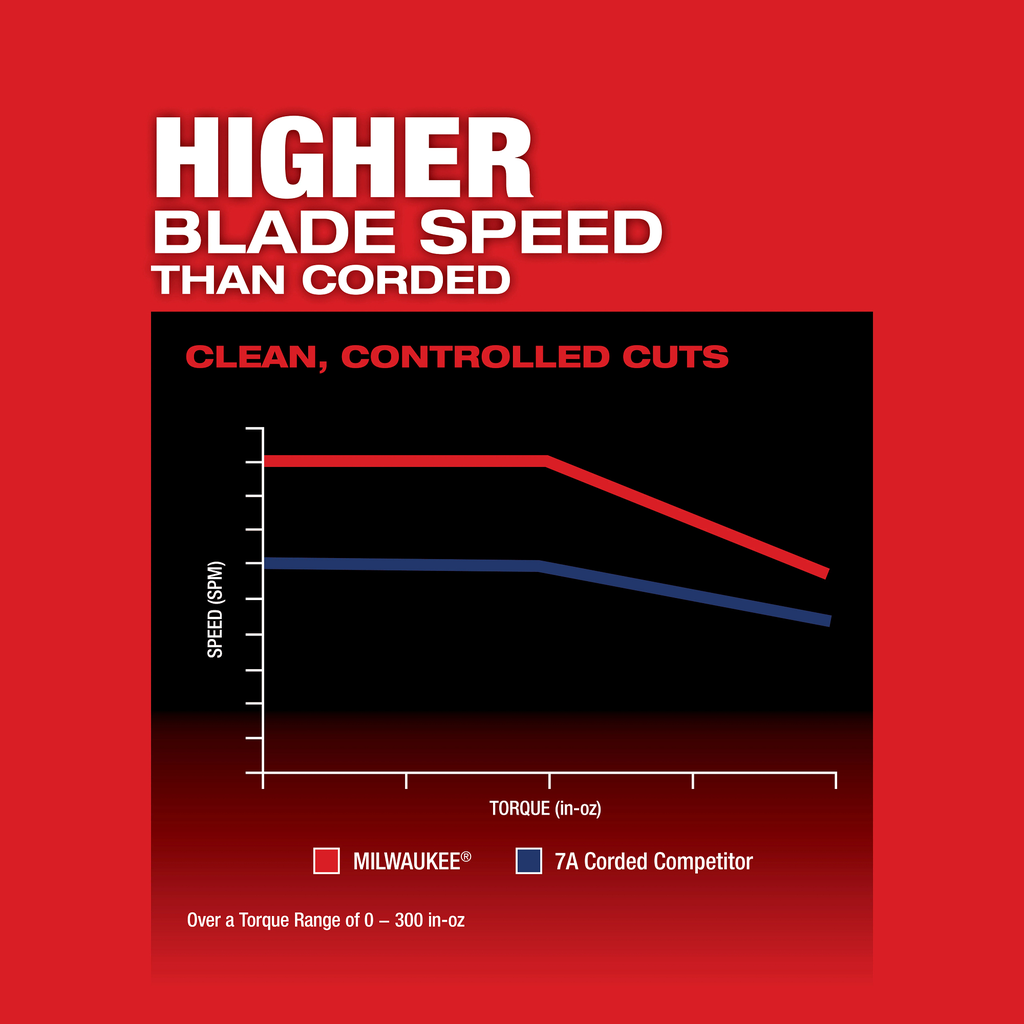

The M18™ FUEL™ D-handle jig saw combines power, blade speed and precision, to provide the highest quality cuts in a wide variety of materials. The M18™ FUEL™ D-handle jig saw leverages the POWERSTATE brushless motor and REDLINK Plus™ intelligence to provide higher blade speed than corded jig saws at 3500 strokes per minute for clean controlled cuts with minimized chipping or bucking. Leveraging the M18™ REDLITHIUM™ XC5.0 battery the M18™ FUEL™ D-handle jig saw provides up to 105 linear feet of cutting in 3/4 in. laminated particle board, delivering all day productivity with less trips to the charger. The saw features tool-less blade change, tool free bevel adjust with pin-detents at 0°; 15°; 30°; and 45° as well as an LED light and on/off blower to keep the cut line visible while cutting.

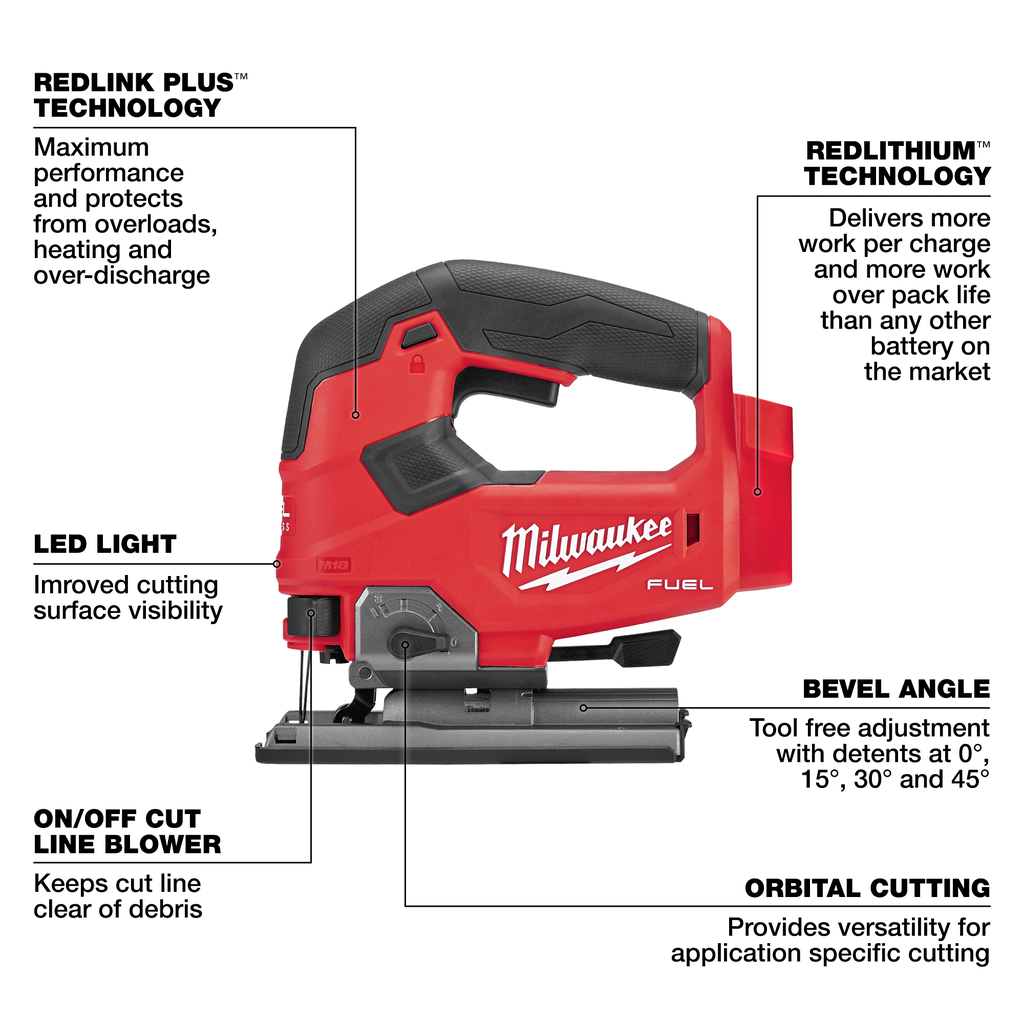

Features

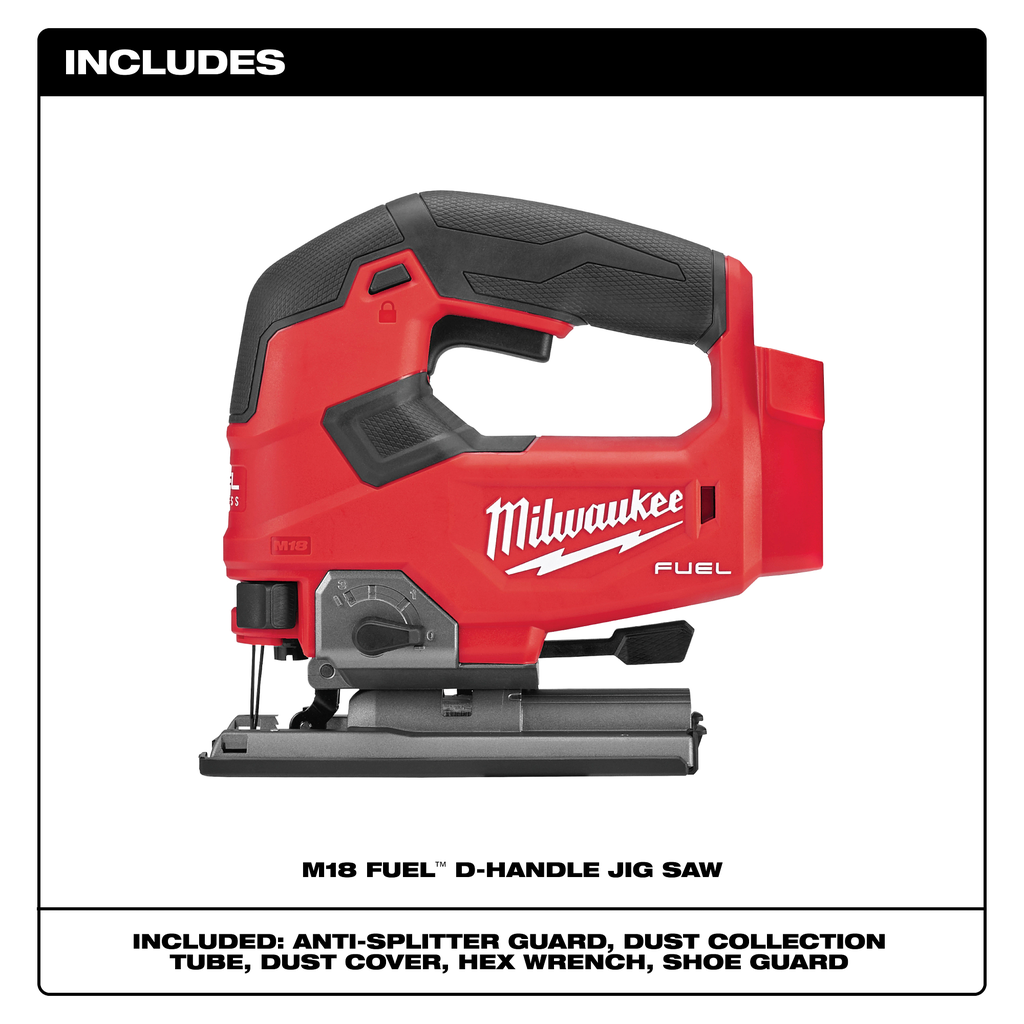

• Includes non-marring shoe cover for protection of finished surfaces

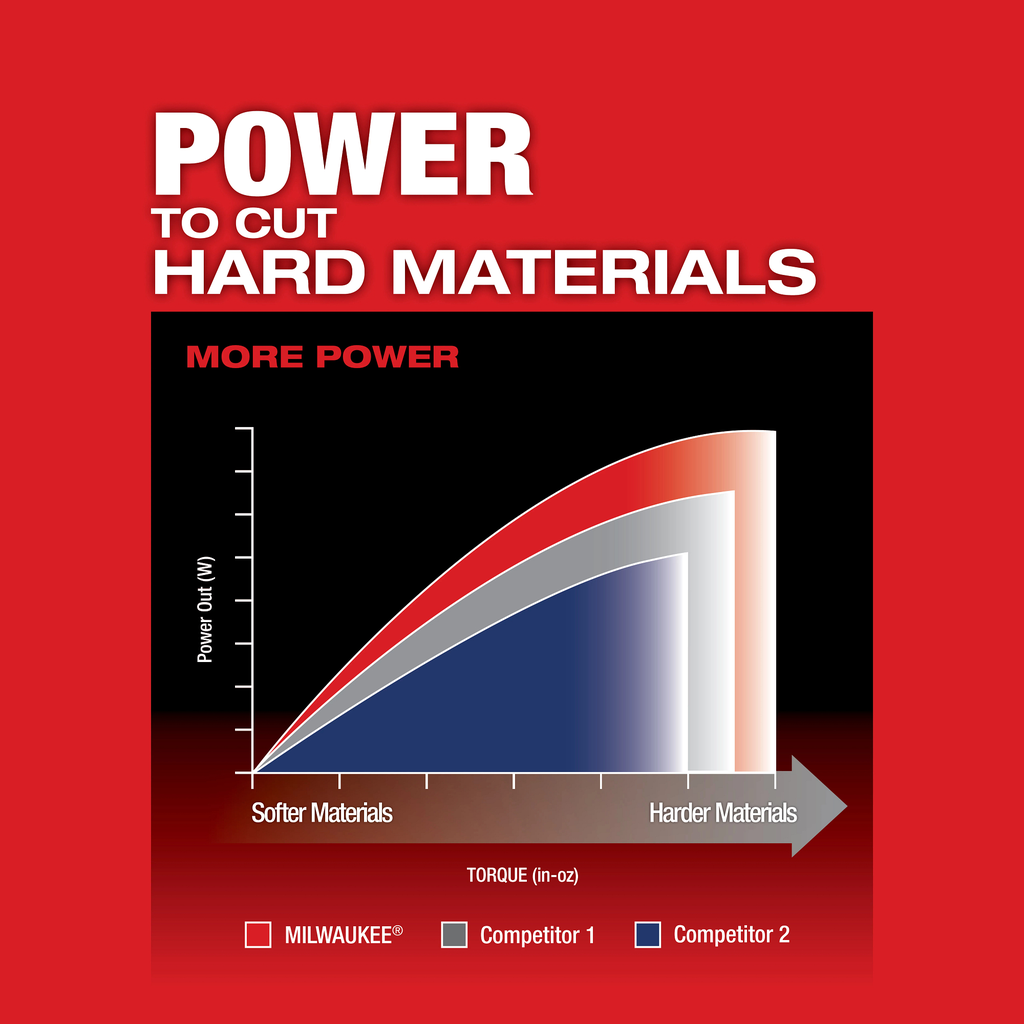

• POWERSTATE™ Brushless Motor: Increased SPM and the power to cut hard materials, including hardwoods and metals

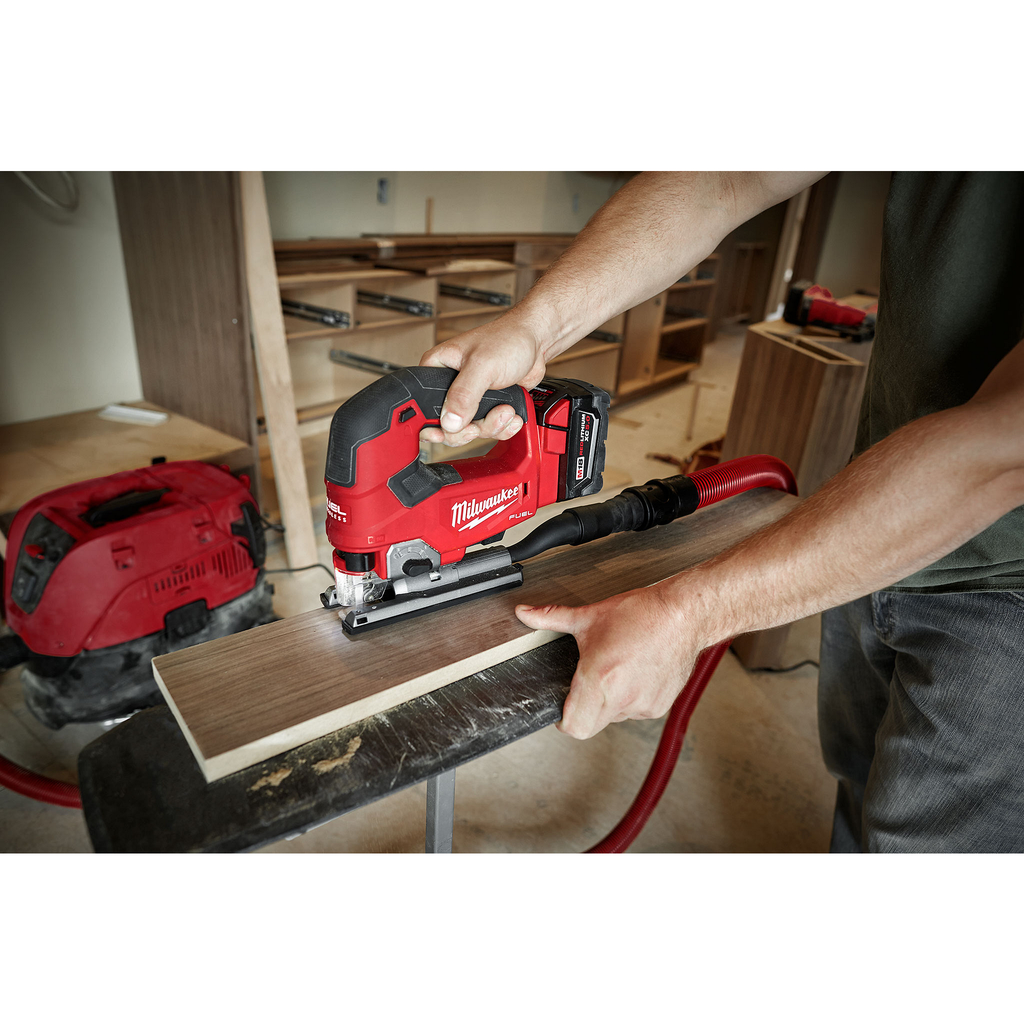

• Includes dust cover and dust extraction tube
• 4-position orbital cutting provides versatility for application-specific cutting
• Provides optimized performance and overload protection using total system communication between tool, battery and charger
• Part of the M18™ System, featuring over 150+ tools
• Toolless shoe bevel with positive stops allows for quick and accurate shoe adjustment with detents at 0°, 15°, 30° and 45°
• REDLINK PLUS™ Intelligence: the most advanced system of cordless power tool electronics; provides optimized performance and overload protection using total system communication between tool, battery and charger
• REDLITHIUM™ battery technology: superior pack construction, electronics and performance deliver more work per charge and more work over pack life than any battery on the market
• Accepts T-Shank jig saw blades
• On/Off cut line blower keeps the cut line clear of debris, and allows user to turn off blower when using dust extraction
• LED light illuminates the cut line
• Variable speed ranges between 0 and 3500 strokes per minute, providing precise control for clean cuts with less chipping

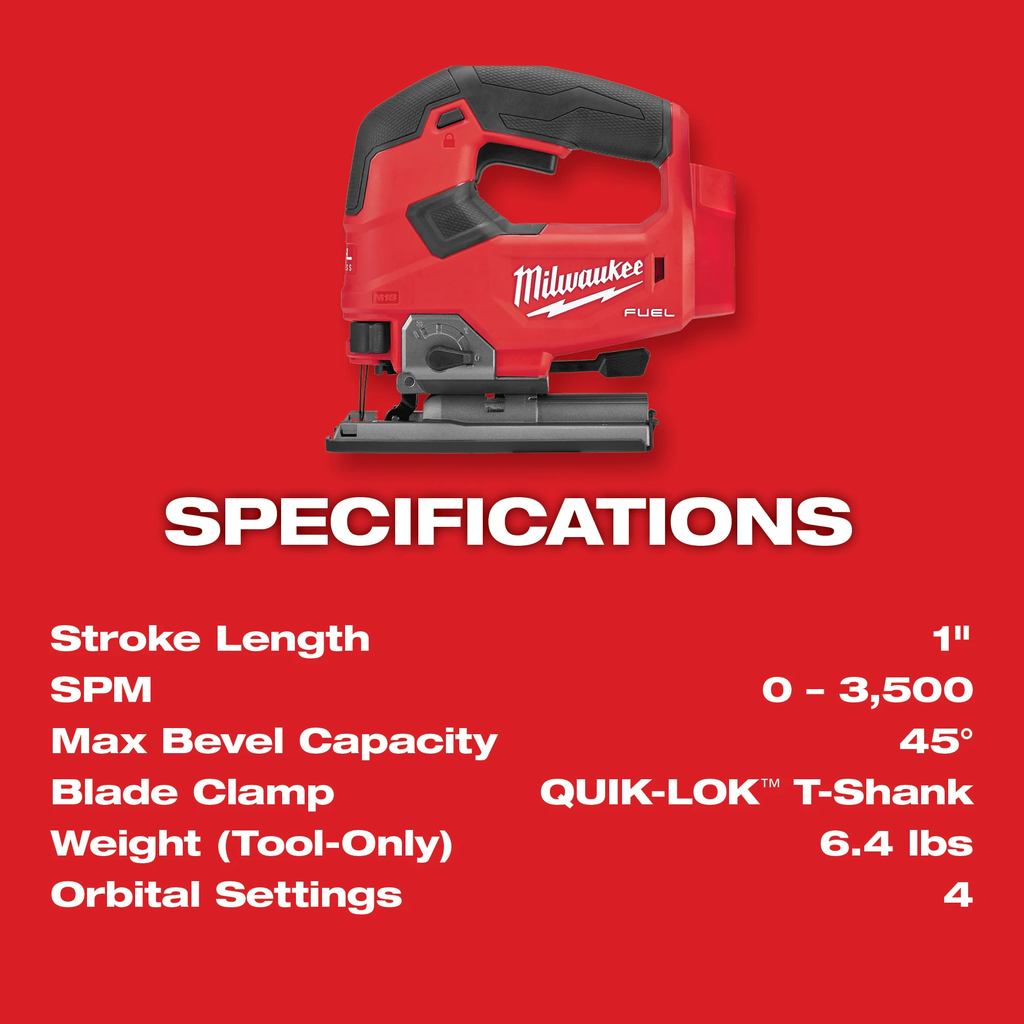

Specifications

• Voltage: 18
• Badge Branding: FUEL™
• Country of Origin: Vietnam
• Weight Excluding Battery (lb): 4.85
• Depth: 8.9 Inches
• FUEL: Yes
• Power Source: Cordless
• Weight - Battery Installed (lb): 6.49
• Battery System: M18™
• Speed Control: Variable
• Battery Charger Input Voltage: 120
• Handle Type: D-Handle
• Brushless Motor: Yes
• Power Tool Branding: FUEL™
• Number of Batteries Required: 1
• ONE-KEY Enabled: No
• Motor Type: Brushless
• Material: Metal
• Battery Amp Hour (Ah): 5
• Color Finish: Black;Red
