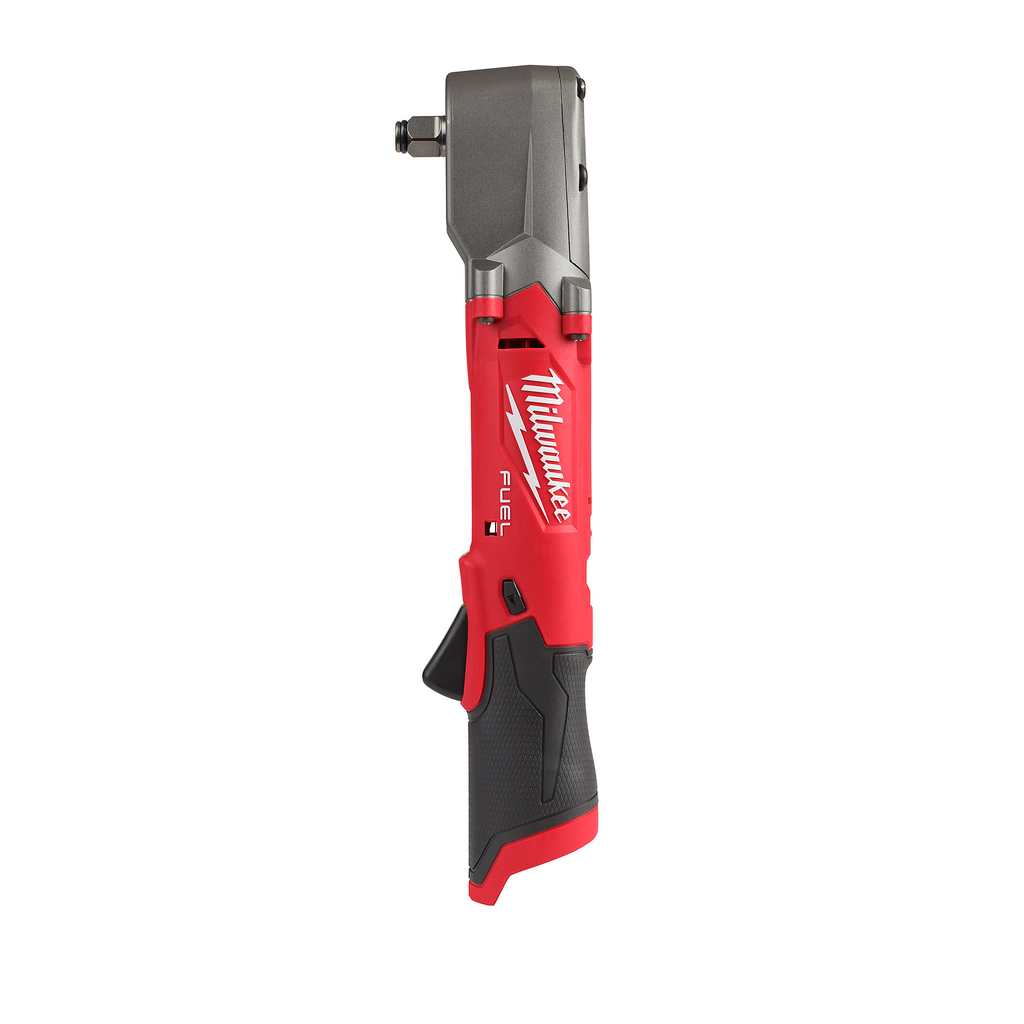

M12 FUEL™ 1/2" Right Angle Impact Wrench w/ Friction Ring (Bare Tool)

The MILWAUKEE® M12 FUEL™ 1/2" Right Angle Impact Wrench w/ Friction Ring is the industry's most powerful right angle impact wrench. This battery-powered right angle impact wrench delivers up to 220 ft-lbs. of nut-busting torque without kickback to remove stubborn bolts and fasteners. This durable cordless impact wrench easily fits into tighter spaces than traditional pistol-grip impact wrenches with a profile head of only 2.2 inches, reducing the user's need for socket extensions. The 4-Mode Drive Control delivers unmatched control in various fastening and bolt removal applications. Milwaukee REDLINK PLUS™ Intelligence provides maximum performance and protection against overloads, over-heating, and over-discharge. The M12™ REDLITHIUM™ Battery Packs (not included) are compatible with all M12™ tools, delivering more work per charge and more work over the life of the pack.

Features

• POWERSTATE™ Brushless Motor delivers up to 220 ft-lbs. of nut-busting torque, making it the most powerful cordless right angle impact wrench on the market
• Designed with an impact mechanism that prevents kick-back
• The long body profile of 14.17" allows for more access in hard to reach spaces
• Mode 1 RPMs: 0-1,550; Mode 2 RPMs: 0-2,300; Mode 3 RPMs: 0-3,000; Mode 4 RPMs: 0-3,000
• A 2.2" head profile design allows for more access in tight spaces
• Auto shut-off mode prevents over tightening and increases productivity by applying no more than 15 ft-lbs. of torque.
• Bolt-removal mode offers more control after bolt breakaway as RPMs drastically slow down once the bolt is loosened.
• Mode 1 IPMs: 0-1,350; Mode 2 IPMs: 0-2,700; - Mode 3 IPMs: 0-3,600; Mode 4 IPMs: 0-3,600
• LED light to illuminate the work area

Specifications

• ONE-KEY Enabled: No
• Number of Batteries Required: 1
• Anvil Size: 1/2 in
• FUEL: Yes
• Depth: 13.28 Inches
• Maximum Torque (ft-lbs): 220
• Weight Excluding Battery (lb): 2.85
• Chuck Size: Not Applicable in
• Power Source: Cordless
• Weight - Battery Installed (lb): 3.25
• Fastening Torque: 200
• Head Profile: 2.2 in
• Rotations Per Minute Range (RPM): 0 - 3,000
• Maximum RPM: 3000
• Motor Type: POWERSTATE™ Brushless
• Impacts Per Minute Range (IPM): 0 - 3,600
• Country of Origin: Mexico
• Anvil Type: Friction Ring
• Color Finish: Black;Red
• Chuck Type: Not Applicable
• Battery System: M12™
• Brushless Motor: Yes
• Drive Size: 1/2" Square
• DRIVE CONTROL: 4-Mode
• Wrench Type: Right Angle
• Material: Aluminum
• Power Tool Branding: FUEL™
• Voltage: 12
• Badge Branding: FUEL™
