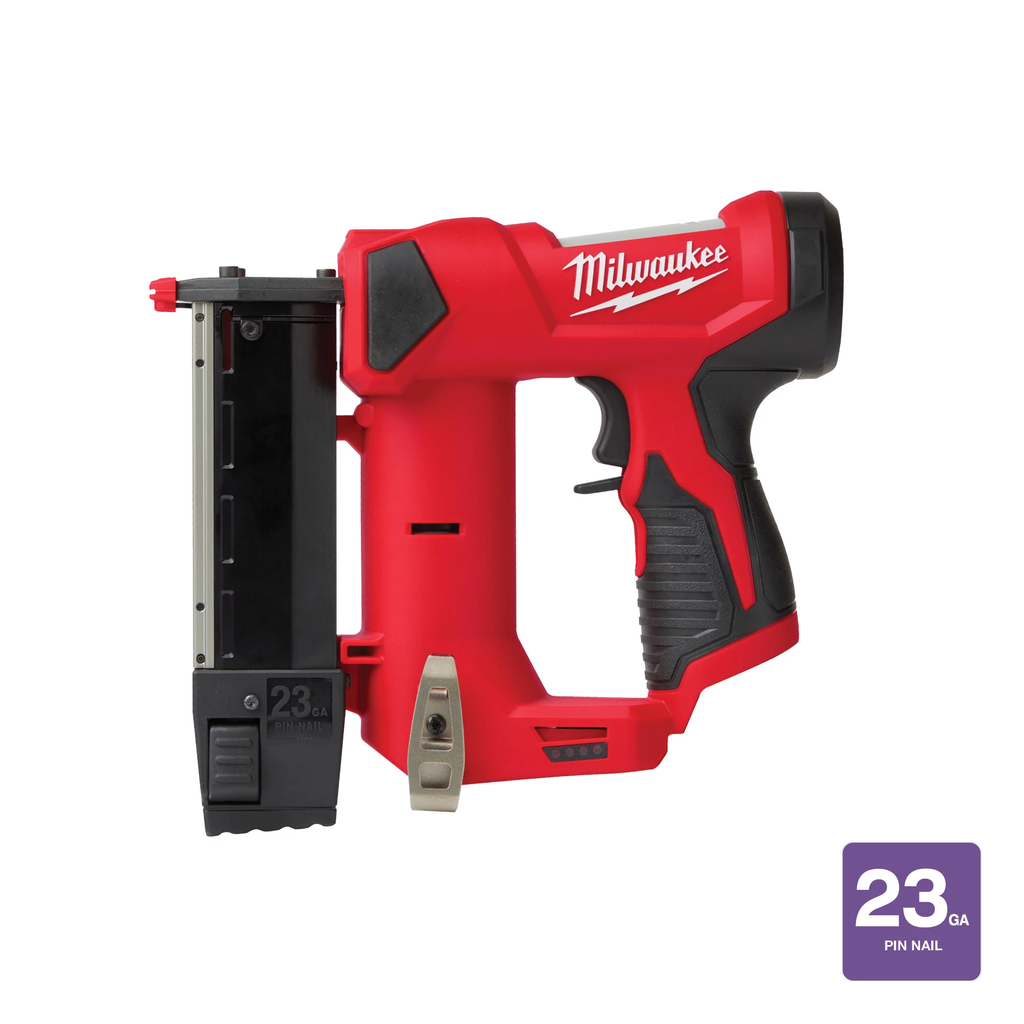

M12™ 23 Gauge Pin Nailer

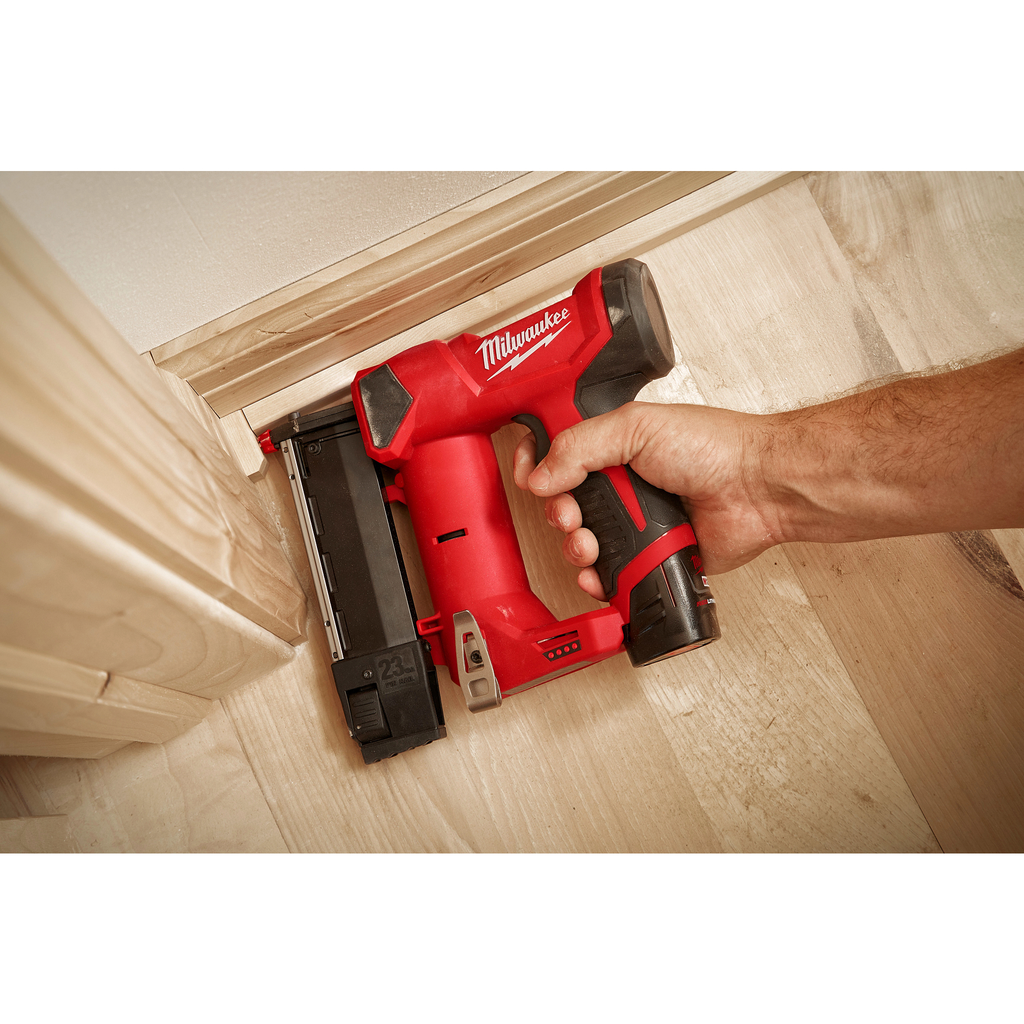

The MILWAUKEE® M12™ 23 Gauge Pin Nailer is the most compact cordless pin nailer, combining precision and power to deliver the performance that professional carpenters and remodelers demand, without the hassle of a compressor hose or gas cartridge. The 23 gauge pin nailer provides unmatched productivity and accessibility into tight spaces and confined corners with a lightweight, ergonomic design. The nitrogen air spring mechanism allows the nailer to consistently sink pin nails at proper depth into hard or softwoods while leaving small, clean nail holes. The double-action trigger and non-marring precision point tip allow for sequential driving and accurate pin placement into delicate trim pieces. The dry-fire lockout feature prevents misfires and workpiece damage. The M12™ Pin Nailer drives 23-gauge headless pin nails ranging in length from 1/2” to 1-3/8” and features all-day run time with up to 750 pin nails per charge when paired with an M12™ REDLITHIUM™ CP1.5 battery pack. This battery-powered pin nailer also features a magazine reload indicator, tool-free drive depth adjustment, reversible belt clip, LED light, battery fuel gauge, secondary work contact tip, and carries an industry-leading 3-year limited power tool warranty.

Features

• (2) Interchangeable, Non-Marring, Precision Point Tips Included
• LED Light for increased visibility
• No Pneumatic Hose or Gas Cartridge
• Reversible Belt Clip
• Tool Free Drive Depth Adjustment
• Fits all M12™ Batteries
• Double-Action Trigger for Sequential Driving
• Compatible with 1/2" to 1-3/8" 23 Gauge Headless Pin Nails
• Magazine Reload Indicator and Dry Fire Lockout Mechanism
• Up to 750 Pin Nails Per Charge

Specifications

• Nailer Type: Finishing
• Number of Batteries Required: 1
• Battery System: M12™
• Color Finish: Black;Red
• Depth: 8.7 Inches
• Power Source: Cordless
• Voltage: 12
• Weight - Battery Installed (lb): 3.8
• Material: Metal
• FUEL: No
• Country of Origin: Vietnam
