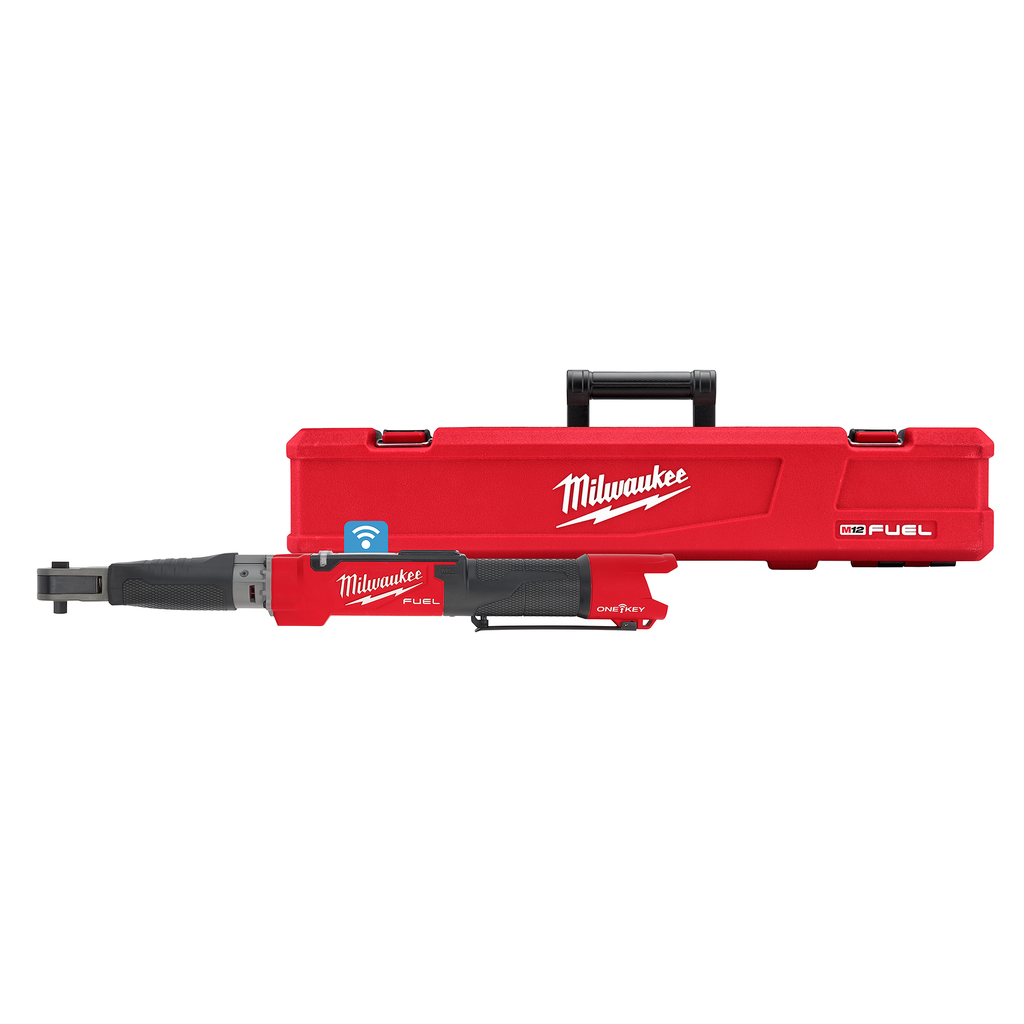

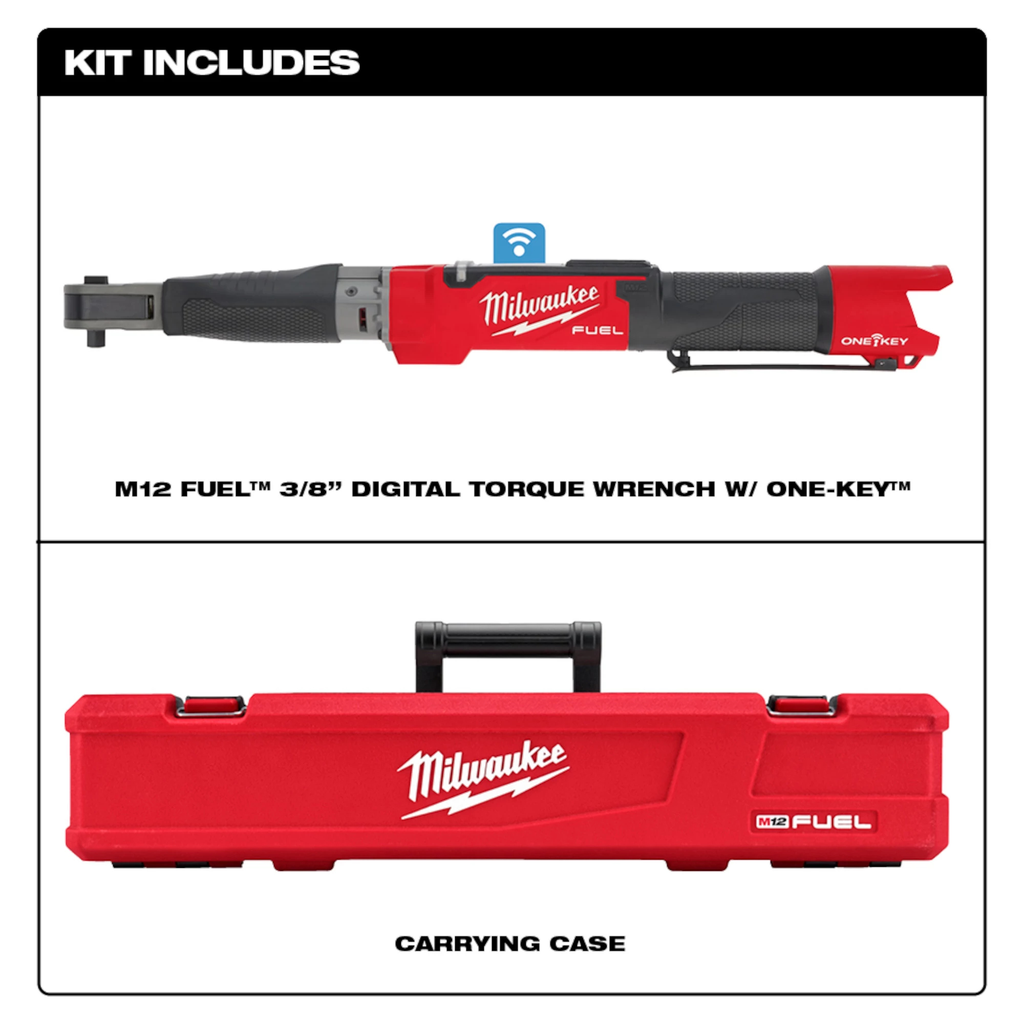

M12 FUEL™ 3/8" Digital Torque Wrench w/ ONE-KEY™

The MILWAUKEE® M12 FUEL™ ⅜” Digital Torque Wrench w/ ONE-KEY™ is the industry's first torque wrench with a motor, delivering increased productivity, precise torque accuracy, and user demanded reporting functionality. The ⅜” torque wrench delivers 50% faster installation time, replacing the hand tool or two tool installation process and providing more control to reduce the over torquing of fasteners.The ⅜” digital torque wrench provides 10-100ft-lbs of torque range and accuracy within 2% for torque critical fasteners. This battery powered torque wrench is equipped with Milwaukee ONE-KEY™ giving users the power to track, report, and manage their tool. This tool will record all of the fasteners that are saved and produce a downloadable report via ONE-KEY™ for the necessary parties requiring the data. ONE-KEY™ allows users to wirelessly connect to a smartphone to customize the tool settings, track its location, manage inventory, and lock the tool out for added security and protection for their investment.

Features

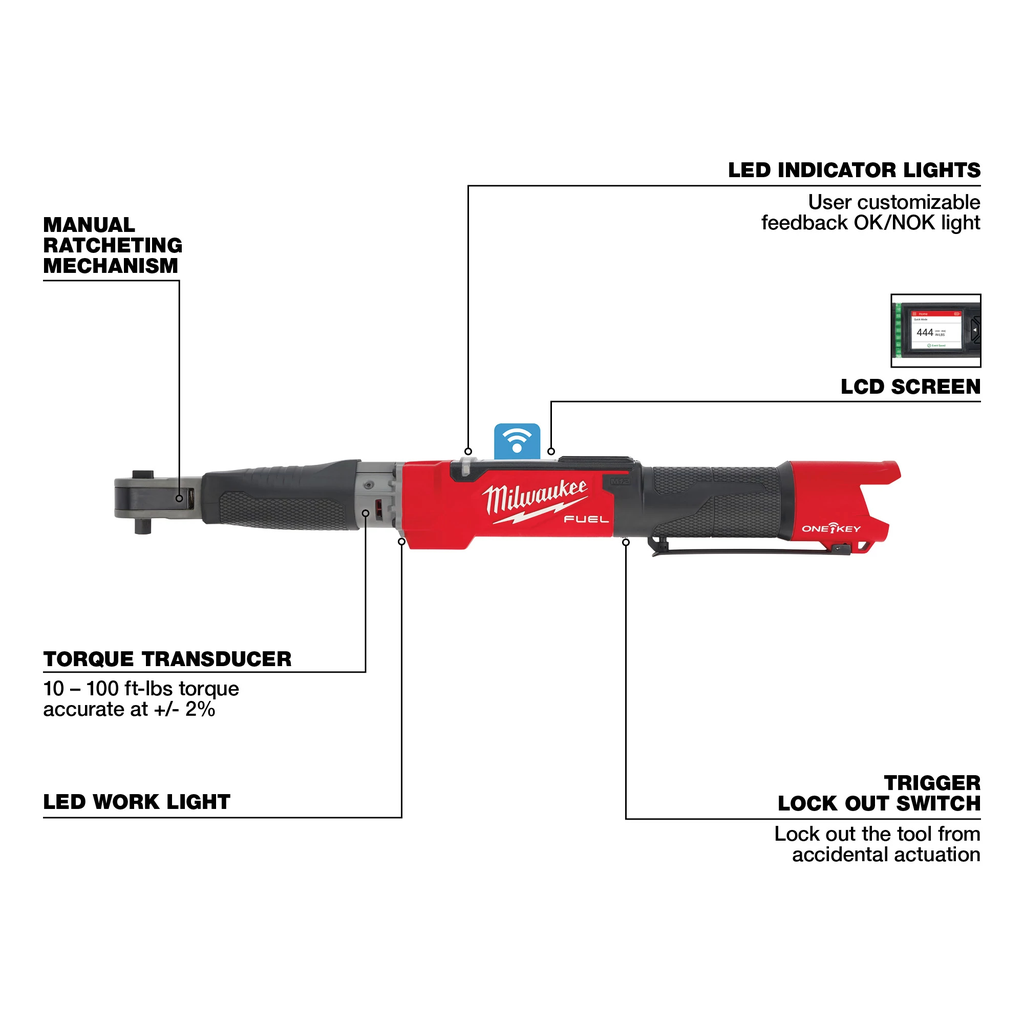

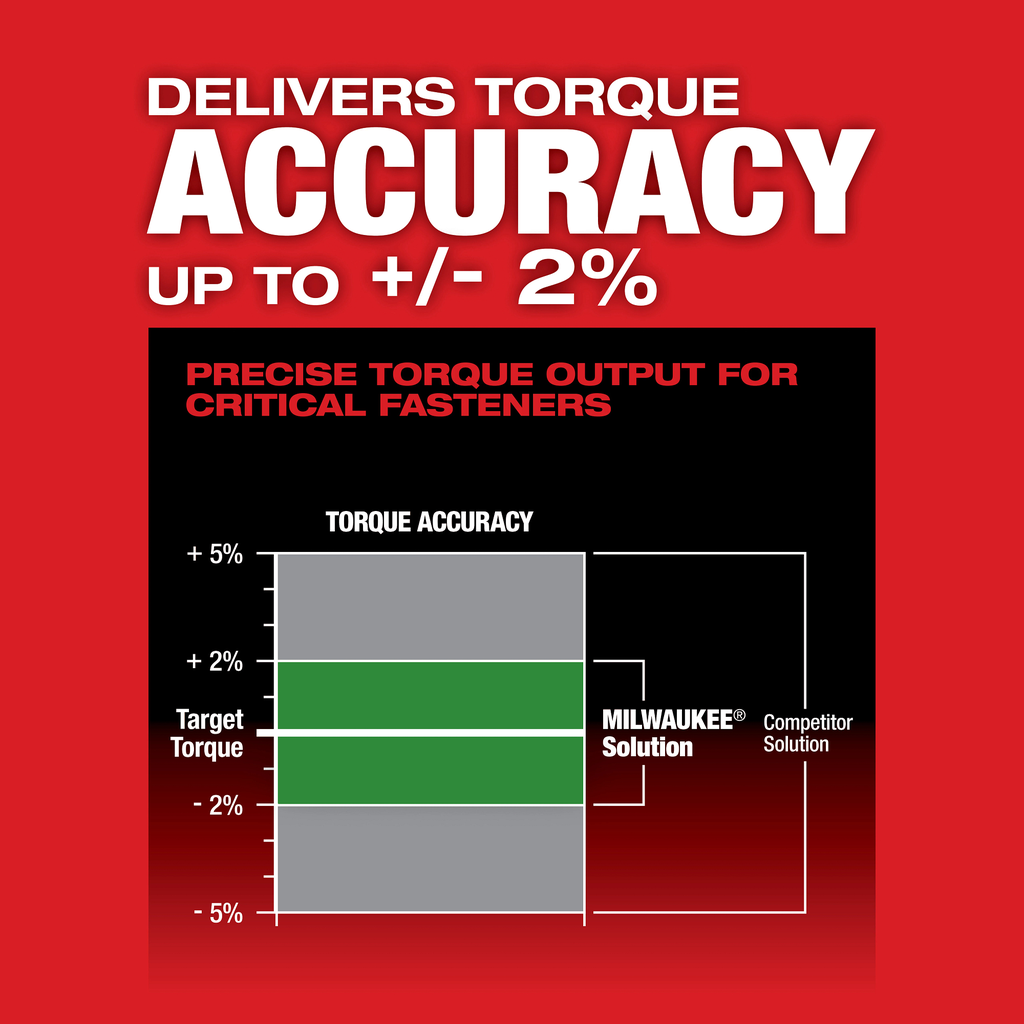

• Precise Torque Accuracy of up to ±2% CW, ±3% CCW of full scale for torque critical fasteners
• REDLINK PLUS™ Electronic Intelligence enables advanced communication between batteries and tools for unmatched performance, protection, and productivity.

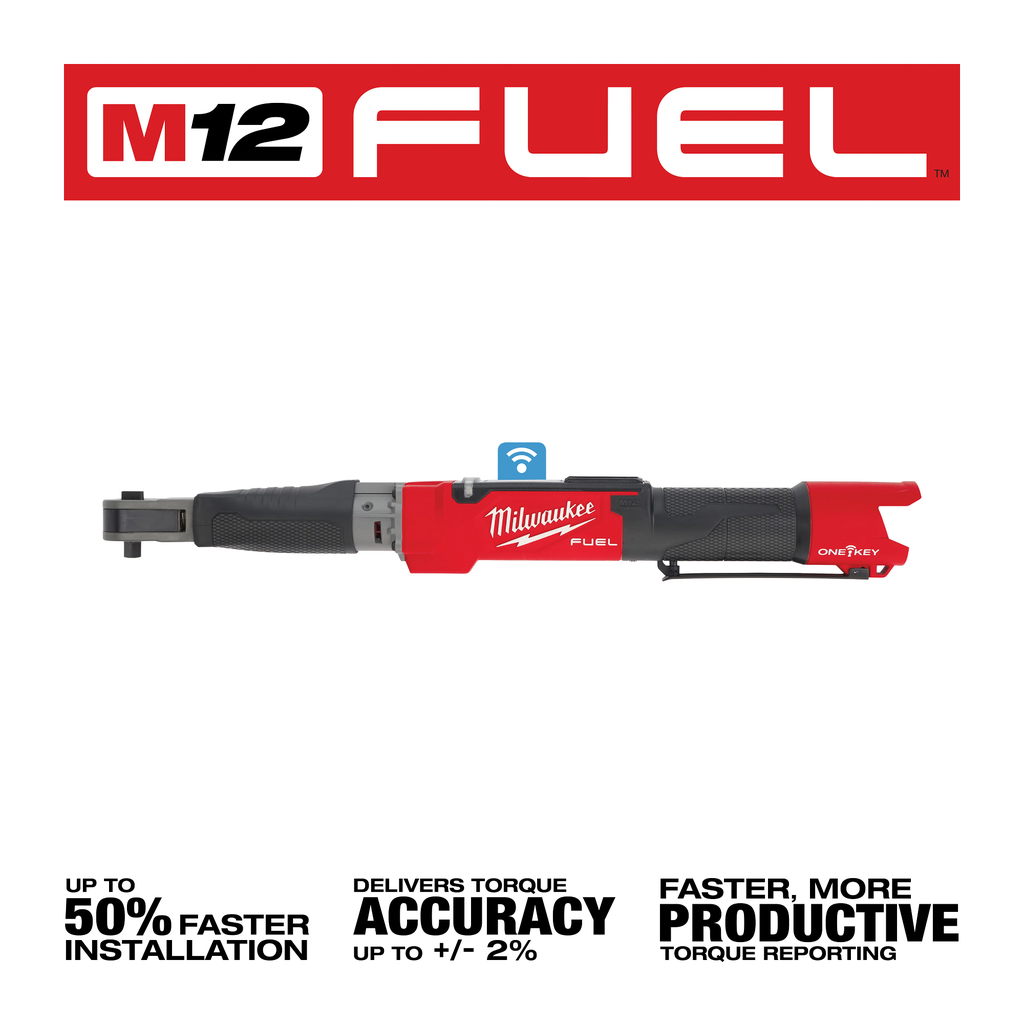

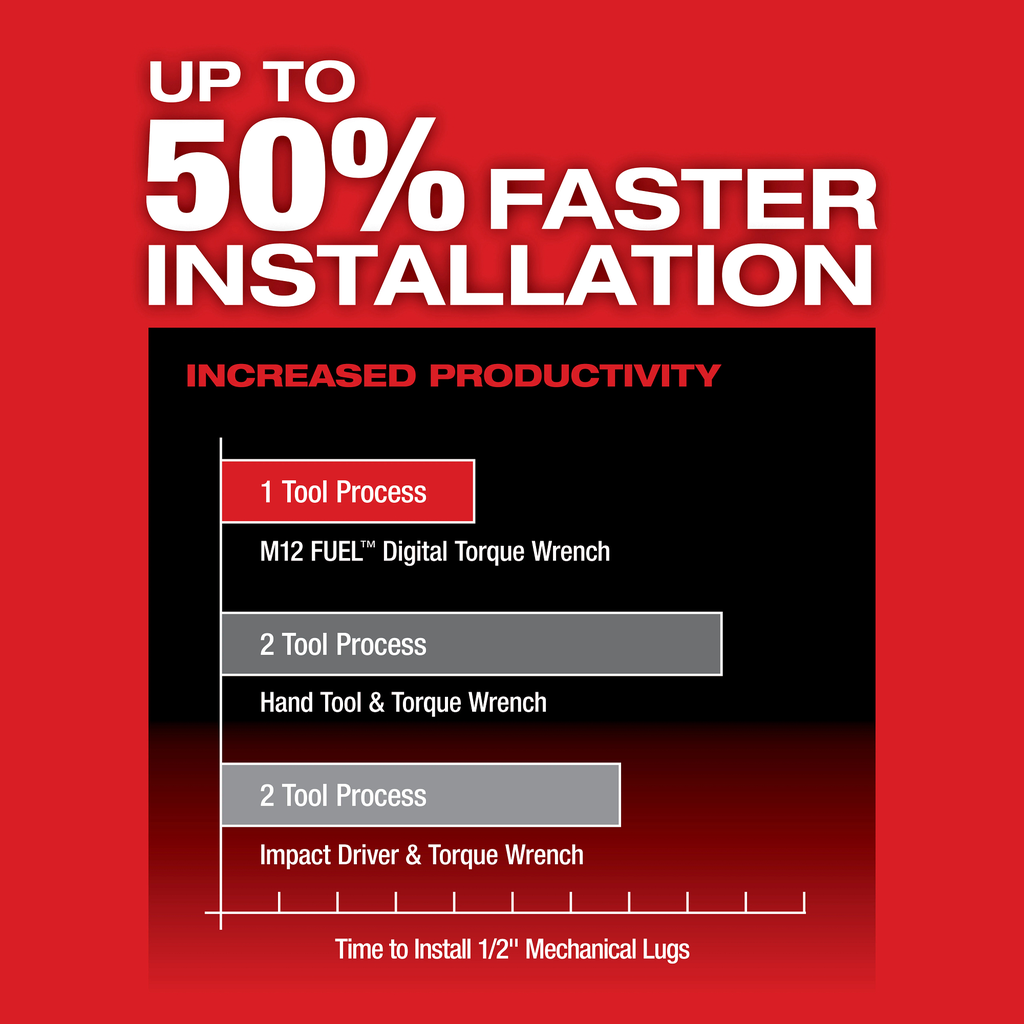

• Delivers up to 50% Faster Installation by replacing the hand tool or two tool installation process with the POWERSTATE™ brushless motor and torque wrench in one tool
• Adjustable run-down torque to control the tools output torque via the motor to prevent over torque
• Compatible with all M12™ batteries & chargers
• Durable design to withstand the most demanding jobsite environments
• Four measurement modes (ft-lb, in-lb, Nm, Kgcm)
• Certificate of tool calibration is valid for 12 months from the date of first use
• Faster, More Productive Torque Reporting w/ ONE-KEY™ providing torque data and customizable reports for inspectors or owners
• Six pre-programmed languages including English, Spanish and French
• REDLITHIUM™ batteries deliver more work per charge and more work over the life of the battery
• ONE-KEY™ technology allows for customization, tracking, tool security, and inventory management
• Four notification modes that the tool is reaching, meeting or exceeding the torque target (audible, LED, LCD, and vibratory)

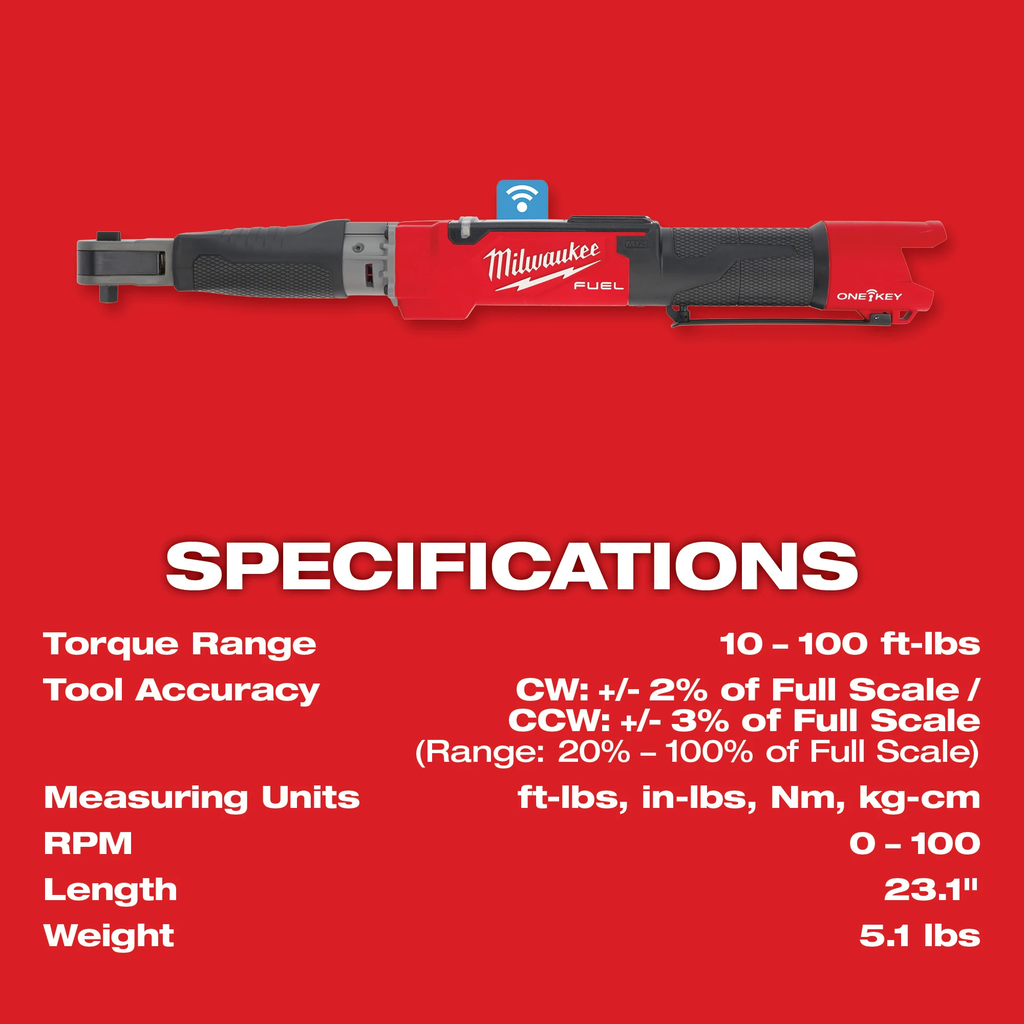

Specifications

• Color Finish: Black;Red;White
• Weight - Battery Installed (lb): 5.5
• Maximum Torque (ft-lbs): 100
• Motor Type: POWERSTATE™ Brushless
• Torque Range: 10 - 100 ft-lbs
• Chuck Type: Not Applicable
• Power Source: Cordless
• ONE-KEY Enabled: Yes
• Badge Branding: FUEL™
• Material: Aluminum
• Brushless Motor: Yes
• Tool Accuracy: CW: +/-2% of Full Scale/ CCW: +/-3% of Full Scale (Range: 20% - 100% of Full Scale)
• Weight Excluding Battery (lb): 5.1
• Country of Origin: China
• Number of Speed Settings: Variable
• Head Profile: 1.14 in
• Number of Batteries Required: 1
• Voltage: 12
• Depth: 23.3 Inches
• Battery System: M12™
• Chuck Size: Not Applicable in
• Measuring Units: ft-lbs, in-lbs, Nm, kg-cm
• Rotations Per Minute Range (RPM): 0 - 100
• Anvil Type: Ball Detent
• Minimum Arc Swing (°): 4.5
• Anvil Size: 3/8 in
• Maximum Torque (in-lbs): 1200
• DRIVE CONTROL: 1-Mode
• FUEL: Yes
• Power Tool Branding: FUEL™
