EBOLT SUPPLY

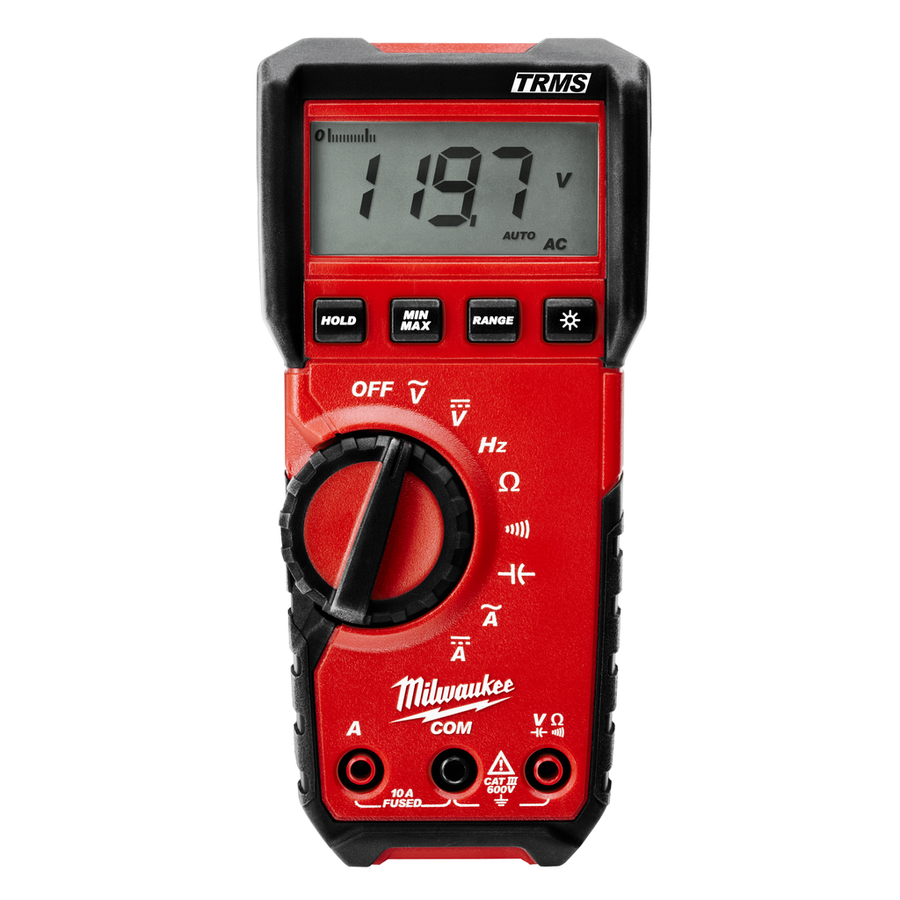

Digital Multimeter

Model 2216-20

$119.00

Available to order

Free shipping on orders over $199. Free local delivery in the Springfield area.

  • ✓ Free shipping over $199Under that, rates are calculated at checkout.
  • ✓ Free local deliverySpringfield area, no minimum.
  • ✓ Full Milwaukee factory warrantyWe are an authorized dealer, so your warranty is valid.
  • ✓ 30-day returnsUnused and in the original box.
  • ✓ Questions? Talk to a person(217) 793-2940 - Mon-Thu 7-4:30, Fri 7-4

Details

Heavy duty True-Rms meter for professional residential, commercial and industrial applications. The perfect tool for the professional commercial or industrial electrician; includes the features that are needed to get the job done in the field, on-site or in the plant. Milwaukee 2216-20 digital multimeter features: true RMS measurement to accurately measure all applications; CATIII 600 V for increased safety in demanding electrical environments; AC voltage range of 6 millivolts to 600 V; DC voltage range of 600 millivolts to 600 V DC; resistance measurement from 600 ohms to 40 m Ohm; frequency measurement from 10 Hz to 50 kilohertz; detects continuity at less than 30 ohms; current measurement to 10 A AC/DC; hold function, min/max function and digital bar graph readout; black on white display and backlight for easier reading; rugged over-molding for improved durability and user grip; proprietary rail system for mounting accessories.

Features

  • Rugged over-molding increases durability and user grip
  • Capacitance to 1000 μF
  • Resistance range from 600 ohm to 40 Mohm
  • Current Measurement to 10A AC/DC
  • Auto Range to mV
  • Wide Voltage range to 600 AC /DC volts
  • CAT III 600V for increased safety
  • Frequency measurements from 10Hz to 50kHz
  • True-RMS for accurate measurement in all applications

Specifications

  • Display Type: Digital
  • Peak Amps (A): 10
  • Number of Batteries Required: 2
  • Country of Origin: Taiwan
  • Color Finish: Black;Red
  • Depth: 10.55 Inches
  • Material: Plastic

Downloads

    Warranty Document
