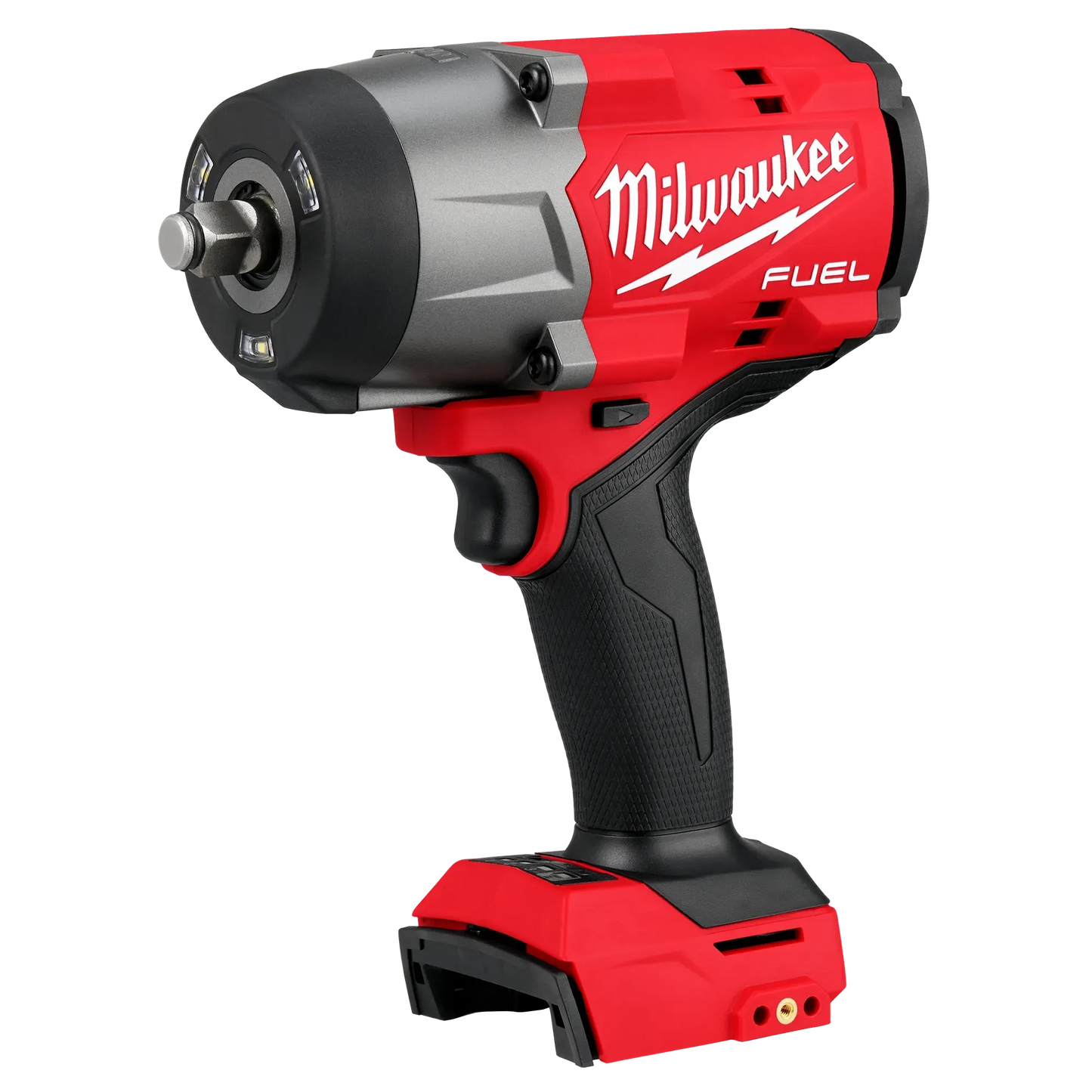

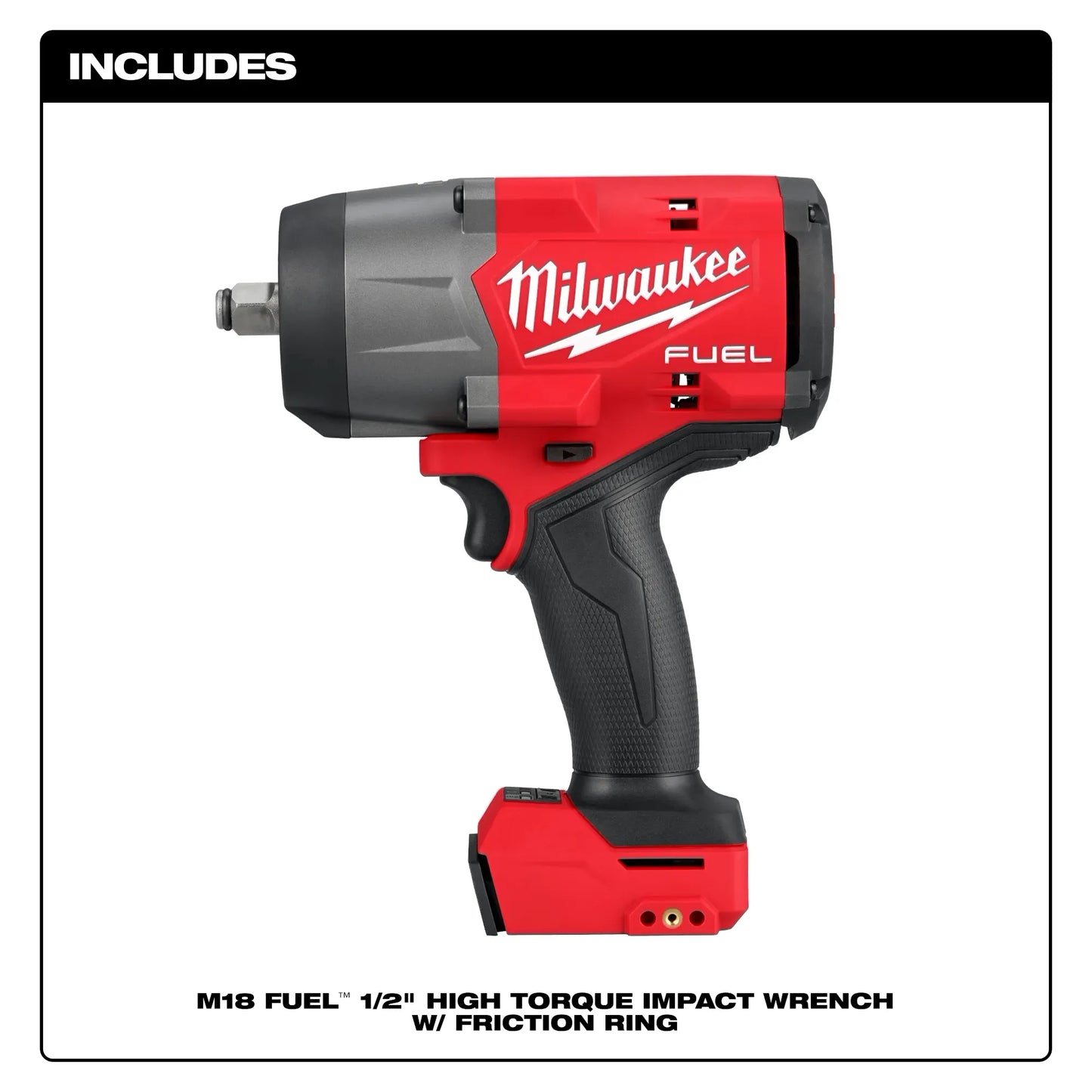

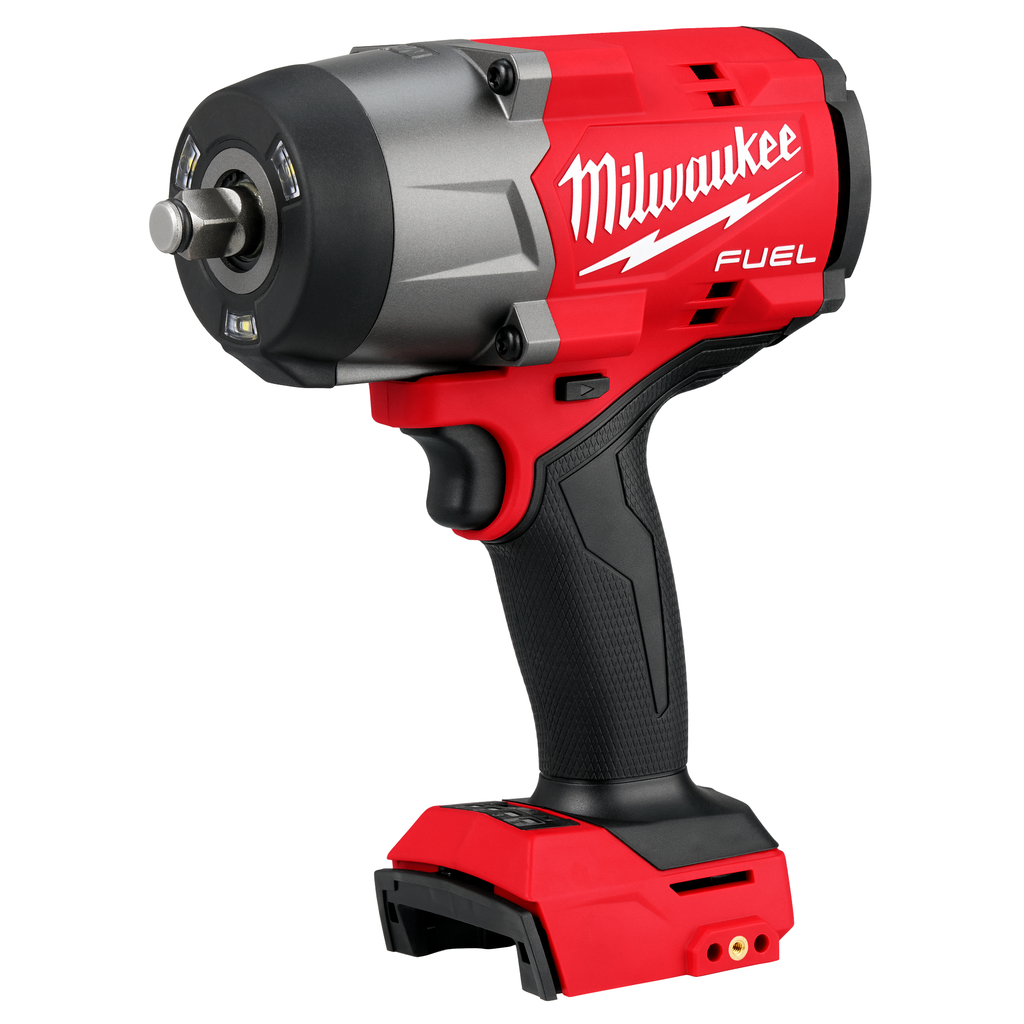

M18 FUEL™ 1/2" High Torque Impact Wrench with Friction

The MILWAUKEE® M18 FUEL™ ½” High Torque Impact Wrench w/ Friction Ring is the most power-dense impact wrench in its class, provides greater access in tight spaces, and maximizes productivity through faster removal speeds. The POWERSTATE™ Brushless Motor delivers up to 1,200 ft-lbs of Fastening Torque and 1,600 ft-lbs of Nut-Busting Torque when paired with the M18™ REDLITHIUM™ FORGE™ Batteries, while the compact size at 7.6" in length gives users greater access in tight spaces. The M18 FUEL™ ½” High Torque Impact Wrench w/ Friction Ring maximizes productivity on the jobsite and in the shop by removing stubborn bolts and fasteners faster than cordless competitors. The patented battery isolation system provides a secure battery connection and controls vibration transmitted to the pack. Tri-LEDs surround the anvil to deliver brighter light with fewer shadows. 4-Mode DRIVE CONTROL™ offers greater precision with a range of pre-set RPM and IPM levels, selectable from a single button on the tool. By selecting Mode 4, AUTO SHUT-OFF™ control applies no more than 50 ft-lbs of torque for hand-tight fastening applications to prevent overtightening. Mode 4 also features Bolt Removal Control that delivers users full torque output, then decreases RPMs once the bolt is loosened to prevent fastener drops. The ½” Friction Ring design allows for quick & tool-free socket changes.

Features

• Quick Friction Ring - Enables fast, tool-free socket changes on the job.

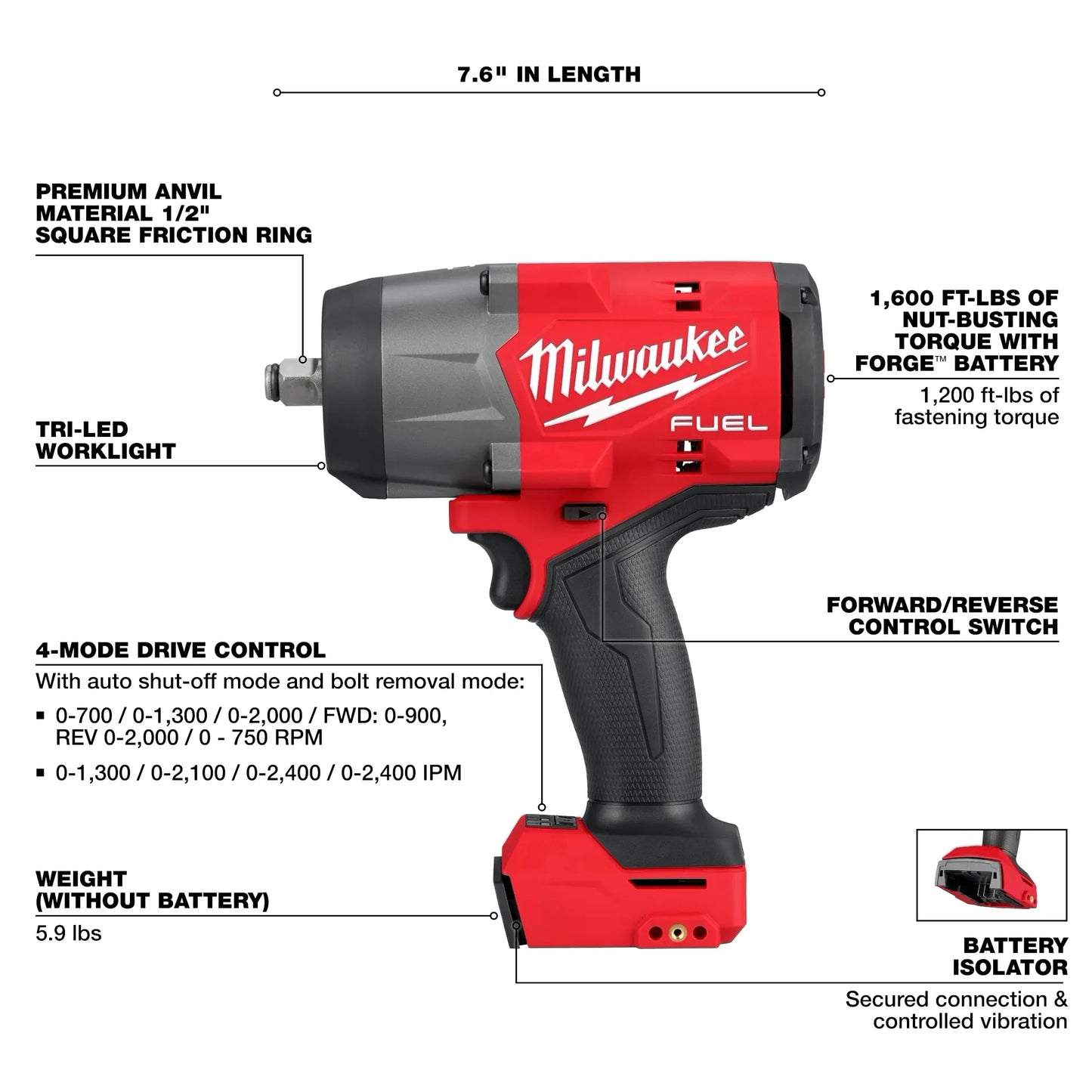

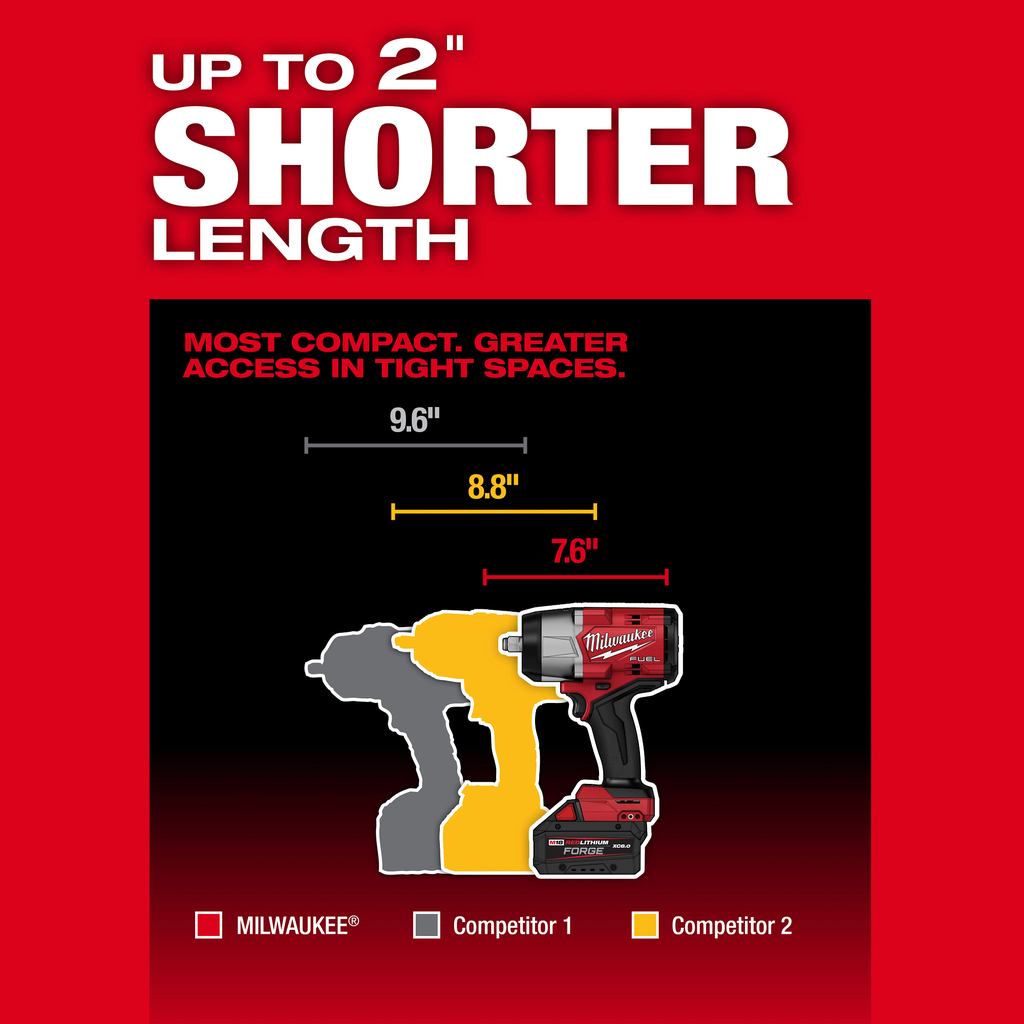

• Compact 7.6" Length - Delivers maximum access in tight spaces with full power.

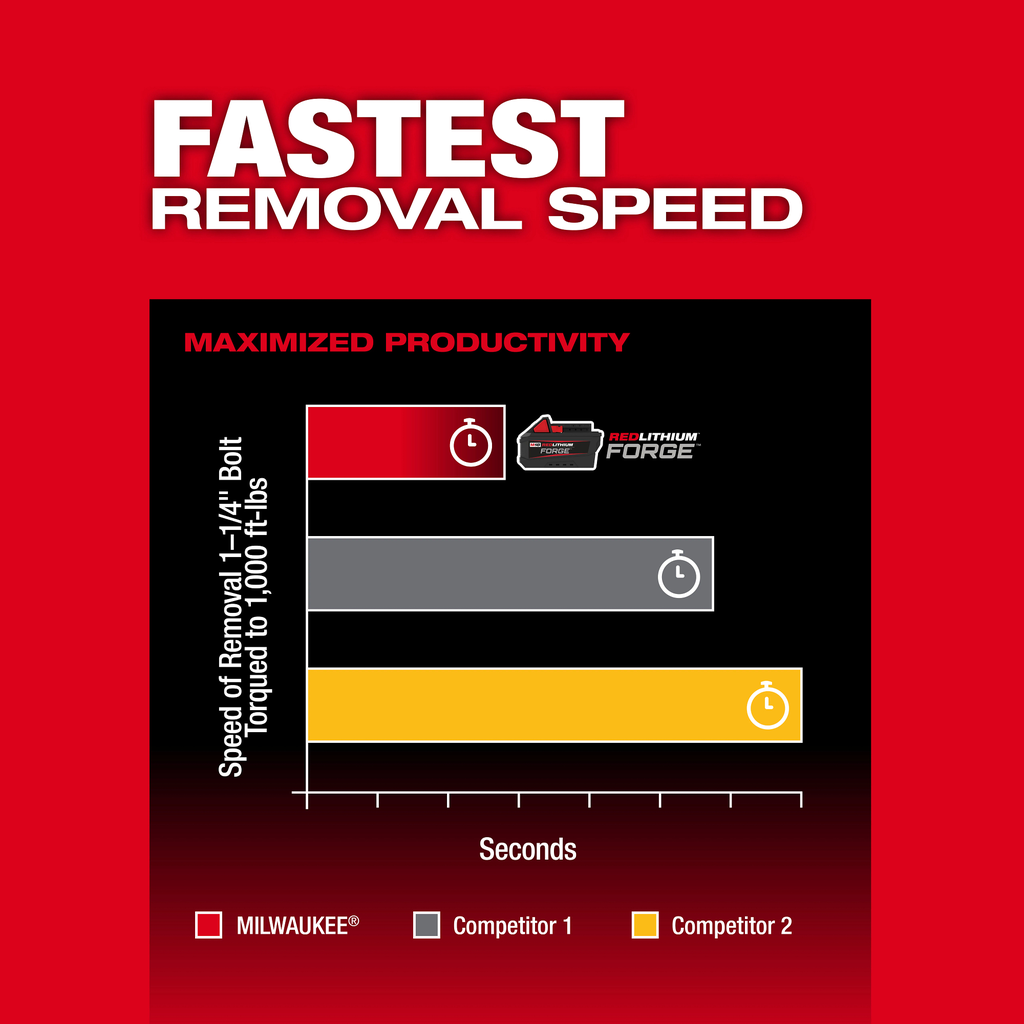

• Fastest Bolt Removal - Increases productivity on the jobsite and in the shop.
• AUTO-SHUTOFF™ Control - Prevents over-tightening with precise 50 ft-lbs torque limit.

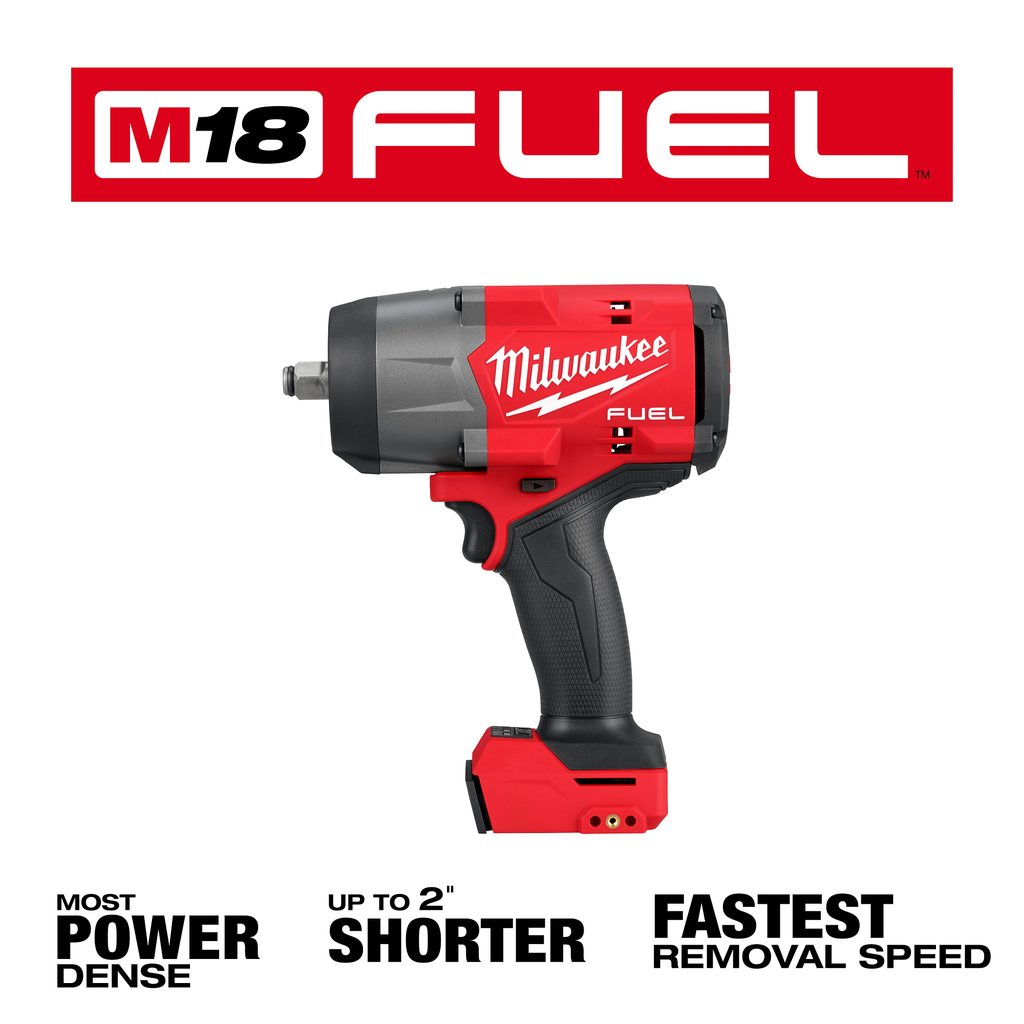

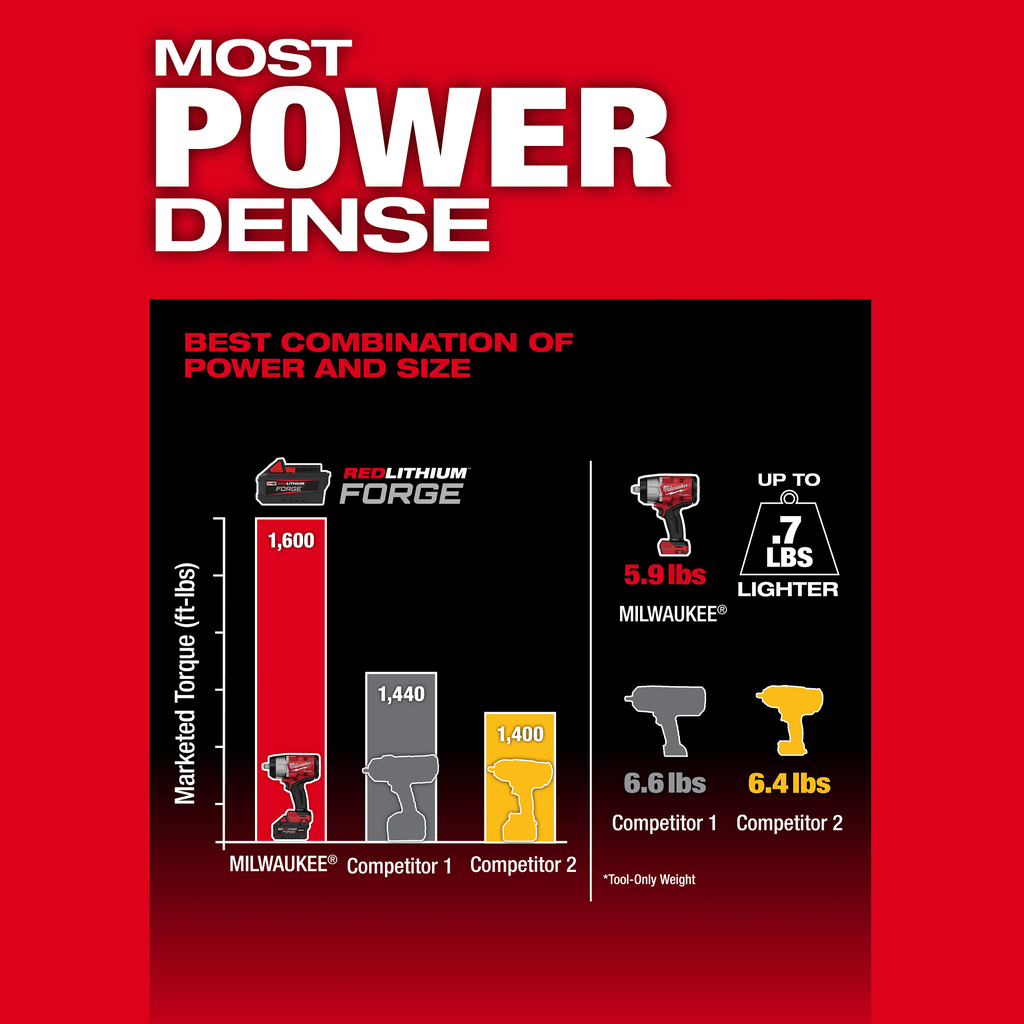

• Most Power-Dense Design - Combines 1,200 ft-lbs fastening and 1,600 ft-lbs nut-busting torque.
• POWERSTATE™ Brushless Motor - Provides unmatched power and durability under heavy load.
• Tri-LED Lighting System - Delivers high-definition visibility with minimal shadows.
• REDLINK PLUS™ Intelligence - Protects from overload, heat, and over-discharge.
• Bolt Removal Mode - Breaks stubborn bolts loose, then slows for controlled removal.
• Patented Battery Isolation System - Ensures secure pack connection and reduces vibration.
• 4-Mode DRIVE CONTROL™ - Offers precision speed and torque for any fastening task.
• M18™ REDLITHIUM™ System - Compatible with all M18™ batteries and chargers.

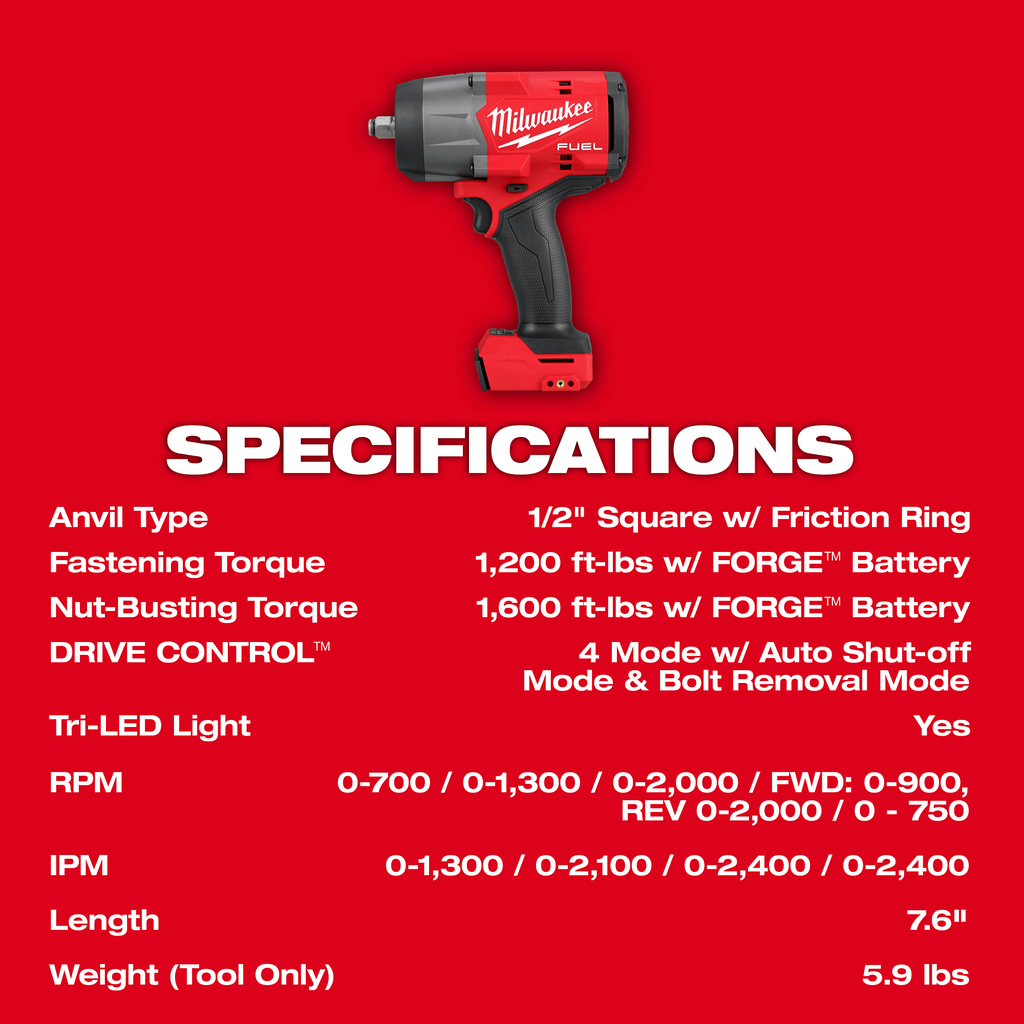

Specifications

• DRIVE CONTROL: 4-Mode w/ Auto Shut-Off Mode & Bolt Removal Mode
• Chuck Size: Not Applicable in
• Color Finish: Black;Red
• Number of Batteries Required: 1
• Country of Origin: Vietnam
• Power Source: Cordless
• Chuck Type: Not Applicable
• Rotations Per Minute Range (RPM): 0 - 2,000
• Voltage: 18
• Battery System: M18™
• Badge Branding: FUEL™
• Anvil Size: 1/2 in
• Motor Type: POWERSTATE™ Brushless
• Weight Excluding Battery (lb): 5.9
• Anvil Type: Friction Ring
• Wrench Type: High Torque
• Power Tool Branding: FUEL™
• Depth: 7.6 Inches
• Impacts Per Minute Range (IPM): 0 - 2,400
• ONE-KEY Enabled: No
• FUEL: Yes
• Material: Metal
• Fastening Torque: 1200
